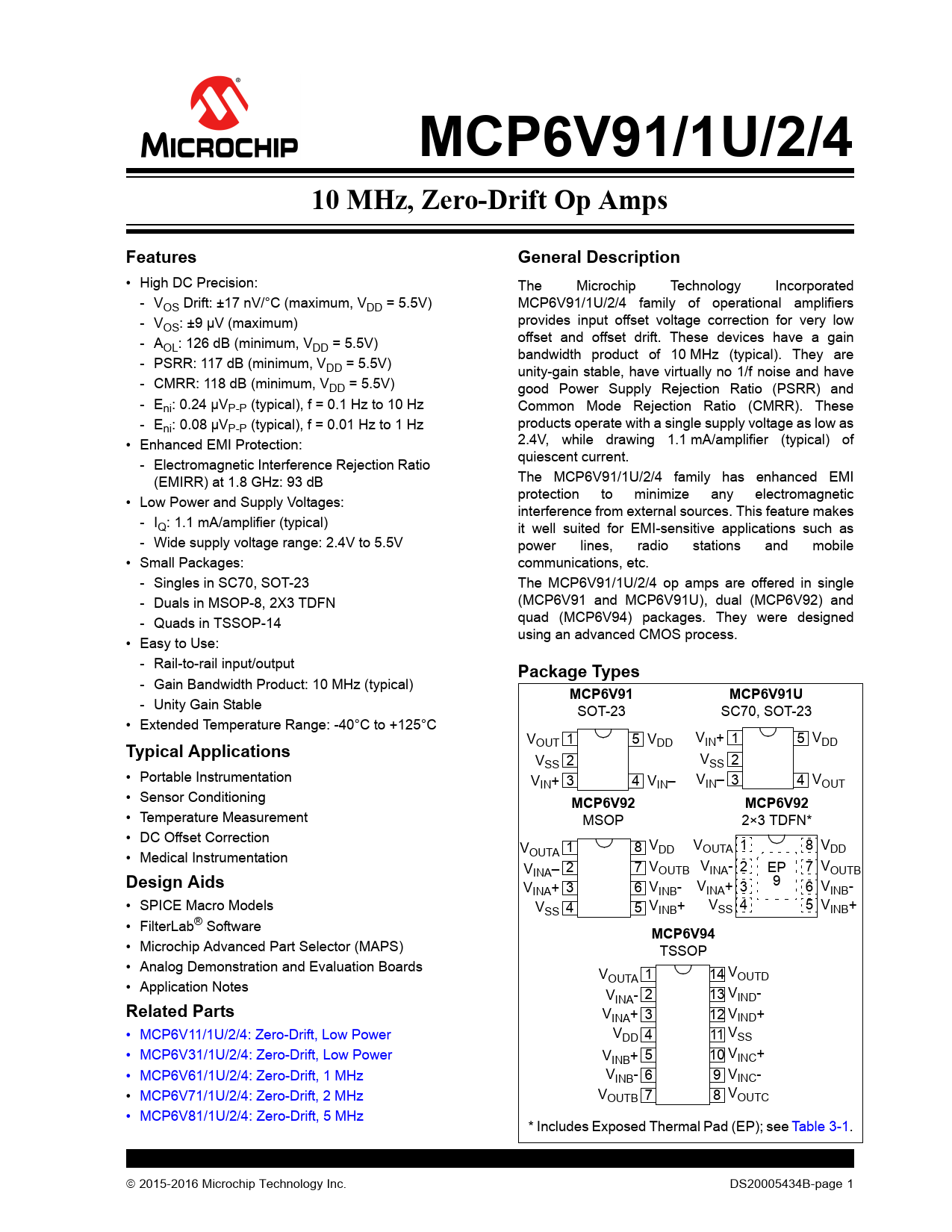

MCP6V91/1U/2/4 10 MHz, Zero-Drift Op Amps Features General Description
• High DC Precision: The Microchip Technology Incorporated - VOS Drift: ±17 nV/°C (maximum, VDD = 5.5V) MCP6V91/1U/2/4 family of operational amplifiers - V provides input offset voltage correction for very low OS: ±9 µV (maximum) - A offset and offset drift. These devices have a gain OL: 126 dB (minimum, VDD = 5.5V) bandwidth product of 10 MHz (typical). They are - PSRR: 117 dB (minimum, VDD = 5.5V) unity-gain stable, have virtually no 1/f noise and have - CMRR: 118 dB (minimum, VDD = 5.5V) good Power Supply Rejection Ratio (PSRR) and - Eni: 0.24 µVP-P (typical), f = 0.1 Hz to 10 Hz Common Mode Rejection Ratio (CMRR). These - Eni: 0.08 µVP-P (typical), f = 0.01 Hz to 1 Hz products operate with a single supply voltage as low as • Enhanced EMI Protection: 2.4V, while drawing 1.1 mA/amplifier (typical) of quiescent current. - Electromagnetic Interference Rejection Ratio (EMIRR) at 1.8 GHz: 93 dB The MCP6V91/1U/2/4 family has enhanced EMI protection to minimize any electromagnetic • Low Power and Supply Voltages: interference from external sources. This feature makes - IQ: 1.1 mA/amplifier (typical) it wel suited for EMI-sensitive applications such as - Wide supply voltage range: 2.4V to 5.5V power lines, radio stations and mobile • Smal Packages: communications, etc. - Singles in SC70, SOT-23 The MCP6V91/1U/2/4 op amps are offered in single - Duals in MSOP-8, 2X3 TDFN (MCP6V91 and MCP6V91U), dual (MCP6V92) and - Quads in TSSOP-14 quad (MCP6V94) packages. They were designed using an advanced CMOS process. • Easy to Use: - Rail-to-rail input/output
Package Types
- Gain Bandwidth Product: 10 MHz (typical)
MCP6V91 MCP6V91U
- Unity Gain Stable SOT-23 SC70, SOT-23 • Extended Temperature Range: -40°C to +125°C VOUT 1 5 V VIN+ 1 5 V
Typical Applications
DD DD VSS 2 VSS 2 • Portable Instrumentation VIN+ 3 4 VIN– VIN– 3 4 VOUT • Sensor Conditioning
MCP6V92 MCP6V92
• Temperature Measurement MSOP 2×3 TDFN* • DC Offset Correction V 1 8 V VOUTA 1 8 VDD • Medical Instrumentation OUTA DD V 2 7 VOUTB VINA- 2 EP 7 VOUTB
Design Aids
INA– V 9 INA+ 3 6 VINB- VINA+ 3 6 VINB- • SPICE Macro Models V V 4 5 V SS 4 5 VINB+ SS INB+ • FilterLab® Software
MCP6V94
• Microchip Advanced Part Selector (MAPS) TSSOP • Analog Demonstration and Evaluation Boards V 1 14 VOUTD • Application Notes OUTA V V INA- 2 13 IND-
