ATtiny24A/44A. Table 2-6. Symbol. Parameter. Condition. Min. Typ. Max. Units

ATtiny24A/44A Table 2-6 Symbol Parameter Condition Min Typ Max Units

该数据表的模型线

文件文字版本

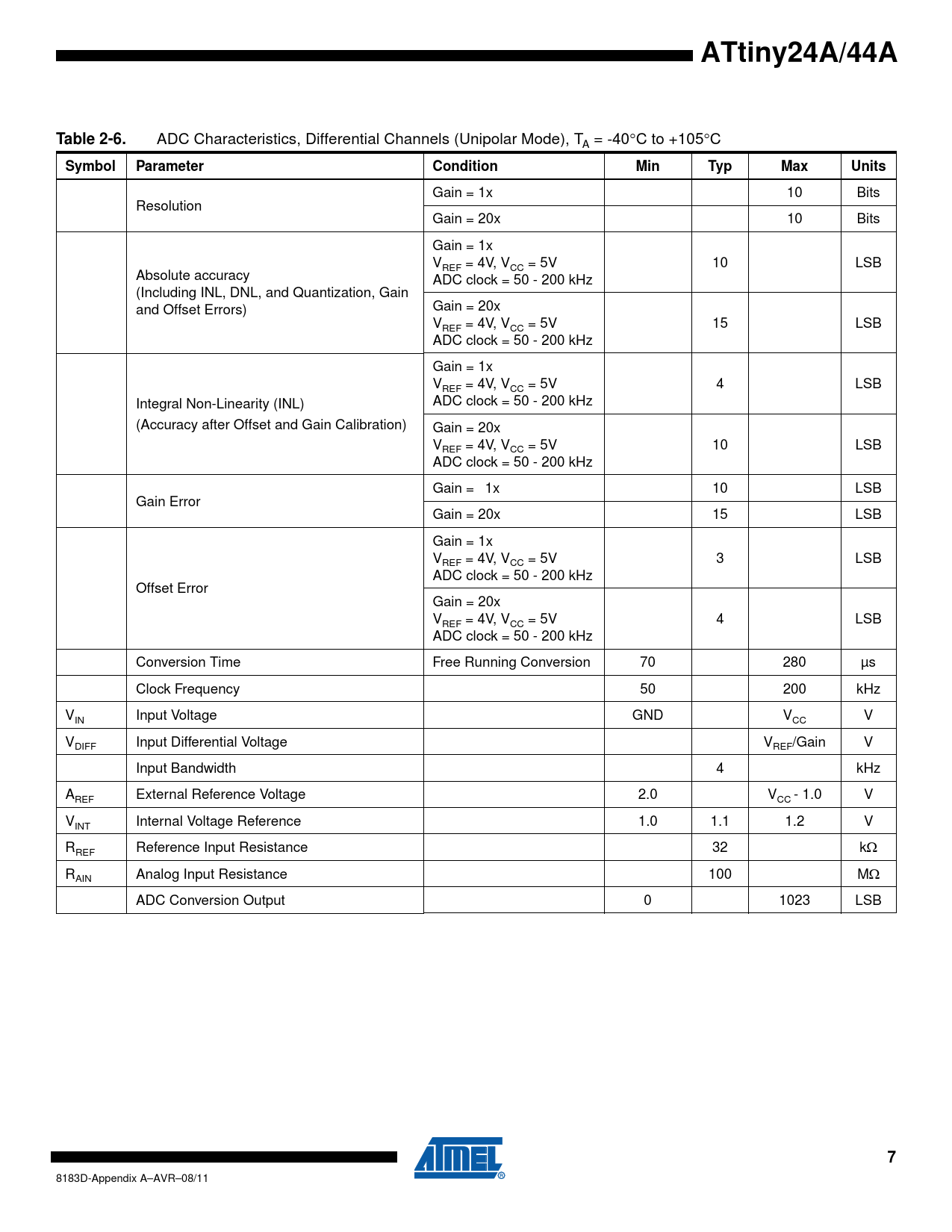

ATtiny24A/44A Table 2-6.
ADC Characteristics, Differential Channels (Unipolar Mode), T = -40°C to +105°C A
Symbol Parameter Condition Min Typ Max Units
Gain = 1x 10 Bits Resolution Gain = 20x 10 Bits Gain = 1x VREF = 4V, VCC = 5V 10 LSB Absolute accuracy ADC clock = 50 - 200 kHz (Including INL, DNL, and Quantization, Gain and Offset Errors) Gain = 20x VREF = 4V, VCC = 5V 15 LSB ADC clock = 50 - 200 kHz Gain = 1x VREF = 4V, VCC = 5V 4 LSB Integral Non-Linearity (INL) ADC clock = 50 - 200 kHz (Accuracy after Offset and Gain Calibration) Gain = 20x VREF = 4V, VCC = 5V 10 LSB ADC clock = 50 - 200 kHz Gain = 1x 10 LSB Gain Error Gain = 20x 15 LSB Gain = 1x V = 4V, V = 5V 3 LSB REF CC ADC clock = 50 - 200 kHz Offset Error Gain = 20x V = 4V, V = 5V 4 LSB REF CC ADC clock = 50 - 200 kHz Conversion Time Free Running Conversion 70 280 µs Clock Frequency 50 200 kHz VIN Input Voltage GND VCC V V Input Differential Voltage V /Gain V DIFF REF Input Bandwidth 4 kHz AREF External Reference Voltage 2.0 VCC - 1.0 V V Internal Voltage Reference 1.0 1.1 1.2 V INT R Reference Input Resistance 32 kΩ REF RAIN Analog Input Resistance 100 MΩ ADC Conversion Output 0 1023 LSB
7
