Datasheet MIC4043 (Micrel) - 2
| 制造商 | Micrel |
| 描述 | Low-Voltage, Secondary-Side Shunt Regulator |
| 页数 / 页 | 14 / 2 — Micrel, Inc. MIC4043 Ordering Information |
| 修订版 | 11-05-2015 |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |
Micrel, Inc. MIC4043 Ordering Information
该数据表的模型线
文件文字版本

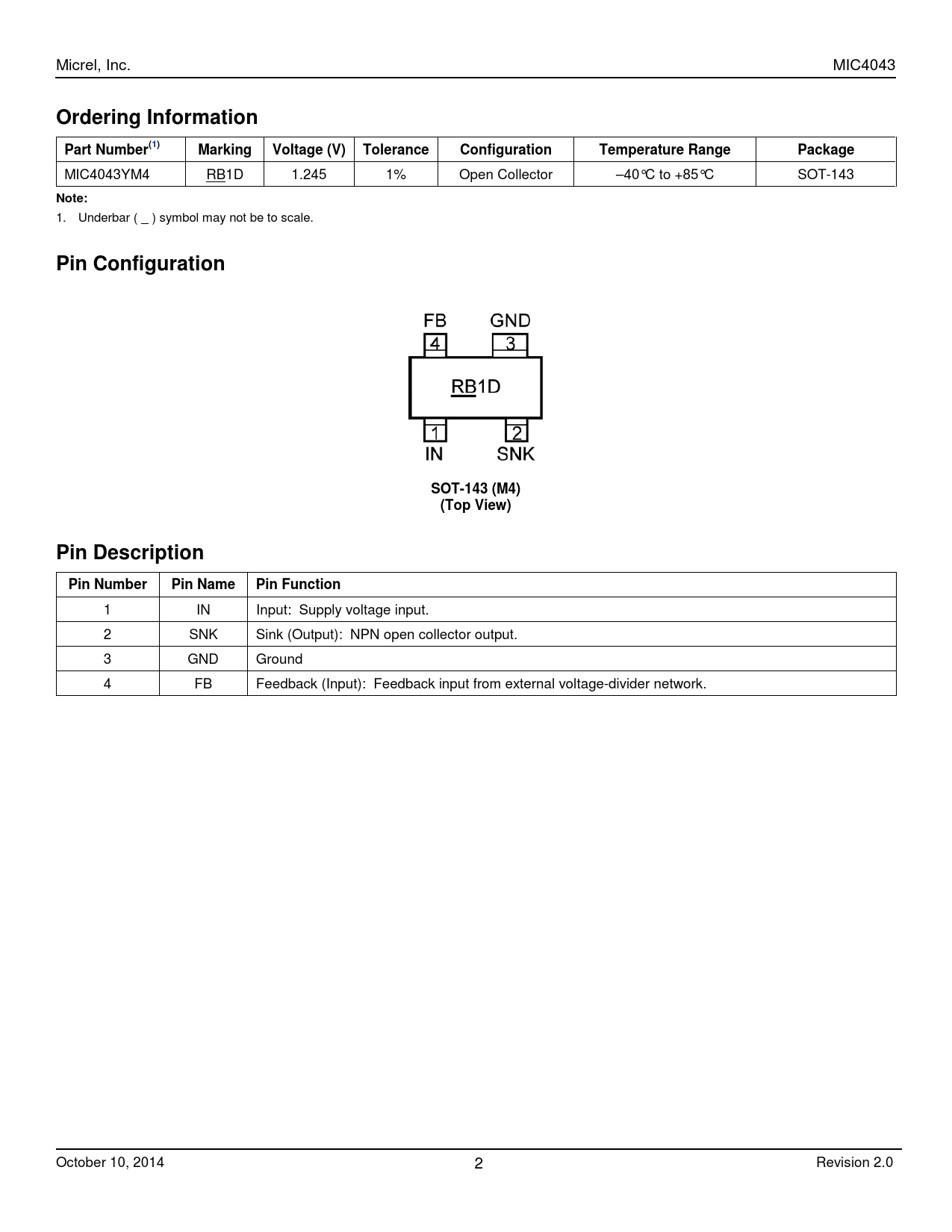

Micrel, Inc. MIC4043 Ordering Information
(1) Part Number Marking Voltage (V) Tolerance Configuration Temperature Range Package MIC4043YM4 RB1D 1.245 1% Open Collector –40°C to +85°C SOT-143 Note:
1. Underbar ( ) symbol may not be to scale. Pin Configuration SOT-143 (M4)
(Top View) Pin Description
Pin Number Pin Name 1 IN 2 SNK Sink (Output): NPN open collector output. 3 GND Ground 4 FB October 10, 2014 Pin Function
Input: Supply voltage input. Feedback (Input): Feedback input from external voltage-divider network. 2 Revision 2.0
(1) Part Number Marking Voltage (V) Tolerance Configuration Temperature Range Package MIC4043YM4 RB1D 1.245 1% Open Collector –40°C to +85°C SOT-143 Note:
1. Underbar ( ) symbol may not be to scale. Pin Configuration SOT-143 (M4)
(Top View) Pin Description
Pin Number Pin Name 1 IN 2 SNK Sink (Output): NPN open collector output. 3 GND Ground 4 FB October 10, 2014 Pin Function
Input: Supply voltage input. Feedback (Input): Feedback input from external voltage-divider network. 2 Revision 2.0
