LND01. TEMPERATURE SPECIFICATIONS. Electrical Characteristics:. Parameter. Sym. Min. Typ. Max. Unit. Conditions. TEMPERATURE RANGE
该数据表的模型线
文件文字版本
link to page 3

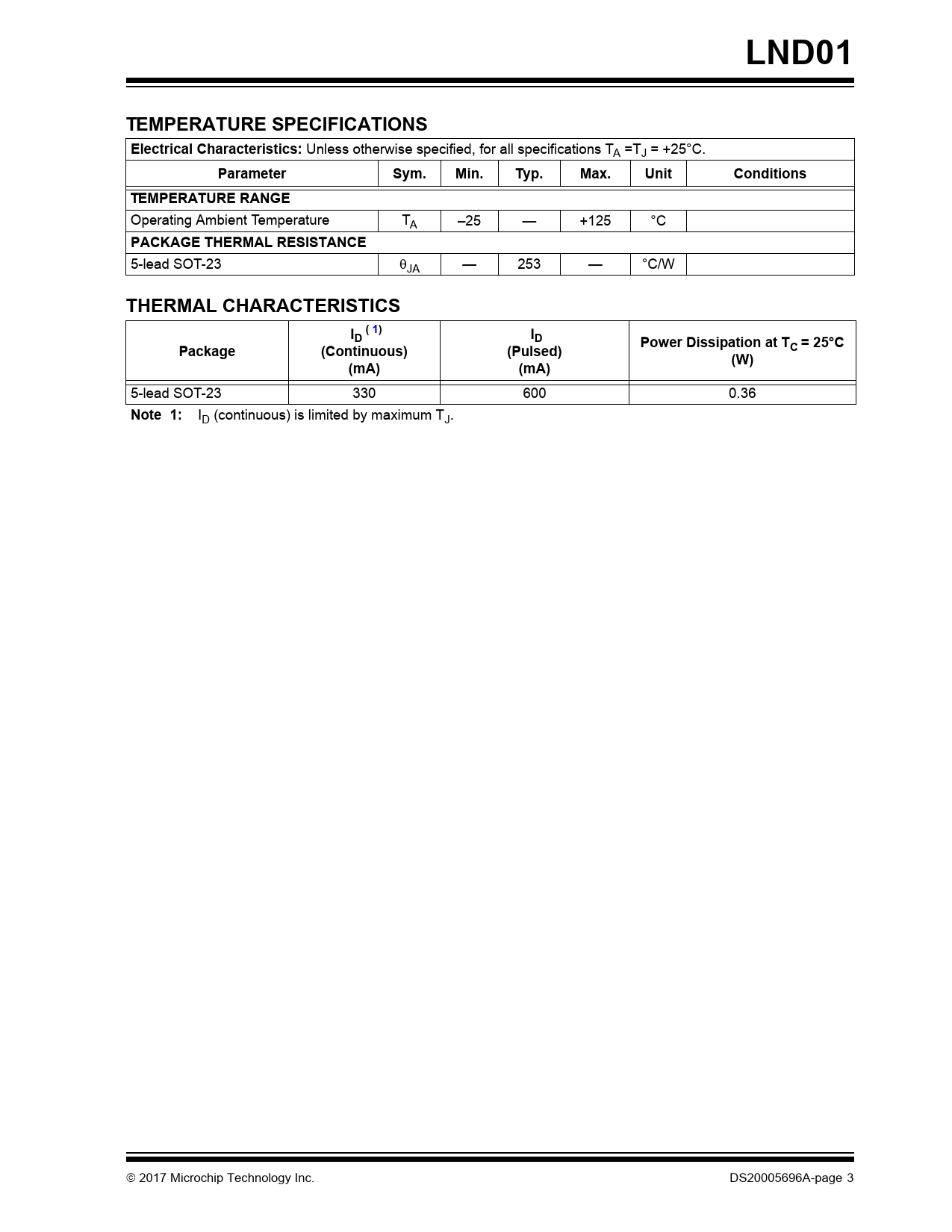

LND01 TEMPERATURE SPECIFICATIONS Electrical Characteristics:
Unless otherwise specified, for all specifications TA =TJ = +25°C.
Parameter Sym. Min. Typ. Max. Unit Conditions TEMPERATURE RANGE
Operating Ambient Temperature TA –25 — +125 °C
PACKAGE THERMAL RESISTANCE
5-lead SOT-23 JA — 253 — °C/W
THERMAL CHARACTERISTICS I ( 1 ) D ID Power Dissipation at T Package (Continuous) (Pulsed) C = 25°C (W) (mA) (mA)
5-lead SOT-23 330 600 0.36
Note 1:
ID (continuous) is limited by maximum TJ. 2017 Microchip Technology Inc. DS20005696A-page 3 Document Outline 1.0 Electrical Characteristics 2.0 Pin Description TABLE 2-1: Pin Function Table 3.0 Functional Description FIGURE 3-1: Switching Waveforms and Test Circuit. TABLE 3-1: Product Summary 4.0 Packaging Information 4.1 Package Marking Information
