Datasheet LND01 (Microchip) - 6

制造商Microchip
描述Lateral N-Channel Depletion-Mode MOSFET
页数 / 页12 / 6 — LND01. 4.0. PACKAGING INFORMATION. 4.1. Package Marking Information. …
文件格式/大小PDF / 552 Kb
文件语言英语

LND01. 4.0. PACKAGING INFORMATION. 4.1. Package Marking Information. Legend:. Note

LND01 4.0 PACKAGING INFORMATION 4.1 Package Marking Information Legend: Note

该数据表的模型线

文件文字版本

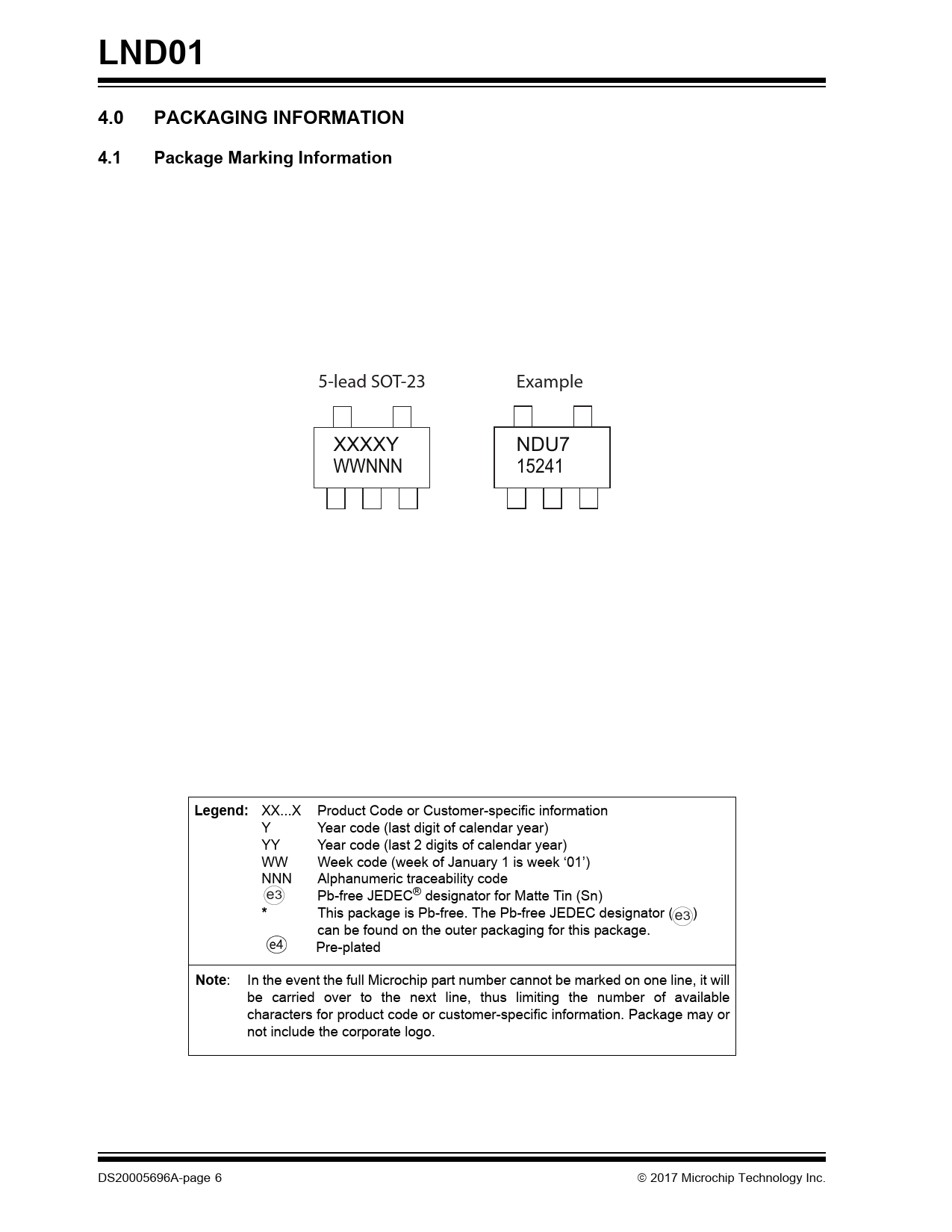

LND01 4.0 PACKAGING INFORMATION 4.1 Package Marking Information
5-lead SOT-23 Example XXXXY NDU7 WWNNN 15241
Legend:
XX...X Product Code or Customer-specific information Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week ‘01’) NNN Alphanumeric traceability code Pb-free e3 JEDEC® designator for Matte Tin (Sn)
*
This package is Pb-free. The Pb-free JEDEC designator ( ) e3 can be found on the outer packaging for this package. Pre-plated
Note
: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for product code or customer-specific information. Package may or not include the corporate logo. DS20005696A-page 6  2017 Microchip Technology Inc. Document Outline 1.0 Electrical Characteristics 2.0 Pin Description TABLE 2-1: Pin Function Table 3.0 Functional Description FIGURE 3-1: Switching Waveforms and Test Circuit. TABLE 3-1: Product Summary 4.0 Packaging Information 4.1 Package Marking Information
