Datasheet LTC4307-1 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | High Definition Multimedia Interface (HDMI) Level-Shifting 2-Wire Bus Buffer |
| 页数 / 页 | 12 / 4 — TIMING DIAGRAMS. ENABLE, CONNECT, READY Timing |
| 文件格式/大小 | PDF / 167 Kb |
| 文件语言 | 英语 |
TIMING DIAGRAMS. ENABLE, CONNECT, READY Timing
该数据表的模型线
文件文字版本
LTC4307-1

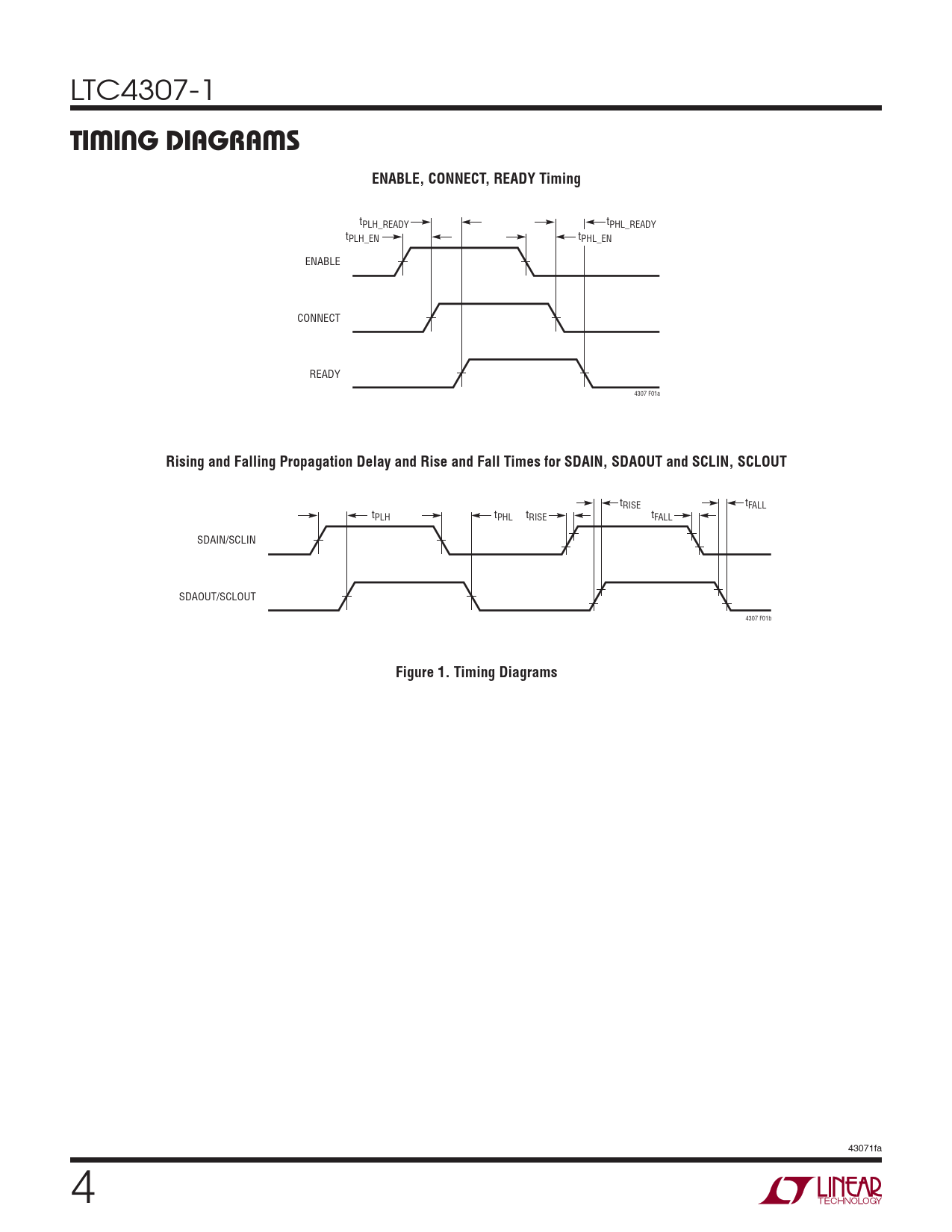

TIMING DIAGRAMS ENABLE, CONNECT, READY Timing
tPLH_READY tPHL_READY tPLH_EN tPHL_EN ENABLE CONNECT READY 4307 F01a
Rising and Falling Propagation Delay and Rise and Fall Times for SDAIN, SDAOUT and SCLIN, SCLOUT
tRISE tFALL tPLH tPHL tRISE tFALL SDAIN/SCLIN SDAOUT/SCLOUT 4307 F01b
Figure 1. Timing Diagrams
43071fa 4
