LTC4313-1/LTC4313-2/ LTC4313-3
applicaTions inForMaTion
of the LTC4313-1 and LTC4313-2 must be greater than
Input to Output Offset Voltage
or equal to 0.9•VCC. An example is shown in Figure 3 While propagating a logic low voltage on its SDA and SCL where the input bus voltage is greater than VCC. During a pins, the LTC4313 introduces a positive offset voltage rising edge, the input bus rise rate will be accelerated by between the input and output. When a logic low voltage the RTA up to a voltage of 2.97V after which the bus rise ≥200mV is driven on any of the LTC4313’s clock or data rate will reduce to a value that is determined by the bus pins, the LTC4313 regulates the voltage on the opposite current and bus capacitance. The RTA turn-off voltage is side to a slightly higher value. This is illustrated in Equa- less than the bus supply and the bus is not overdriven. tion 3, which uses SDA as an example:
Pull-Up Resistor Value Selection
V To guarantee that the RTAs are activated during a rising V DD,BUS SDAOUT = VSDAIN + 50mV + 15Ω • (3) edge, the bus must rise on its own with a positive slew rate RBUS of at least 0.4V/µs. To achieve this, choose a maximum R In Equation 3, VDD,BUS is the output bus supply voltage BUS using the formula: and RBUS is the SDAOUT bus pull-up resistance. (VDD,BUS(MIN) − VRTA(TH)) For driven logic low voltages < 200mV Equation 3 does RBUS ≤ V not apply as the saturation voltage of the open collector 0.4 • C (1) BUS output transistor results in a higher offset. For a driven input µs logic low voltage below 220mV, the output is guaranteed RBUS is the pull-up resistor, VDD,BUS(MIN) is the minimum to be below a V bus pull-up supply voltage, V OL of 400mV for bus pull-up currents up to RTA(TH) is the voltage at which 4mA. See the Typical Performance Characteristics section the RTA turns on and CBUS is the equivalent bus capaci- for offset variation as a function of the driven logic low tance. RBUS must also be large enough to guarantee that: voltage and bus pull-up current. (V ) R DD,BUS(MAX) − 0.4V (2) BUS ≥ 4mA This criterion ensures that the maximum bus current is less than 4mA. 5V 3.3V C1 V R1 R2 0.01µF CC R3 R4 R5 10k 10k 10k 10k 10k LTC4313-1 ENABLE READY READY SCL1 SCLIN SCLOUT SCL2 SDA1 SDAIN SDAOUT SDA2 GND 4313123 F03

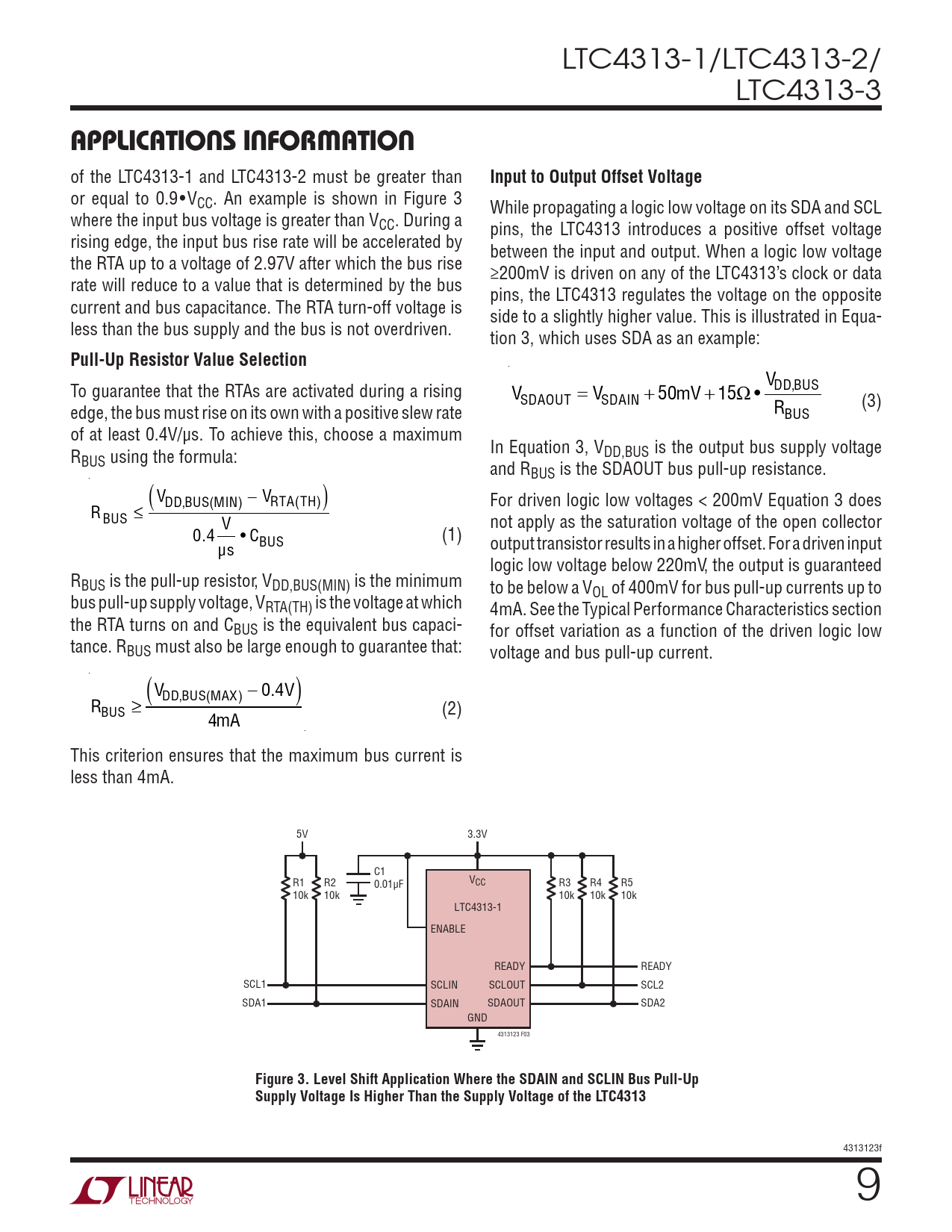

Figure 3. Level Shift Application Where the SDAIN and SCLIN Bus Pull-Up Supply Voltage Is Higher Than the Supply Voltage of the LTC4313
