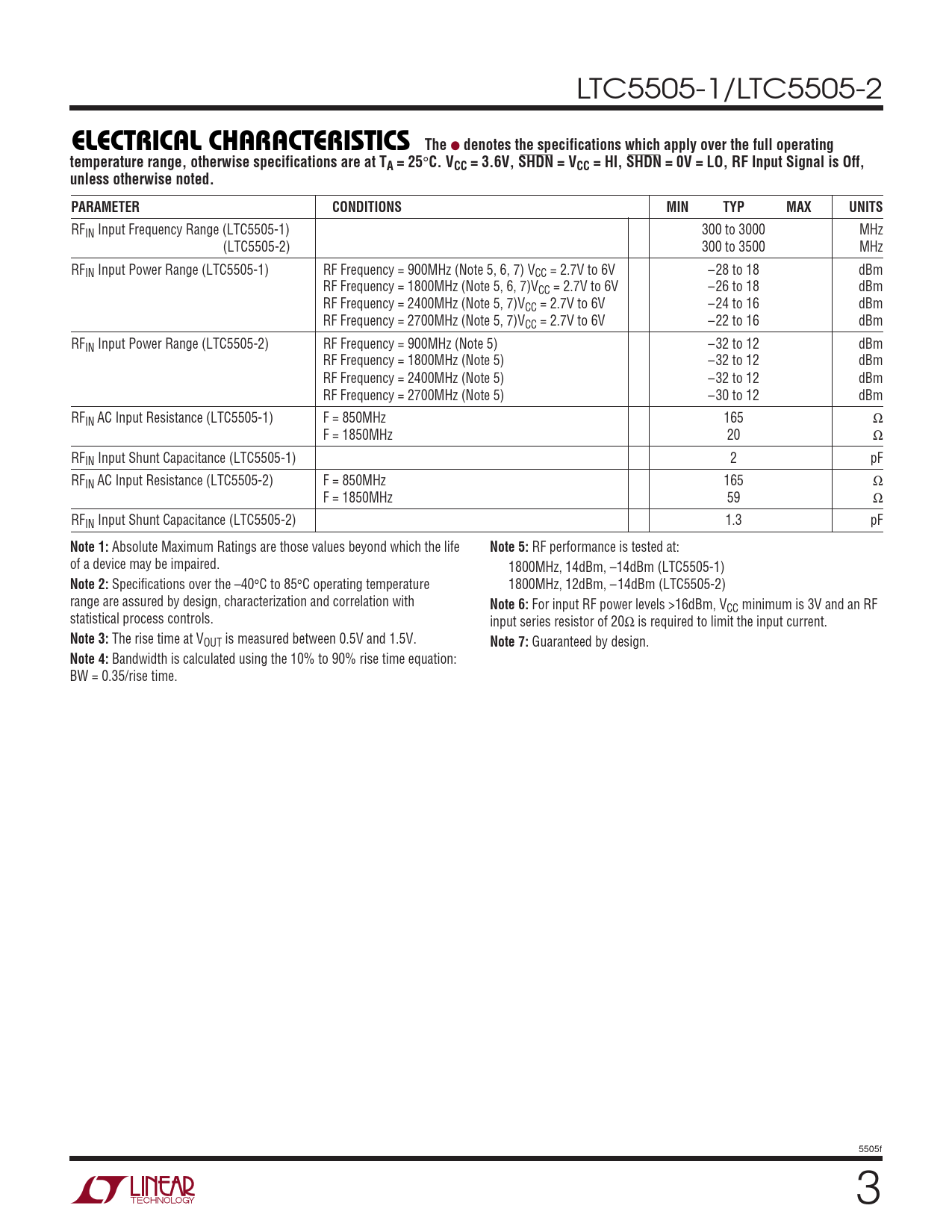

LTC5505-1/LTC5505-2
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.6V, SHDN = VCC = HI, SHDN = 0V = LO, RF Input Signal is Off, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
RFIN Input Frequency Range (LTC5505-1) 300 to 3000 MHz (LTC5505-2) 300 to 3500 MHz RFIN Input Power Range (LTC5505-1) RF Frequency = 900MHz (Note 5, 6, 7) VCC = 2.7V to 6V –28 to 18 dBm RF Frequency = 1800MHz (Note 5, 6, 7)VCC = 2.7V to 6V –26 to 18 dBm RF Frequency = 2400MHz (Note 5, 7)VCC = 2.7V to 6V –24 to 16 dBm RF Frequency = 2700MHz (Note 5, 7)VCC = 2.7V to 6V –22 to 16 dBm RFIN Input Power Range (LTC5505-2) RF Frequency = 900MHz (Note 5) –32 to 12 dBm RF Frequency = 1800MHz (Note 5) –32 to 12 dBm RF Frequency = 2400MHz (Note 5) –32 to 12 dBm RF Frequency = 2700MHz (Note 5) –30 to 12 dBm RFIN AC Input Resistance (LTC5505-1) F = 850MHz 165 Ω F = 1850MHz 20 Ω RFIN Input Shunt Capacitance (LTC5505-1) 2 pF RFIN AC Input Resistance (LTC5505-2) F = 850MHz 165 Ω F = 1850MHz 59 Ω RFIN Input Shunt Capacitance (LTC5505-2) 1.3 pF
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 5:
RF performance is tested at: of a device may be impaired. 1800MHz, 14dBm, –14dBm (LTC5505-1)
Note 2:
Specifications over the –40°C to 85°C operating temperature 1800MHz, 12dBm, –14dBm (LTC5505-2) range are assured by design, characterization and correlation with
Note 6:
For input RF power levels >16dBm, VCC minimum is 3V and an RF statistical process controls. input series resistor of 20Ω is required to limit the input current.
Note 3:
The rise time at VOUT is measured between 0.5V and 1.5V.
Note 7:
Guaranteed by design.
Note 4:
Bandwidth is calculated using the 10% to 90% rise time equation: BW = 0.35/rise time. 5505f 3
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.6V, SHDN = VCC = HI, SHDN = 0V = LO, RF Input Signal is Off, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
RFIN Input Frequency Range (LTC5505-1) 300 to 3000 MHz (LTC5505-2) 300 to 3500 MHz RFIN Input Power Range (LTC5505-1) RF Frequency = 900MHz (Note 5, 6, 7) VCC = 2.7V to 6V –28 to 18 dBm RF Frequency = 1800MHz (Note 5, 6, 7)VCC = 2.7V to 6V –26 to 18 dBm RF Frequency = 2400MHz (Note 5, 7)VCC = 2.7V to 6V –24 to 16 dBm RF Frequency = 2700MHz (Note 5, 7)VCC = 2.7V to 6V –22 to 16 dBm RFIN Input Power Range (LTC5505-2) RF Frequency = 900MHz (Note 5) –32 to 12 dBm RF Frequency = 1800MHz (Note 5) –32 to 12 dBm RF Frequency = 2400MHz (Note 5) –32 to 12 dBm RF Frequency = 2700MHz (Note 5) –30 to 12 dBm RFIN AC Input Resistance (LTC5505-1) F = 850MHz 165 Ω F = 1850MHz 20 Ω RFIN Input Shunt Capacitance (LTC5505-1) 2 pF RFIN AC Input Resistance (LTC5505-2) F = 850MHz 165 Ω F = 1850MHz 59 Ω RFIN Input Shunt Capacitance (LTC5505-2) 1.3 pF
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 5:
RF performance is tested at: of a device may be impaired. 1800MHz, 14dBm, –14dBm (LTC5505-1)
Note 2:
Specifications over the –40°C to 85°C operating temperature 1800MHz, 12dBm, –14dBm (LTC5505-2) range are assured by design, characterization and correlation with
Note 6:
For input RF power levels >16dBm, VCC minimum is 3V and an RF statistical process controls. input series resistor of 20Ω is required to limit the input current.
Note 3:
The rise time at VOUT is measured between 0.5V and 1.5V.
Note 7:
Guaranteed by design.
Note 4:
Bandwidth is calculated using the 10% to 90% rise time equation: BW = 0.35/rise time. 5505f 3
