Datasheet ADXL325 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Small, Low Power, 3-Axis ±5 g Accelerometer |
| 页数 / 页 | 17 / 5 — ADXL325. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| 文件格式/大小 | PDF / 283 Kb |
| 文件语言 | 英语 |

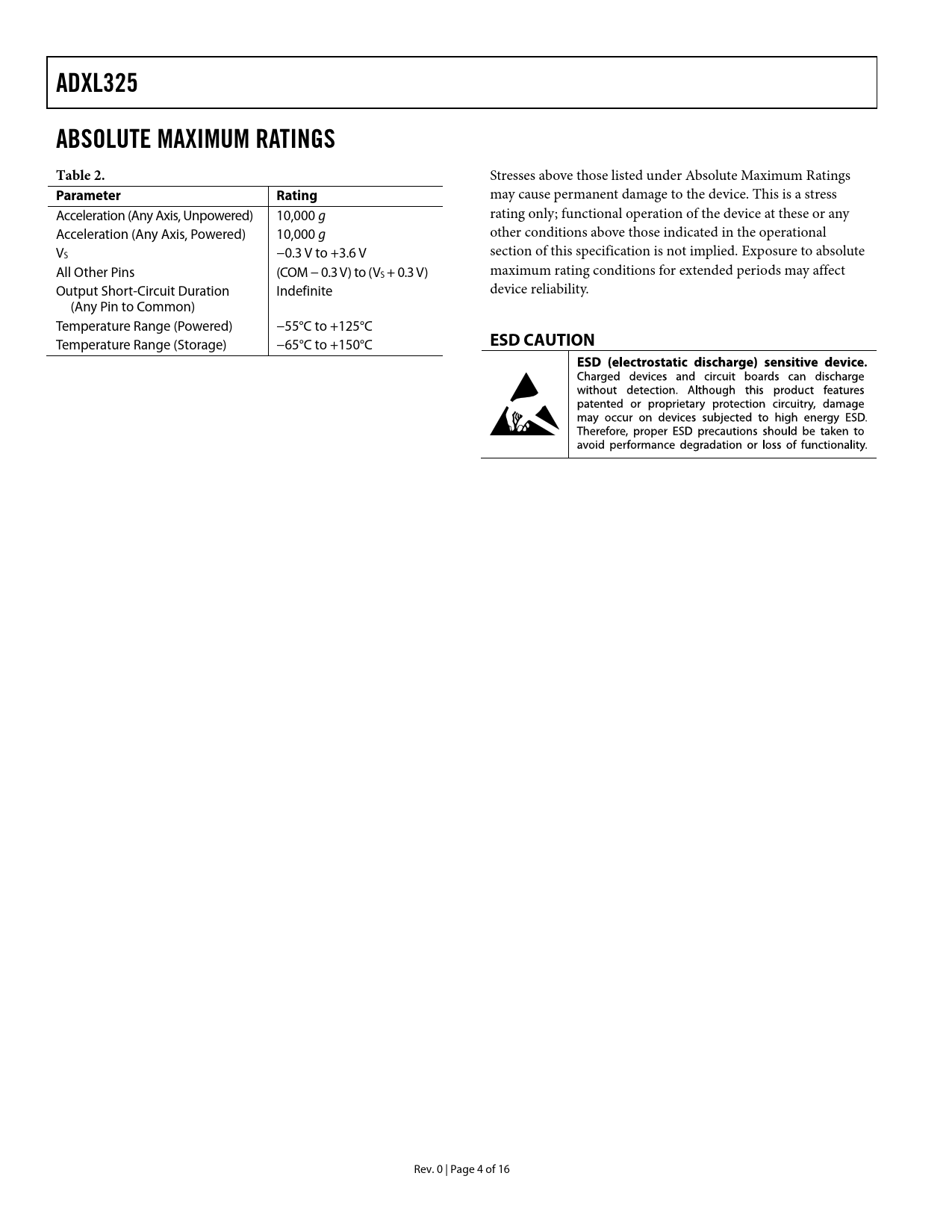

ADXL325. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
该数据表的模型线
文件文字版本
ADXL325 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Acceleration (Any Axis, Unpowered) 10,000 g rating only; functional operation of the device at these or any Acceleration (Any Axis, Powered) 10,000 g other conditions above those indicated in the operational V section of this specification is not implied. Exposure to absolute S −0.3 V to +3.6 V All Other Pins (COM − 0.3 V) to (V maximum rating conditions for extended periods may affect S + 0.3 V) Output Short-Circuit Duration Indefinite device reliability. (Any Pin to Common) Temperature Range (Powered) −55°C to +125°C Temperature Range (Storage) −65°C to +150°C
