Datasheet ADXL345 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | 3-Axis, ±2 g/±4 g/±8 g/±16 g Digital Accelerometer |
| 页数 / 页 | 10 / 7 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12657 |
| 文件格式/大小 | PDF / 249 Kb |
| 文件语言 | 英语 |
DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12657
该数据表的模型线
文件文字版本

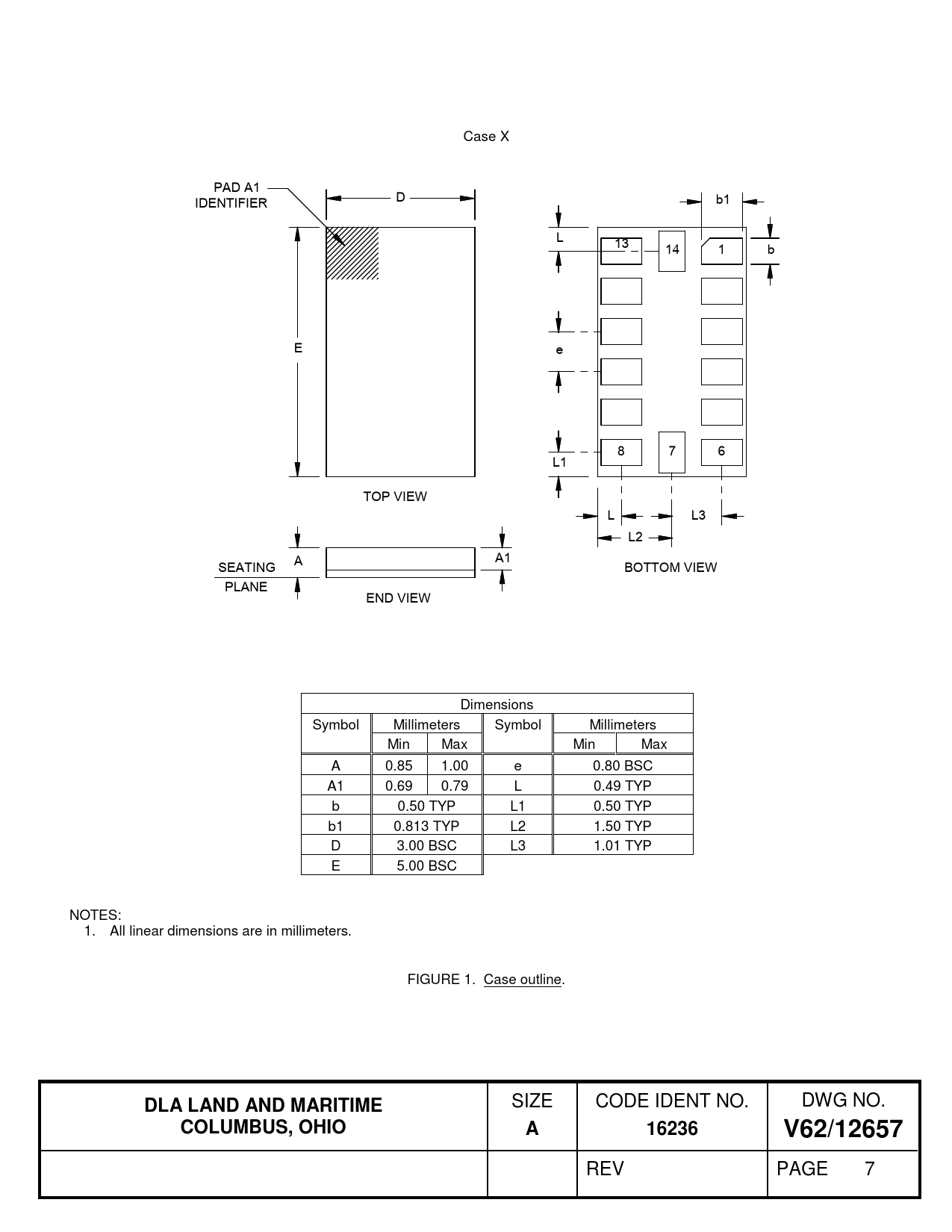

Case X PAD A1 D IDENTIFIER b1 L 13 14 1 b E e 8 7 6 L1 TOP VIEW L L3 L2 A A1 SEATING BOTTOM VIEW PLANE END VIEW Dimensions Symbol Millimeters Symbol Millimeters Min Max Min Max A 0.85 1.00 e 0.80 BSC A1 0.69 0.79 L 0.49 TYP b 0.50 TYP L1 0.50 TYP b1 0.813 TYP L2 1.50 TYP D 3.00 BSC L3 1.01 TYP E 5.00 BSC NOTES: 1. All linear dimensions are in millimeters. FIGURE 1. Case outline.
