Datasheet ADIS16203 (Analog Devices) - 5

制造商Analog Devices
描述Programmable 360° Inclinometer
页数 / 页29 / 5 — ADIS16203. Parameter Conditions. Min. Typ. Max. Unit
修订版C
文件格式/大小PDF / 459 Kb
文件语言英语

ADIS16203. Parameter Conditions. Min. Typ. Max. Unit

ADIS16203 Parameter Conditions Min Typ Max Unit

该数据表的模型线

文件文字版本

link to page 5 link to page 5 link to page 5
ADIS16203 Parameter Conditions Min Typ Max Unit

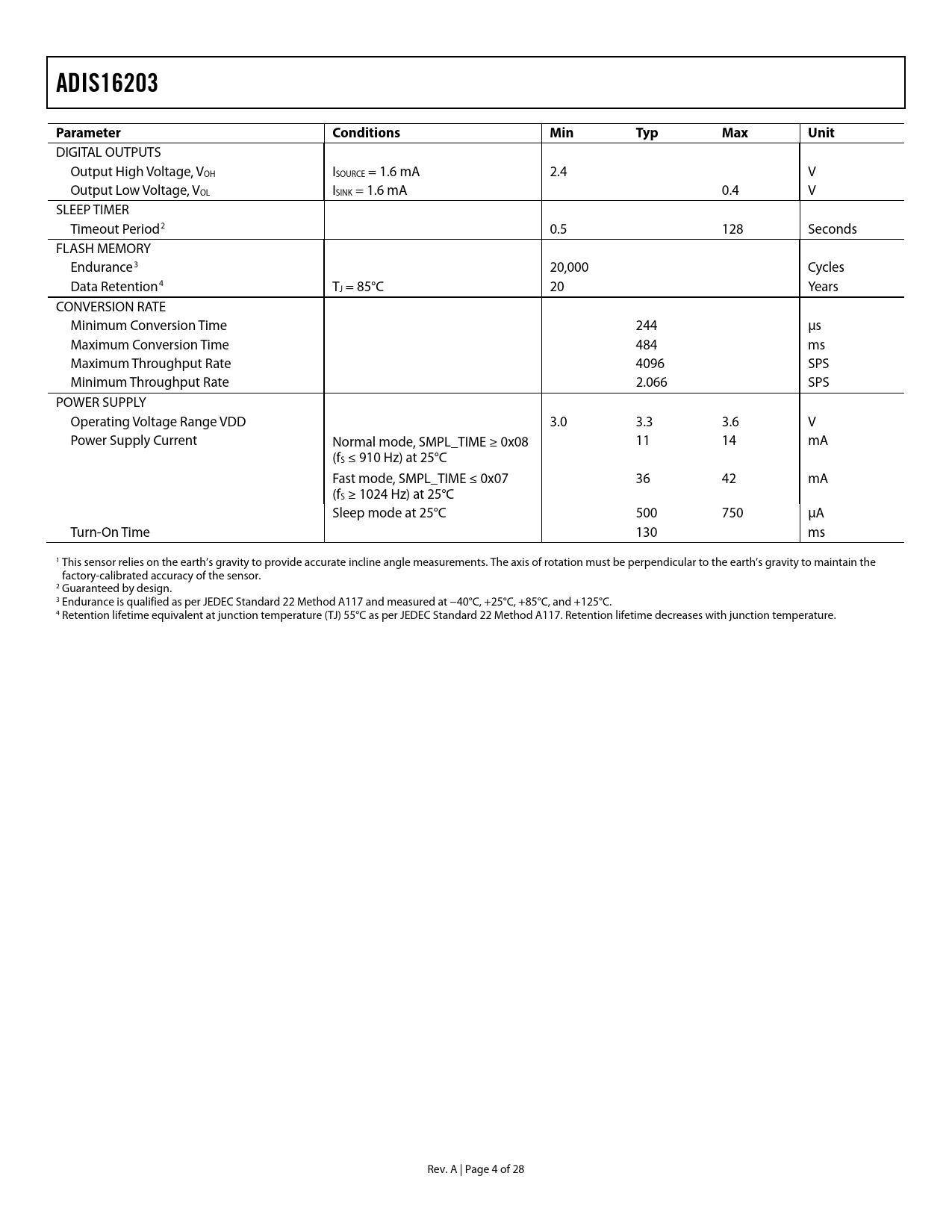

DIGITAL OUTPUTS Output High Voltage, VOH ISOURCE = 1.6 mA 2.4 V Output Low Voltage, VOL ISINK = 1.6 mA 0.4 V SLEEP TIMER Timeout Period2 0.5 128 Seconds FLASH MEMORY Endurance3 20,000 Cycles Data Retention4 TJ = 85°C 20 Years CONVERSION RATE Minimum Conversion Time 244 μs Maximum Conversion Time 484 ms Maximum Throughput Rate 4096 SPS Minimum Throughput Rate 2.066 SPS POWER SUPPLY Operating Voltage Range VDD 3.0 3.3 3.6 V Power Supply Current Normal mode, SMPL_TIME ≥ 0x08 11 14 mA (fS ≤ 910 Hz) at 25°C Fast mode, SMPL_TIME ≤ 0x07 36 42 mA (fS ≥ 1024 Hz) at 25°C Sleep mode at 25°C 500 750 μA Turn-On Time 130 ms 1 This sensor relies on the earth’s gravity to provide accurate incline angle measurements. The axis of rotation must be perpendicular to the earth’s gravity to maintain the factory-calibrated accuracy of the sensor. 2 Guaranteed by design. 3 Endurance is qualified as per JEDEC Standard 22 Method A117 and measured at −40°C, +25°C, +85°C, and +125°C. 4 Retention lifetime equivalent at junction temperature (TJ) 55°C as per JEDEC Standard 22 Method A117. Retention lifetime decreases with junction temperature. Rev. A | Page 4 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMACE CHARACTERISTICS THEORY OF OPERATION OUTPUT RESPONSE TEMPERATURE SENSOR BASIC OPERATION SERIAL PERIPHERAL INTERFACE (SPI) DATA OUTPUT REGISTER ACCESS PROGRAMMING AND CONTROL CONTROL REGISTER OVERVIEW CONTROL REGISTER ACCESS CONTROL REGISTER DETAILS CALIBRATION CALIBRATION REGISTER DEFINITION INCL_NULL Register Definition ALARMS ALM_MAG1 Register Definition ALM_SMPL1 Register Definition ALM_MAG2 Register Definition ALM_SMPL2 Register Definition ALM_CTRL Register Definition SAMPLE PERIOD CONTROL SMPL_TIME Register Definition FILTERING CONTROL AVG_CNT Register Definition POWER-DOWN CONTROL SLP_CNT Register Definition STATUS FEEDBACK STATUS Register Definition COMMAND CONTROL COMMAND Register Definition MISCELLANEOUS CONTROL REGISTER MSC_CTRL Register Definition PERIPHERALS AUXILIARY ADC FUNCTION AUXILIARY DAC FUNCTION AUX_DAC Register Definition GENERAL-PURPOSE I/O CONTROL GPIO_CTRL Register Definition APPLICATIONS HARDWARE CONSIDERATIONS GROUNDING AND BOARD LAYOUT RECOMMENDATIONS SELF-TEST TIPS BAND GAP REFERENCE POWER-ON RESET OPERATION SECOND-LEVEL ASSEMBLY EXAMPLE PAD LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
