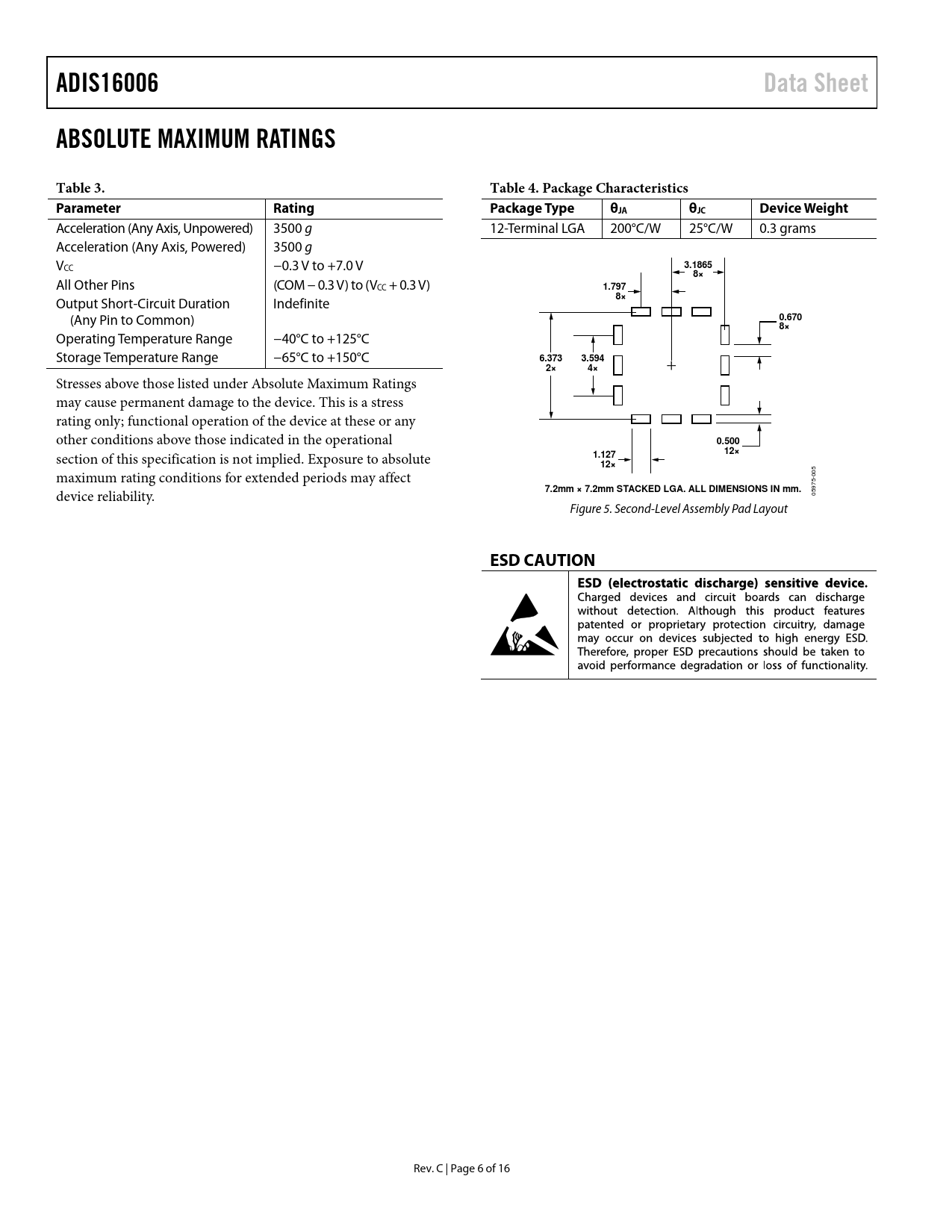

ADIS16006 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. Package Characteristics Parameter Rating Package Type θJA θJC Device Weight
Acceleration (Any Axis, Unpowered) 3500 g 12-Terminal LGA 200°C/W 25°C/W 0.3 grams Acceleration (Any Axis, Powered) 3500 g VCC −0.3 V to +7.0 V
3.1865 8×
All Other Pins (COM − 0.3 V) to (VCC + 0.3 V)
1.797
Output Short-Circuit Duration Indefinite
8×
(Any Pin to Common)
0.670 8×
Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C
6.373 3.594 2× 4×
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational
0.500
section of this specification is not implied. Exposure to absolute
1.127 12× 12×
maximum rating conditions for extended periods may affect 005 device reliability.
7.2mm × 7.2mm STACKED LGA. ALL DIMENSIONS IN mm.
05975- Figure 5. Second-Level Assembly Pad Layout
ESD CAUTION
