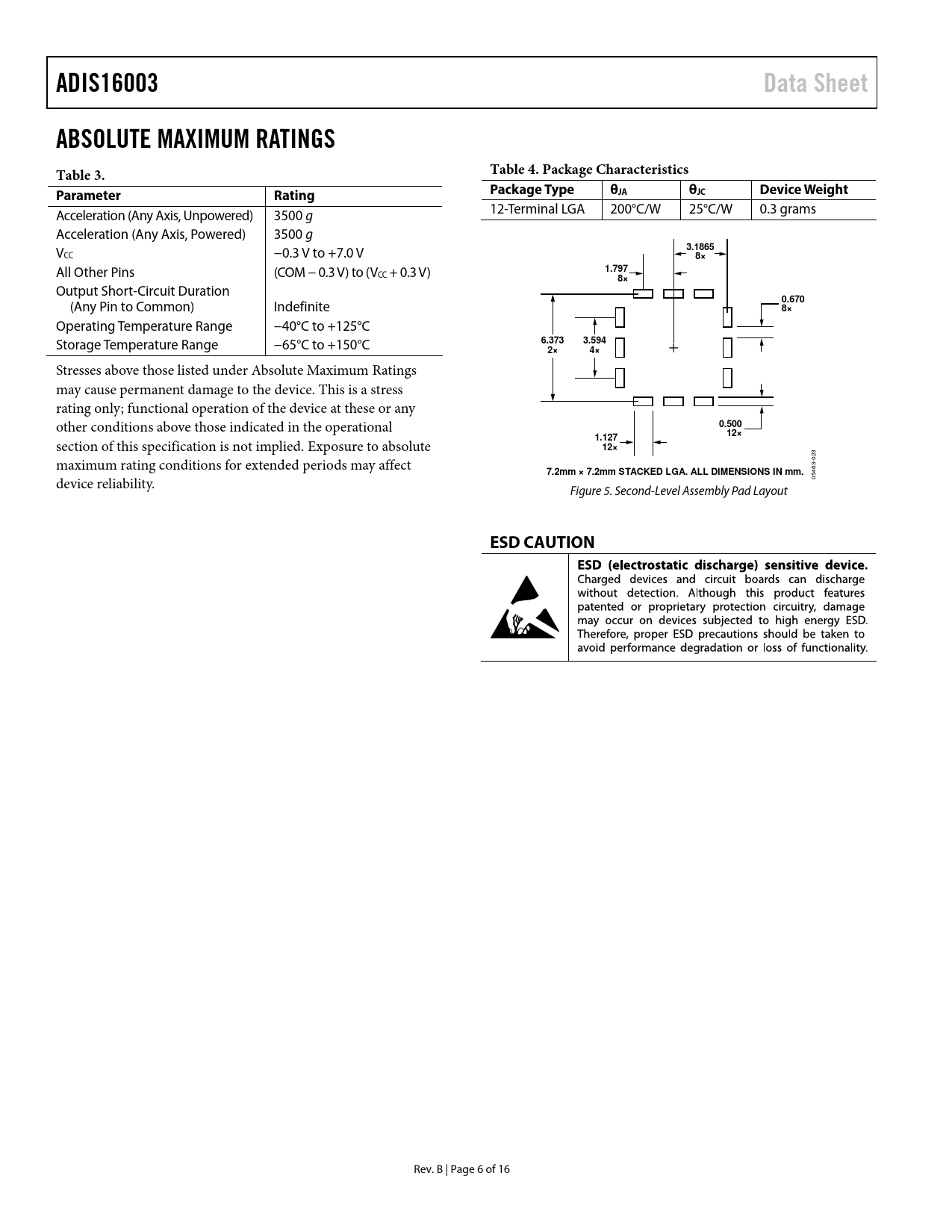

ADIS16003 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4. Package Characteristics Table 3. Package Type θJA θJC Device Weight Parameter Rating
12-Terminal LGA 200°C/W 25°C/W 0.3 grams Acceleration (Any Axis, Unpowered) 3500 g Acceleration (Any Axis, Powered) 3500 g
3.1865
VCC −0.3 V to +7.0 V
8×
All Other Pins (COM − 0.3 V) to (V
1.797
CC + 0.3 V)
8×
Output Short-Circuit Duration
0.670
(Any Pin to Common) Indefinite
8×
Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C
6.373 3.594 2× 4×
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any
0.500
other conditions above those indicated in the operational
1.127 12×
section of this specification is not implied. Exposure to absolute
12×
23 0 3- maximum rating conditions for extended periods may affect 46
7.2mm × 7.2mm STACKED LGA. ALL DIMENSIONS IN mm.
05 device reliability. Figure 5. Second-Level Assembly Pad Layout
ESD CAUTION
