ADXL103/ADXL203. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. Table 3. Package Characteristics. Package Type
该数据表的模型线
文件文字版本

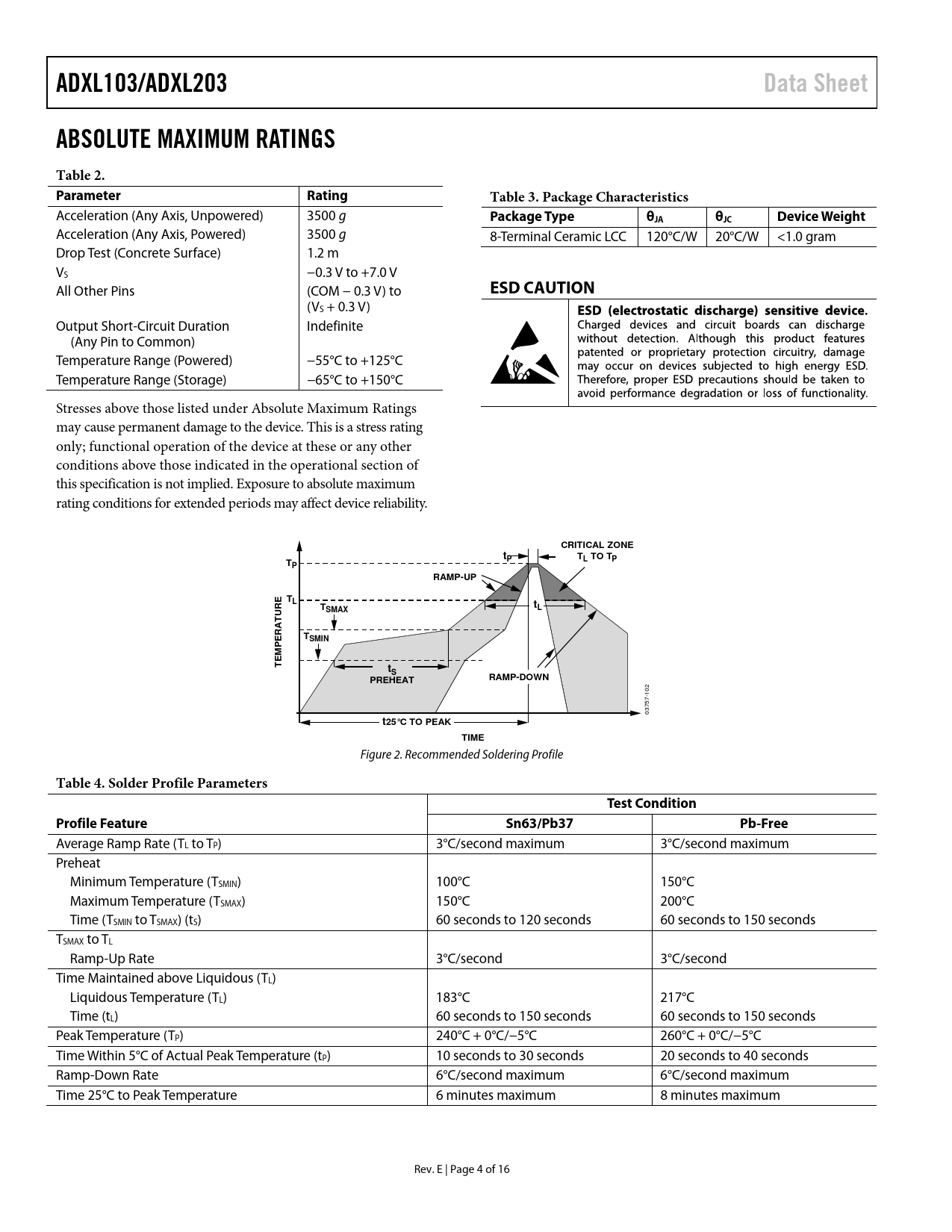

ADXL103/ADXL203 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating Table 3. Package Characteristics
Acceleration (Any Axis, Unpowered) 3500 g
Package Type θJA θJC Device Weight
Acceleration (Any Axis, Powered) 3500 g 8-Terminal Ceramic LCC 120°C/W 20°C/W <1.0 gram Drop Test (Concrete Surface) 1.2 m VS −0.3 V to +7.0 V All Other Pins (COM − 0.3 V) to
ESD CAUTION
(VS + 0.3 V) Output Short-Circuit Duration Indefinite (Any Pin to Common) Temperature Range (Powered) −55°C to +125°C Temperature Range (Storage) −65°C to +150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
CRITICAL ZONE tP TL TO TP TP RAMP-UP TL T tL URE SMAX AT R E TSMIN P M E T tS PREHEAT RAMP-DOWN
02 1 7- 375 0
t25°C TO PEAK TIME
Figure 2. Recommended Soldering Profile
Table 4. Solder Profile Parameters Test Condition Profile Feature Sn63/Pb37 Pb-Free
Average Ramp Rate (TL to TP) 3°C/second maximum 3°C/second maximum Preheat Minimum Temperature (TSMIN) 100°C 150°C Maximum Temperature (TSMAX) 150°C 200°C Time (TSMIN to TSMAX) (tS) 60 seconds to 120 seconds 60 seconds to 150 seconds TSMAX to TL Ramp-Up Rate 3°C/second 3°C/second Time Maintained above Liquidous (TL) Liquidous Temperature (TL) 183°C 217°C Time (tL) 60 seconds to 150 seconds 60 seconds to 150 seconds Peak Temperature (TP) 240°C + 0°C/−5°C 260°C + 0°C/−5°C Time Within 5°C of Actual Peak Temperature (tP) 10 seconds to 30 seconds 20 seconds to 40 seconds Ramp-Down Rate 6°C/second maximum 6°C/second maximum Time 25°C to Peak Temperature 6 minutes maximum 8 minutes maximum Rev. E | Page 4 of 16 Document Outline Features Applications General Description Functional Block Diagrams Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics ADXL103 and ADXL203 AD22293 AD22035 and AD22037 All Models Theory of Operation Performance Applications Information Power Supply Decoupling Setting the Bandwidth Using CX and CY Self Test Design Trade-Offs for Selecting Filter Characteristics: The Noise/Bandwidth Trade-Off Using the ADXL103/ADXL203 with Operating Voltages Other than 5 V Using the ADXL203 as a Dual-Axis Tilt Sensor Dual-Axis Tilt Sensor: Converting Acceleration to Tilt Outline Dimensions Ordering Guide Automotive Products
