Data Sheet. ADIS16334. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). DNC. IO4 D
该数据表的模型线
文件文字版本
link to page 8

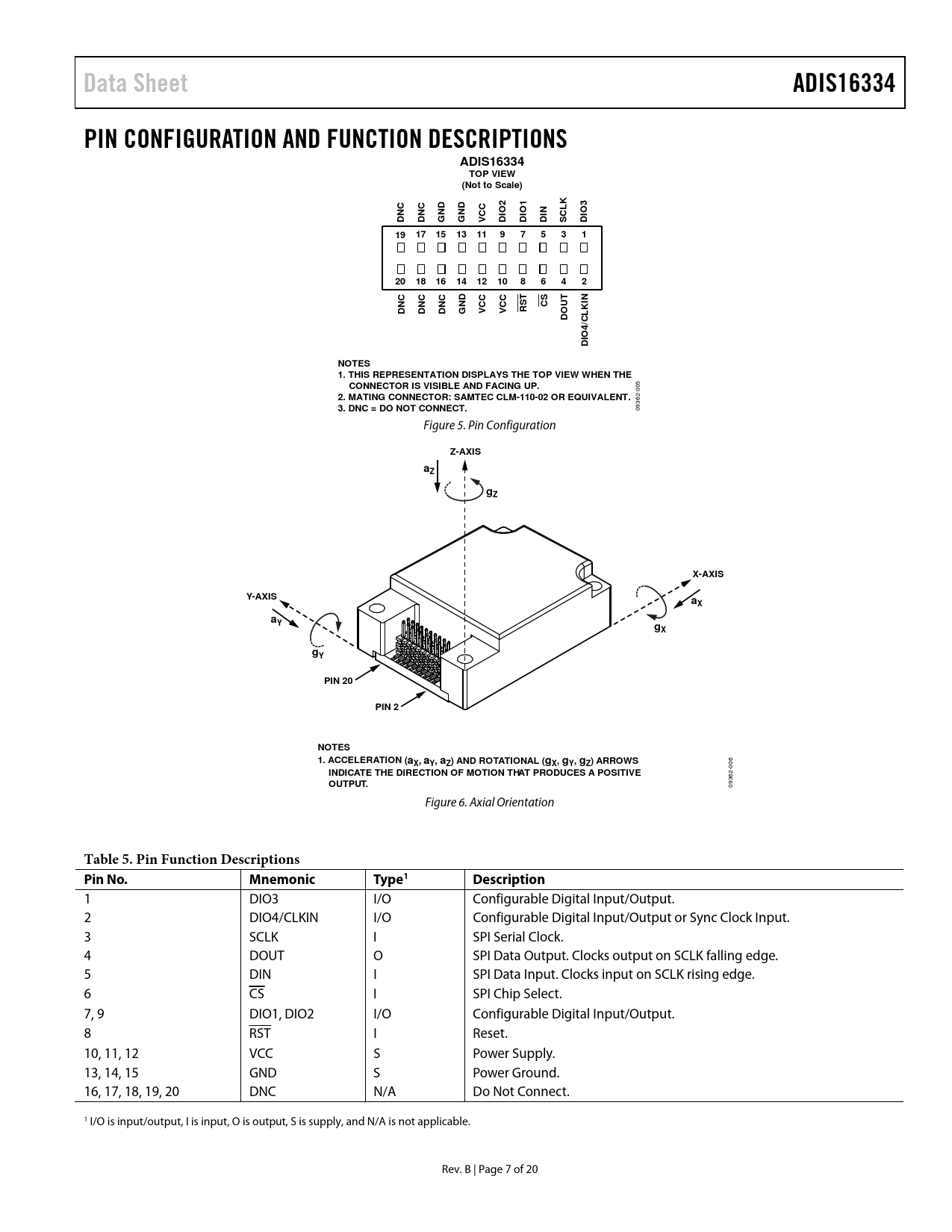

Data Sheet ADIS16334 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADIS16334 TOP VIEW (Not to Scale) 2 K 1 3 C C D D C O L O N O DN DN GN GN VC DI DI DI SC DI 19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2 D C C T IN CS UT K DNC DNC DNC GN VC VC RS L DO /C IO4 D NOTES 1. THIS REPRESENTATION DISPLAYS THE TOP VIEW WHEN THE
5
CONNECTOR IS VISIBLE AND FACING UP.
-00
2. MATING CONNECTOR: SAMTEC CLM-110-02 OR EQUIVALENT.
362
3. DNC = DO NOT CONNECT.
09 Figure 5. Pin Configuration
Z-AXIS aZ gZ X-AXIS Y-AXIS aX aY gX gY PIN 20 PIN 2 NOTES
6
1. ACCELERATION (aX, aY, aZ) AND ROTATIONAL (gX, gY, gZ) ARROWS
00 2-
INDICATE THE DIRECTION OF MOTION THAT PRODUCES A POSITIVE OUTPUT.
0936 Figure 6. Axial Orientation
Table 5. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1 DIO3 I/O Configurable Digital Input/Output. 2 DIO4/CLKIN I/O Configurable Digital Input/Output or Sync Clock Input. 3 SCLK I SPI Serial Clock. 4 DOUT O SPI Data Output. Clocks output on SCLK falling edge. 5 DIN I SPI Data Input. Clocks input on SCLK rising edge. 6 CS I SPI Chip Select. 7, 9 DIO1, DIO2 I/O Configurable Digital Input/Output. 8 RST I Reset. 10, 11, 12 VCC S Power Supply. 13, 14, 15 GND S Power Ground. 16, 17, 18, 19, 20 DNC N/A Do Not Connect. 1 I/O is input/output, I is input, O is output, S is supply, and N/A is not applicable. Rev. B | Page 7 of 20 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Gyroscopes Accelerometers Data Sampling and Processing Calibration User Interface SPI Interface Basic Operation Reading Sensor Data Burst Read Function Memory Map Output Data Registers Gyroscopes Accelerometers Internal Temperature Measurements Device Configuration Dual Memory Structure Digital Processing Configuration Sample Rate Input Clock Configuration Digital Filtering Dynamic Range Optimizing Accuracy Automatic Bias Correction Manual Bias Correction Restoring Factory Calibration Point-of-Percussion/Linear-g Compensation System Tools Global Commands General-Purpose I/O Data Ready I/O Indicator Self-Test Memory Test Status Device Identification Flash Memory Management Alarms Static Alarm Use Dynamic Alarm Use Alarm Reporting Alarm Example Applications Information ADIS16334/PCBZ Installation Mounting Approaches Outline Dimensions Ordering Guide
