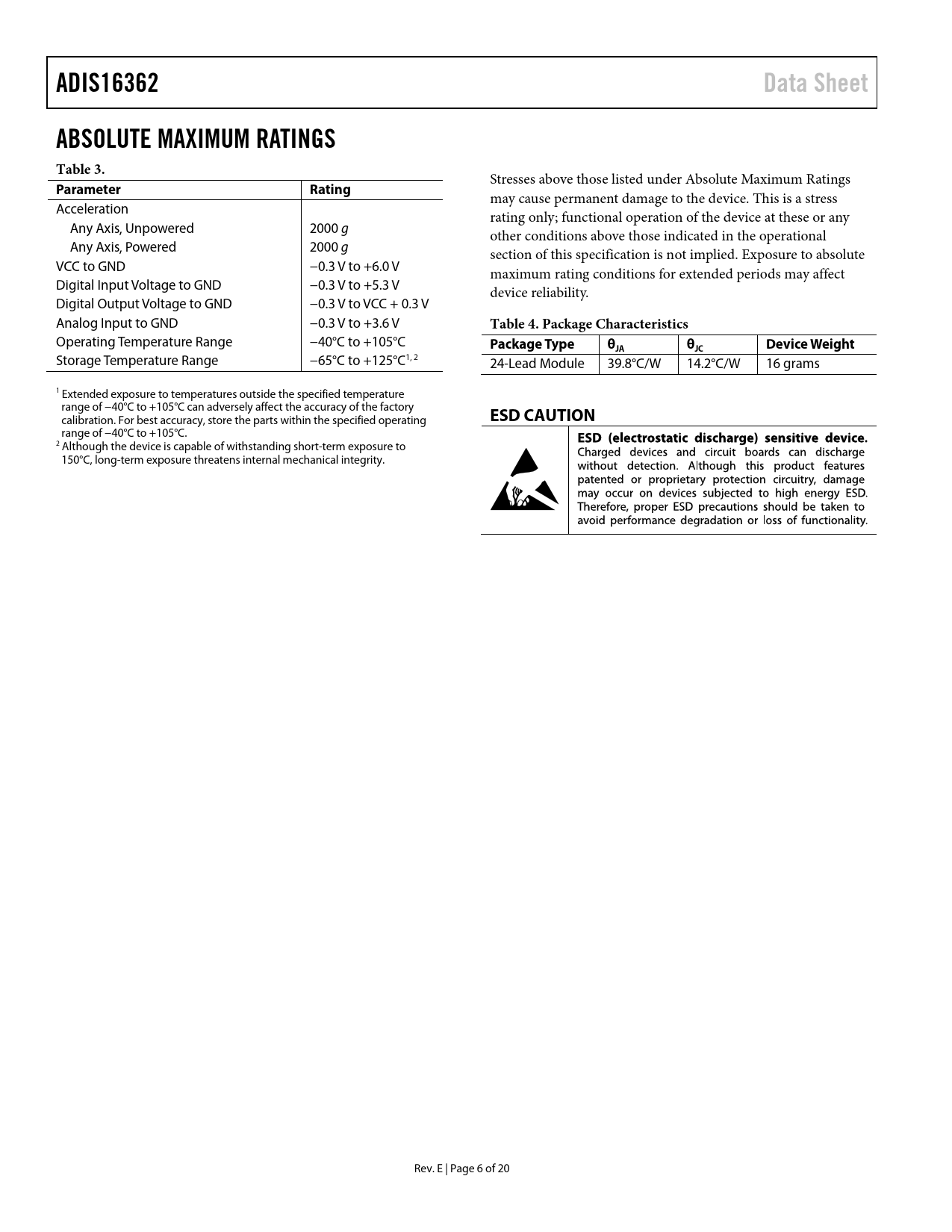

ADIS16362. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. Table 4. Package Characteristics. Package Type
该数据表的模型线
文件文字版本
link to page 7 link to page 7
ADIS16362 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Acceleration rating only; functional operation of the device at these or any Any Axis, Unpowered 2000 g other conditions above those indicated in the operational Any Axis, Powered 2000 g section of this specification is not implied. Exposure to absolute VCC to GND −0.3 V to +6.0 V maximum rating conditions for extended periods may affect Digital Input Voltage to GND −0.3 V to +5.3 V device reliability. Digital Output Voltage to GND −0.3 V to VCC + 0.3 V Analog Input to GND −0.3 V to +3.6 V
Table 4. Package Characteristics
Operating Temperature Range −40°C to +105°C
Package Type θ θ Device Weight JA JC
Storage Temperature Range −65°C to +125°C1, 2 24-Lead Module 39.8°C/W 14.2°C/W 16 grams 1 Extended exposure to temperatures outside the specified temperature range of −40°C to +105°C can adversely affect the accuracy of the factory calibration. For best accuracy, store the parts within the specified operating
