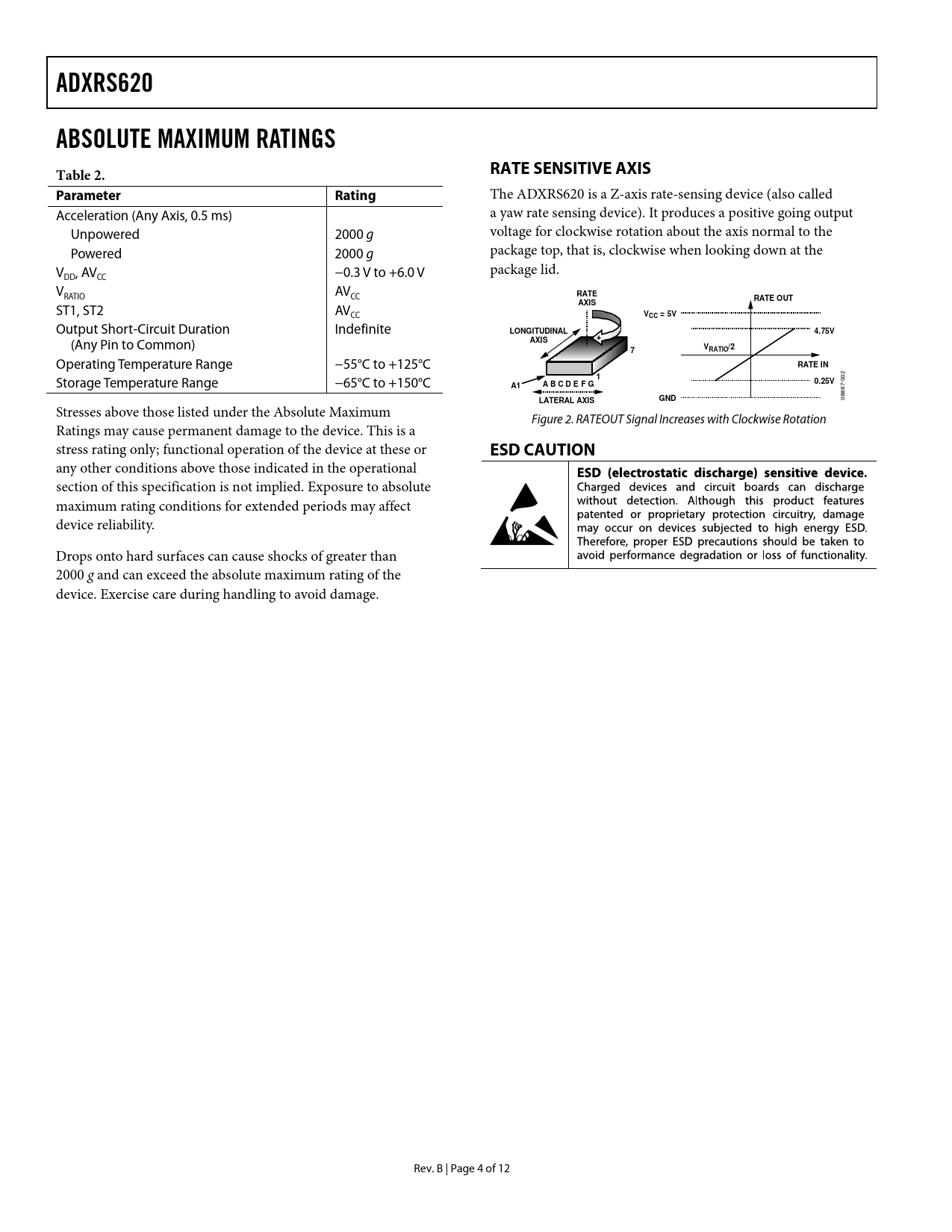

ADXRS620 ABSOLUTE MAXIMUM RATINGS Table 2. RATE SENSITIVE AXIS Parameter Rating
The ADXRS620 is a Z-axis rate-sensing device (also called Acceleration (Any Axis, 0.5 ms) a yaw rate sensing device). It produces a positive going output Unpowered 2000 g voltage for clockwise rotation about the axis normal to the Powered 2000 g package top, that is, clockwise when looking down at the V , AV −0.3 V to +6.0 V package lid. DD CC V AV RATIO CC
RATE RATE OUT
ST1, ST2 AV
AXIS
CC
VCC = 5V
Output Short-Circuit Duration Indefinite
LONGITUDINAL 4.75V
(Any Pin to Common)
AXIS + V 7 RATIO/2
Operating Temperature Range −55°C to +125°C
RATE IN
Storage Temperature Range −65°C to +150°C
1
002
A B C D E F G 0.25V A1 LATERAL AXIS GND
08887- Stresses above those listed under the Absolute Maximum Figure 2. RATEOUT Signal Increases with Clockwise Rotation Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or
ESD CAUTION
any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Drops onto hard surfaces can cause shocks of greater than 2000 g and can exceed the absolute maximum rating of the device. Exercise care during handling to avoid damage. Rev. B | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Rate Sensitive Axis ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Setting Bandwidth Temperature Output and Calibration Calibrated Performance ADXRS620 and Supply Ratiometricity Null Adjustment Self-Test Function Continuous Self-Test Outline Dimensions Ordering Guide Automotive Products
