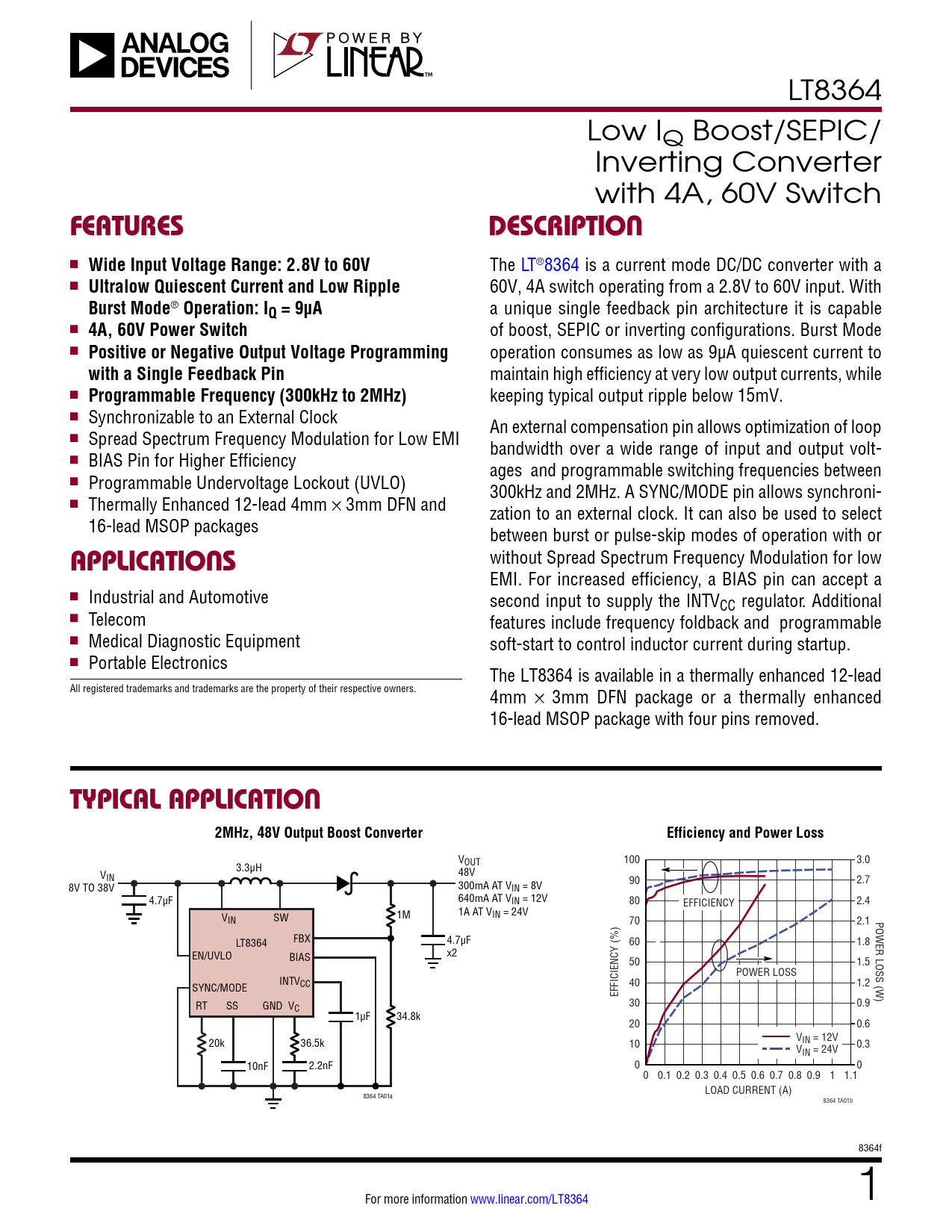

LT8364 Low IQ Boost/SEPIC/ Inverting Converter with 4A, 60V Switch
FEATURES DESCRIPTION
n
Wide Input Voltage Range: 2.8V to 60V
The LT®8364 is a current mode DC/DC converter with a n
Ultralow Quiescent Current and Low Ripple
60V, 4A switch operating from a 2.8V to 60V input. With
Burst Mode
®
Operation: IQ = 9µA
a unique single feedback pin architecture it is capable n
4A, 60V Power Switch
of boost, SEPIC or inverting configurations. Burst Mode n
Positive or Negative Output Voltage Programming
operation consumes as low as 9µA quiescent current to
with a Single Feedback Pin
maintain high efficiency at very low output currents, while n
Programmable Frequency (300kHz to 2MHz)
keeping typical output ripple below 15mV. n Synchronizable to an External Clock An external compensation pin allows optimization of loop n Spread Spectrum Frequency Modulation for Low EMI bandwidth over a wide range of input and output volt- n BIAS Pin for Higher Efficiency ages and programmable switching frequencies between n Programmable Undervoltage Lockout (UVLO) 300kHz and 2MHz. A SYNC/MODE pin allows synchroni- n Thermally Enhanced 12-lead 4mm × 3mm DFN and zation to an external clock. It can also be used to select 16-lead MSOP packages between burst or pulse-skip modes of operation with or without Spread Spectrum Frequency Modulation for low
APPLICATIONS
EMI. For increased efficiency, a BIAS pin can accept a n Industrial and Automotive second input to supply the INTVCC regulator. Additional n Telecom features include frequency foldback and programmable n Medical Diagnostic Equipment soft-start to control inductor current during startup. n Portable Electronics The LT8364 is available in a thermally enhanced 12-lead All registered trademarks and trademarks are the property of their respective owners. 4mm × 3mm DFN package or a thermal y enhanced 16-lead MSOP package with four pins removed.
TYPICAL APPLICATION 2MHz, 48V Output Boost Converter Efficiency and Power Loss
