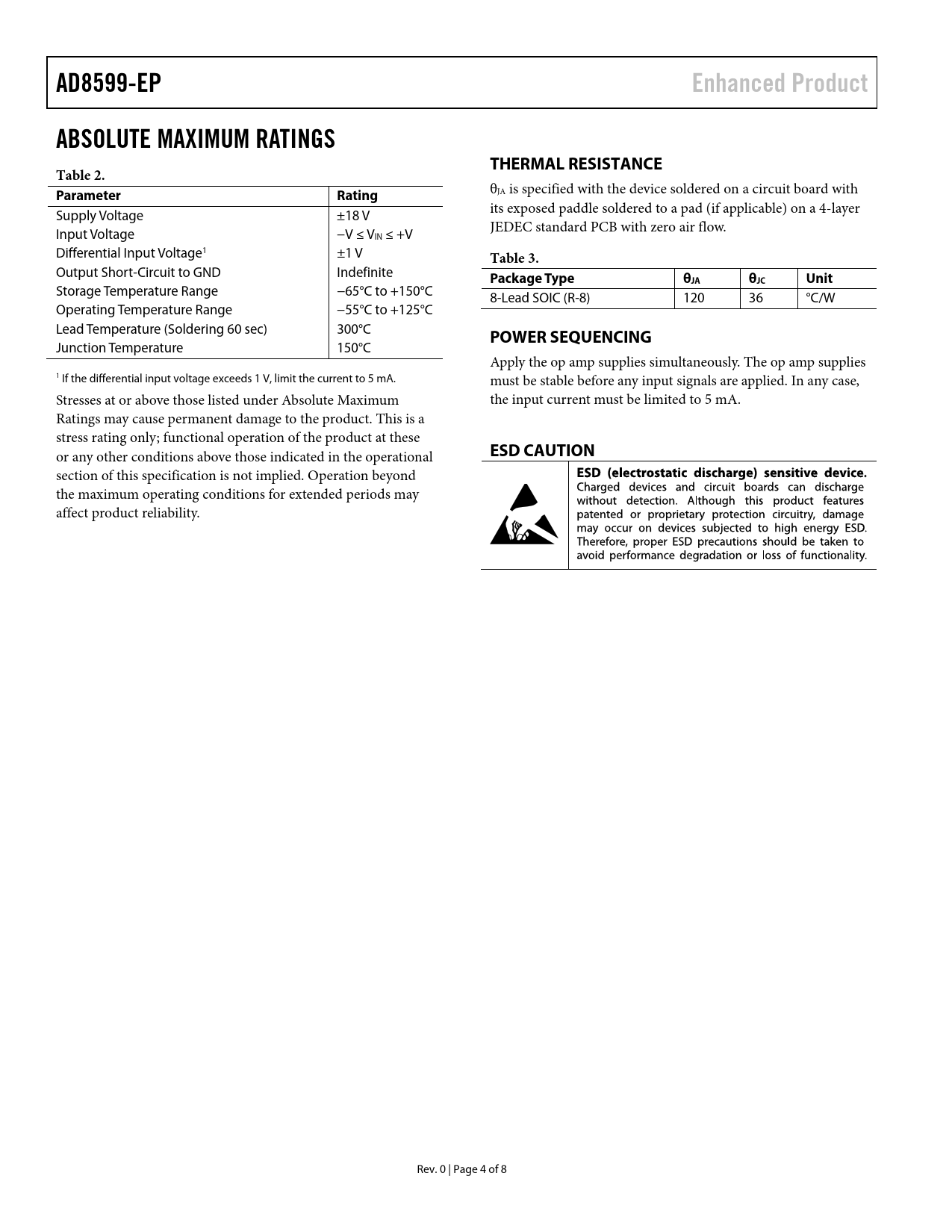

AD8599-EP. Enhanced Product. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 2. Parameter. Rating. Table 3. Package Type. θJA. θJC
该数据表的模型线
文件文字版本
AD8599-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 2. Parameter Rating
θJA is specified with the device soldered on a circuit board with Supply Voltage ±18 V its exposed paddle soldered to a pad (if applicable) on a 4-layer Input Voltage −V ≤ V JEDEC standard PCB with zero air flow. IN ≤ +V Differential Input Voltage1 ±1 V
Table 3.
Output Short-Circuit to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead SOIC (R-8) 120 36 °C/W Operating Temperature Range −55°C to +125°C Lead Temperature (Soldering 60 sec) 300°C
POWER SEQUENCING
Junction Temperature 150°C Apply the op amp supplies simultaneously. The op amp supplies 1 If the differential input voltage exceeds 1 V, limit the current to 5 mA. must be stable before any input signals are applied. In any case, Stresses at or above those listed under Absolute Maximum the input current must be limited to 5 mA. Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational
ESD CAUTION
section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 4 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
