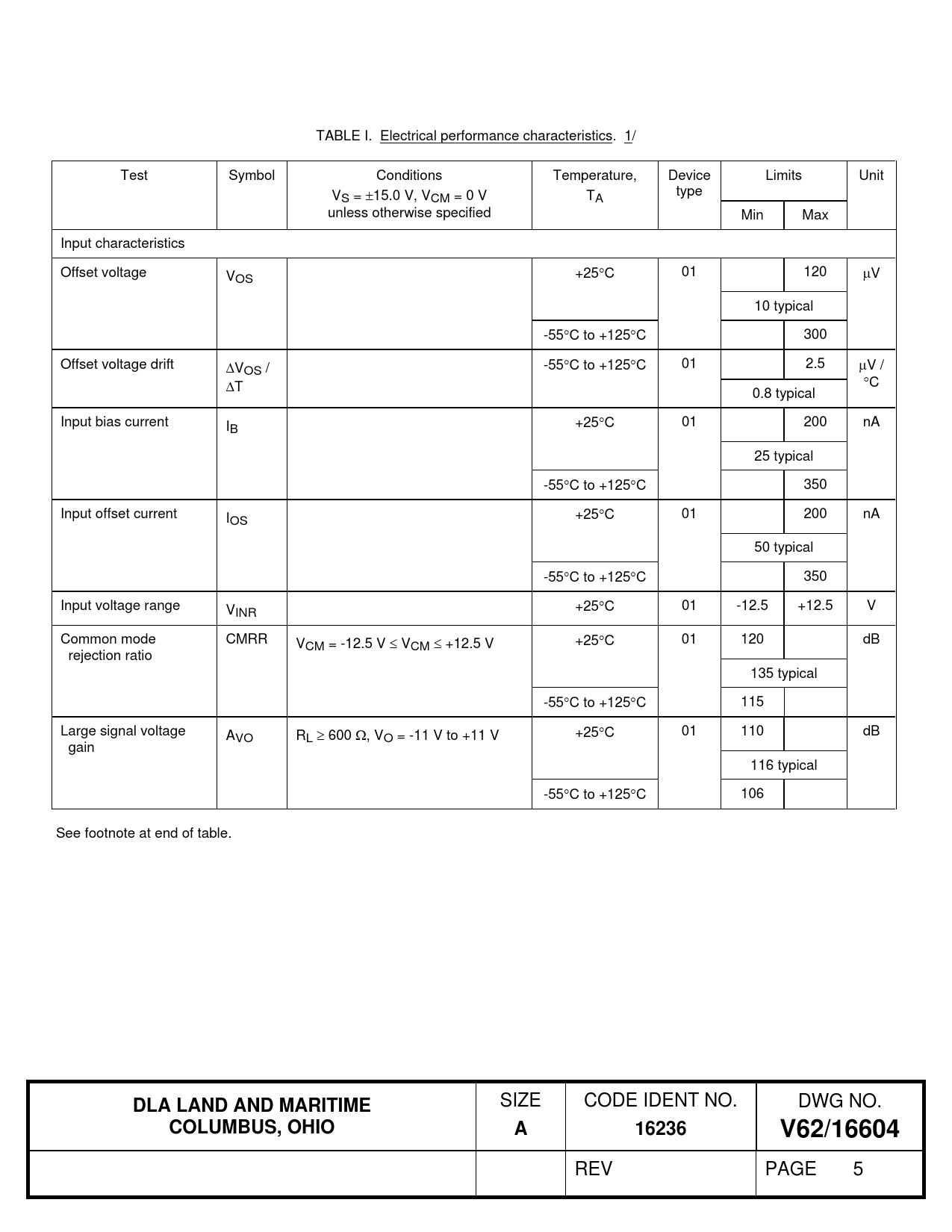

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions Temperature, Device Limits Unit V type S = 15.0 V, VCM = 0 V TA unless otherwise specified Min Max Input characteristics Offset voltage VOS +25C 01 120 V 10 typical -55C to +125C 300 Offset voltage drift V -55C to +125C 01 2.5 V / OS / T C 0.8 typical Input bias current IB +25C 01 200 nA 25 typical -55C to +125C 350 Input offset current IOS +25C 01 200 nA 50 typical -55C to +125C 350 Input voltage range VINR +25C 01 -12.5 +12.5 V Common mode CMRR VCM = -12.5 V  VCM  +12.5 V +25C 01 120 dB rejection ratio 135 typical -55C to +125C 115 Large signal voltage AVO RL  600 , VO = -11 V to +11 V +25C 01 110 dB gain 116 typical -55C to +125C 106 See footnote at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16604
REV PAGE 5
