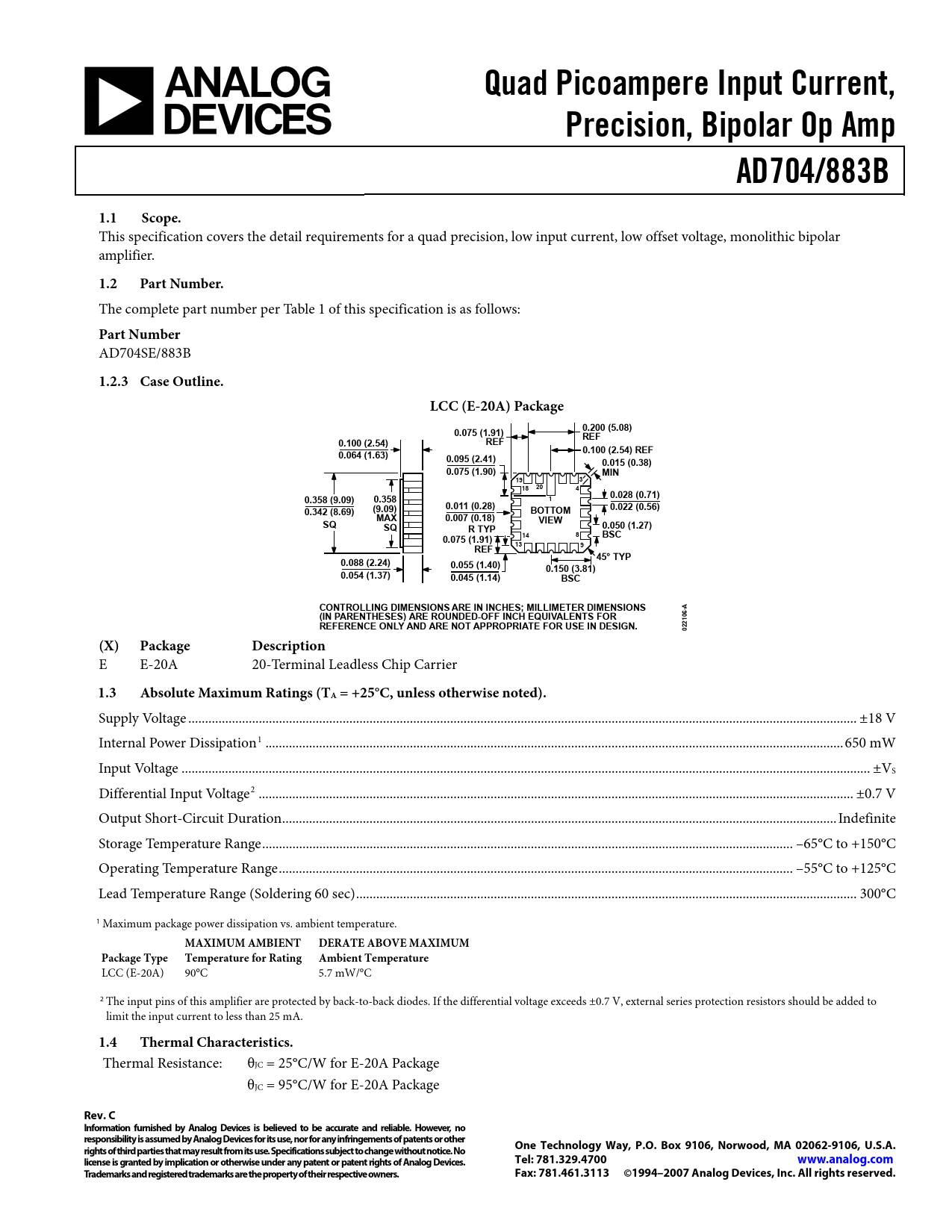

Quad Picoampere Input Current, Precision, Bipolar Op Amp AD704/883B 1.1 Scope.
This specification covers the detail requirements for a quad precision, low input current, low offset voltage, monolithic bipolar amplifier.
1.2 Part Number.
The complete part number per Table 1 of this specification is as follows:
Part Number
AD704SE/883B
1.2.3 Case Outline. LCC (E-20A) Package 0.200 (5.08) 0.075 (1.91) REF 0.100 (2.54) REF 0.100 (2.54) REF 0.064 (1.63) 0.095 (2.41) 0.015 (0.38) 0.075 (1.90) MIN 19 3 20 18 4 0.028 (0.71) 1 0.358 (9.09) 0.358 0.011 (0.28) 0.342 (8.69) (9.09) BOTTOM 0.022 (0.56) MAX 0.007 (0.18) VIEW SQ 0.050 (1.27) SQ R TYP 14 8 BSC 0.075 (1.91) 13 9 REF 45° TYP 0.088 (2.24) 0.055 (1.40) 0.150 (3.81) 0.054 (1.37) 0.045 (1.14) BSC CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS -A (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR 06 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 21 02 (X) Package Description
E E-20A 20-Terminal Leadless Chip Carrier
1.3 Absolute Maximum Ratings (TA = +25°C, unless otherwise noted).
Supply Voltage ... ±18 V Internal Power Dissipation1 .. 650 mW Input Voltage ... ±VS Differential Input Voltage2 ... ±0.7 V Output Short-Circuit Duration ... Indefinite Storage Temperature Range .. –65°C to +150°C Operating Temperature Range ... –55°C to +125°C Lead Temperature Range (Soldering 60 sec) ... 300°C 1 Maximum package power dissipation vs. ambient temperature.
MAXIMUM AMBIENT DERATE ABOVE MAXIMUM Package Type Temperature for Rating Ambient Temperature
LCC (E-20A) 90°C 5.7 mW/°C 2 The input pins of this amplifier are protected by back-to-back diodes. If the differential voltage exceeds ±0.7 V, external series protection resistors should be added to limit the input current to less than 25 mA.
1.4 Thermal Characteristics.
Thermal Resistance: θJC = 25°C/W for E-20A Package θJC = 95°C/W for E-20A Package
