Datasheet OP249 (Analog Devices)

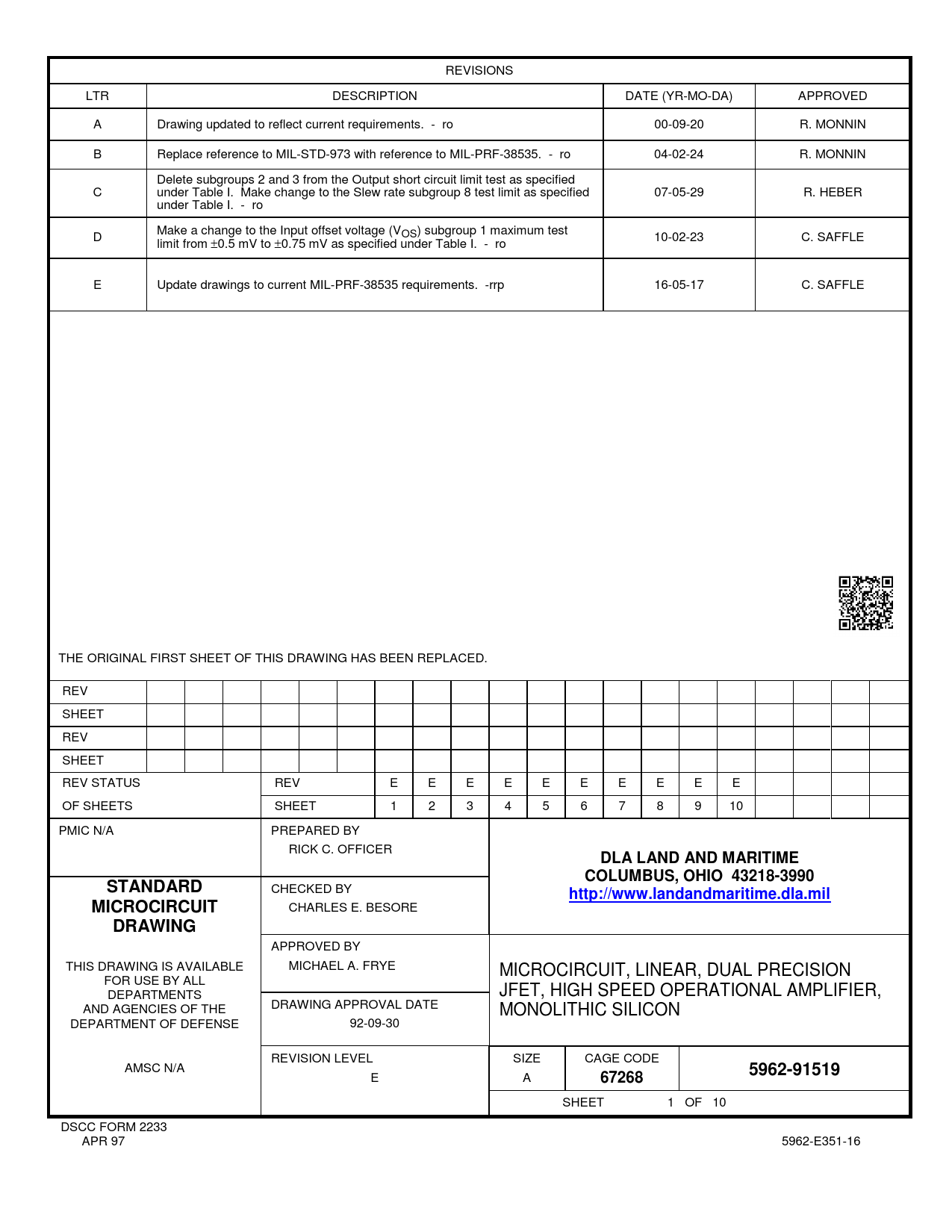

REVISIONS LTR DESCRIPTION DATE (YR-MO-DA) APPROVED A Drawing updated to reflect current requirements. - ro 00-09-20 R. MONNIN B Replace reference to MIL-STD-973 with reference to MIL-PRF-38535. - ro 04-02-24 R. MONNIN Delete subgroups 2 and 3 from the Output short circuit limit test as specified C under Table I. Make change to the Slew rate subgroup 8 test limit as specified 07-05-29 R. HEBER under Table I. - ro Make a change to the Input offset voltage (V D OS) subgroup 1 maximum test 10-02-23 C. SAFFLE limit from ±0.5 mV to ±0.75 mV as specified under Table I. - ro E Update drawings to current MIL-PRF-38535 requirements. -rrp 16-05-17 C. SAFFLE THE ORIGINAL FIRST SHEET OF THIS DRAWING HAS BEEN REPLACED. REV SHEET REV SHEET REV STATUS REV E E E E E E E E E E OF SHEETS SHEET 1 2 3 4 5 6 7 8 9 10 PMIC N/A PREPARED BY RICK C. OFFICER
DLA LAND AND MARITIME COLUMBUS, OHIO 43218-3990 STANDARD
CHECKED BY
http://www.landandmaritime.dla.mil MICROCIRCUIT
CHARLES E. BESORE
DRAWING
APPROVED BY THIS DRAWING IS AVAILABLE MICHAEL A. FRYE MICROCIRCUIT, LINEAR, DUAL PRECISION FOR USE BY ALL DEPARTMENTS JFET, HIGH SPEED OPERATIONAL AMPLIFIER, AND AGENCIES OF THE DRAWING APPROVAL DATE MONOLITHIC SILICON DEPARTMENT OF DEFENSE 92-09-30 REVISION LEVEL SIZE CAGE CODE AMSC N/A
5962-91519
E A
67268
SHEET 1 OF 10 DSCC FORM 2233 APR 97 5962-E351-16 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
