STANDARD. 5962-89647. MICROCIRCUIT DRAWING
该数据表的模型线
文件文字版本

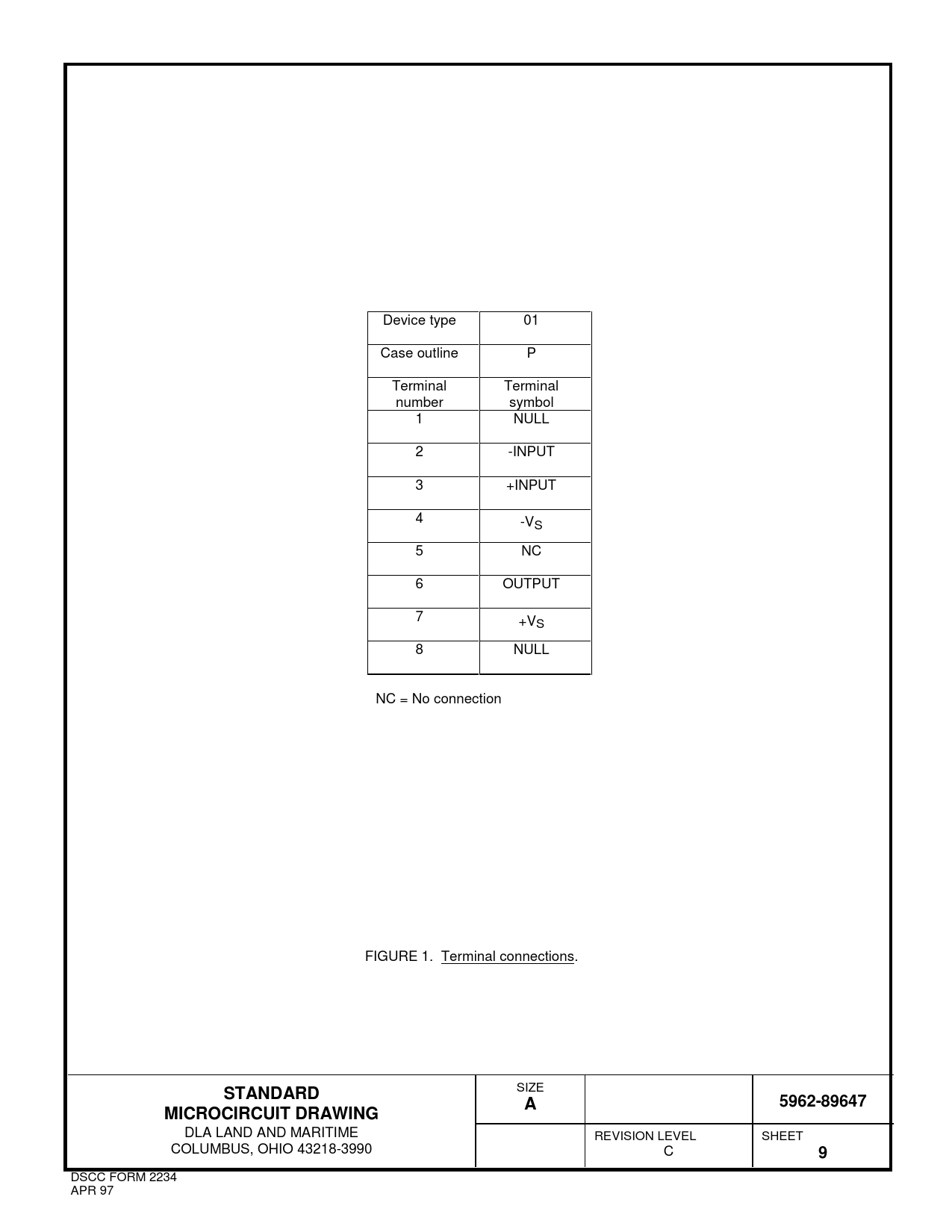

Device type 01 Case outline P Terminal Terminal number symbol 1 NULL 2 -INPUT 3 +INPUT 4 -VS 5 NC 6 OUTPUT 7 +VS 8 NULL NC = No connection FIGURE 1. Terminal connections.
