Datasheet OP42 (Analog Devices) - 7

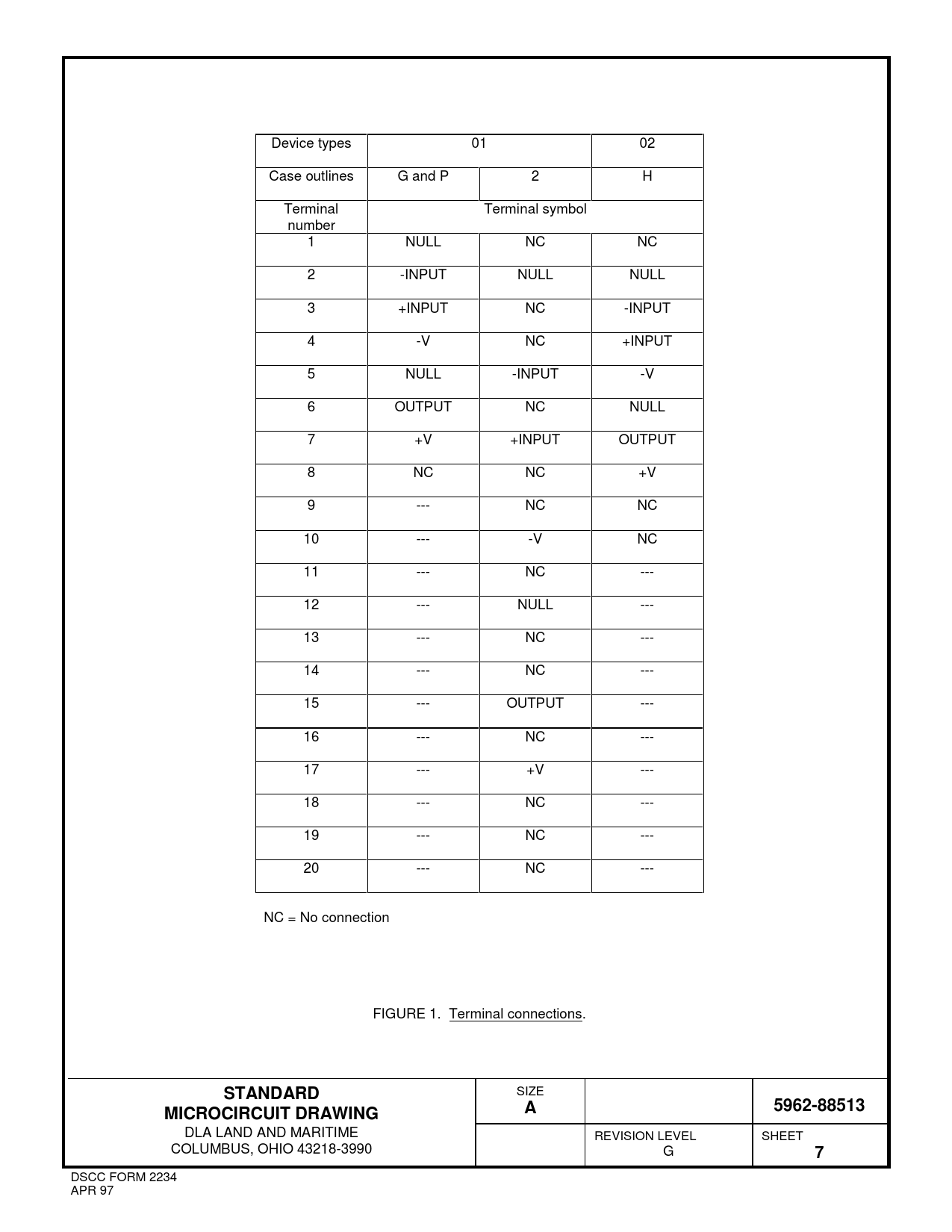

Device types 01 02 Case outlines G and P 2 H Terminal Terminal symbol number 1 NULL NC NC 2 -INPUT NULL NULL 3 +INPUT NC -INPUT 4 -V NC +INPUT 5 NULL -INPUT -V 6 OUTPUT NC NULL 7 +V +INPUT OUTPUT 8 NC NC +V 9 --- NC NC 10 --- -V NC 11 --- NC --- 12 --- NULL --- 13 --- NC --- 14 --- NC --- 15 --- OUTPUT --- 16 --- NC --- 17 --- +V --- 18 --- NC --- 19 --- NC --- 20 --- NC --- NC = No connection FIGURE 1. Terminal connections.
STANDARD
SIZE
5962-88513 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 G
7
