Datasheet 6N137, HCNW137, HCNW2601, HCNW2611, HCPL-0600, HCPL-0601, HCPL-0611, HCPL-0630, HCPL-0631, HCPL-0661, HCPL-2601, HCPL-2611, HCPL-2630, HCPL-2631, HCPL-4661 (Broadcom) - 4
| 制造商 | Broadcom |
| 描述 | High CMR, High Speed TTL Compatible Optocouplers 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 |
| 页数 / 页 | 29 / 4 — Table 1 Ordering Information (Continued). Option. UL 5000. IEC/EN/DIN. … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |

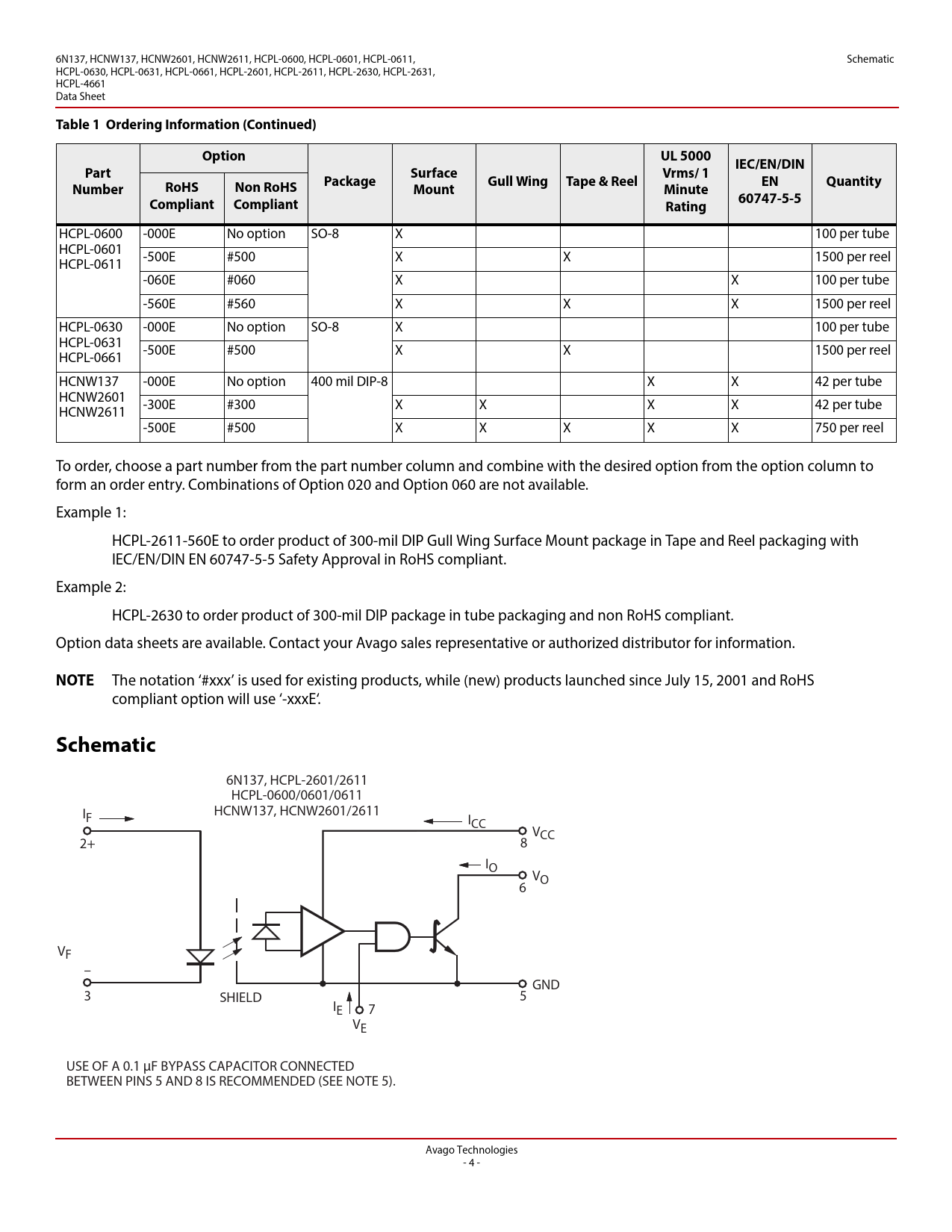

Table 1 Ordering Information (Continued). Option. UL 5000. IEC/EN/DIN. Part. Surface. Vrms/ 1. Package. Gull Wing. Tape & Reel
该数据表的模型线
文件文字版本
6N137, HCNW137, HCNW2601, HCNW2611, HCPL-0600, HCPL-0601, HCPL-0611, Schematic HCPL-0630, HCPL-0631, HCPL-0661, HCPL-2601, HCPL-2611, HCPL-2630, HCPL-2631, HCPL-4661 Data Sheet
Table 1 Ordering Information (Continued) Option UL 5000 IEC/EN/DIN Part Surface Vrms/ 1 Package Gull Wing Tape & Reel EN Quantity Number RoHS Non RoHS Mount Minute 60747-5-5 Compliant Compliant Rating
HCPL-0600 -000E No option SO-8 X 100 per tube HCPL-0601 -500E #500 X X 1500 per reel HCPL-0611 -060E #060 X X 100 per tube -560E #560 X X X 1500 per reel HCPL-0630 -000E No option SO-8 X 100 per tube HCPL-0631 -500E #500 X X 1500 per reel HCPL-0661 HCNW137 -000E No option 400 mil DIP-8 X X 42 per tube HCNW2601 -300E #300 X X X X 42 per tube HCNW2611 -500E #500 X X X X X 750 per reel To order, choose a part number from the part number column and combine with the desired option from the option column to form an order entry. Combinations of Option 020 and Option 060 are not available. Example 1: HCPL-2611-560E to order product of 300-mil DIP Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN EN 60747-5-5 Safety Approval in RoHS compliant. Example 2: HCPL-2630 to order product of 300-mil DIP package in tube packaging and non RoHS compliant. Option data sheets are available. Contact your Avago sales representative or authorized distributor for information.
NOTE
The notation ‘#xxx’ is used for existing products, while (new) products launched since July 15, 2001 and RoHS compliant option will use ‘-xxxE‘.
Schematic 6N137, HCPL-2601/2611 HCPL-0600/0601/0611 I HCNW137, HCNW2601/2611 F ICC VCC 2+ 8 IO VO 6 VF – GND 3 SHIELD 5 IE 7 VE USE OF A 0.1
μ
F BYPASS CAPACITOR CONNECTED BETWEEN PINS 5 AND 8 IS RECOMMENDED (SEE NOTE 5).
Avago Technologies - 4 - Document Outline High CMR, High Speed TTL Compatible Optocouplers Description Functional Diagram Features Applications Selection Guide Ordering Information Schematic Package Outline Drawings 8-pin DIP Package (6N137, HCPL-2601/11/30/31, HCPL-4661) 8-pin DIP Package with Gull Wing Surface Mount Option 300 (6N137, HCPL-2601/11/30/31, HCPL-4661) Small-Outline SO-8 Package (HCPL-0600/01/11/30/31/61) 8-Pin Widebody DIP Package (HCNW137, HCNW2601/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW137, HCNW2601/11) Reflow Soldering Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCPL-06xx Option 060 Only) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCPL-26xx; 46xx; 6N13x Option 060 Only) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW137/2601/2611 Only) Absolute Maximum Ratings (No Derating Required up to 85 °C) Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics Propagation Delay, Pulse-Width Distortion and Propagation Delay Skew
