KSZ8775CLX

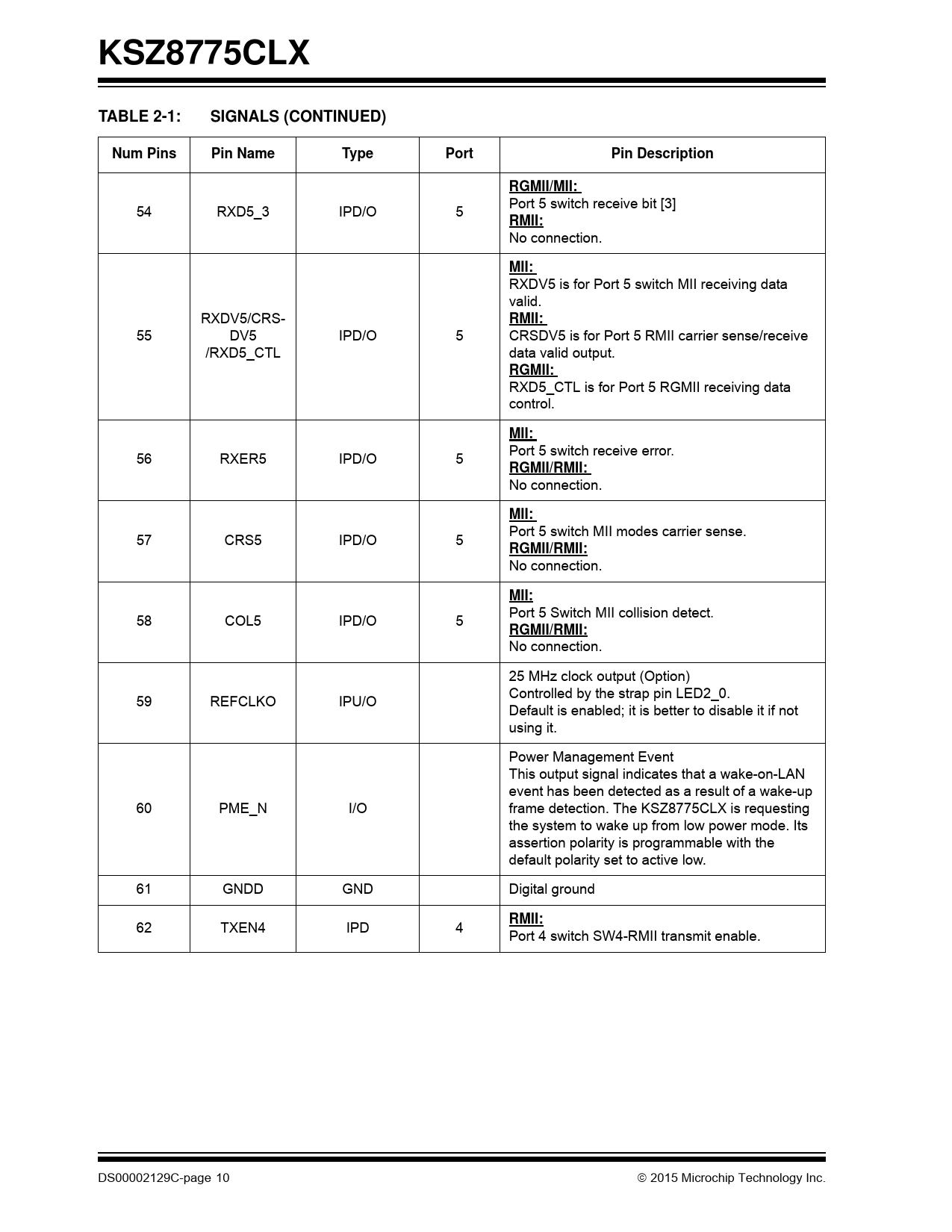

TABLE 2-1:
Num Pins 54 55 56 57 58 59 SIGNALS (CONTINUED)
Pin Name RXD5_3 RXDV5/CRSDV5
/RXD5_CTL RXER5 CRS5 COL5 REFCLKO Type IPD/O IPD/O IPD/O IPD/O IPD/O PME_N I/O 61 GNDD GND 62 TXEN4 IPD Pin Description 5 RGMII/MII:
Port 5 switch receive bit [3]
RMII:
No connection. 5 MII:
RXDV5 is for Port 5 switch MII receiving data
valid.
RMII:
CRSDV5 is for Port 5 RMII carrier sense/receive
data valid output.
RGMII:
RXD5_CTL is for Port 5 RGMII receiving data
control. 5 MII:
Port 5 switch receive error.
RGMII/RMII:
No connection. 5 MII:
Port 5 switch MII modes carrier sense.
RGMII/RMII:
No connection. 5 MII:
Port 5 Switch MII collision detect.
RGMII/RMII:
No connection.
25 MHz clock output (Option)
Controlled by the strap pin LED2_0.
Default is enabled; it is better to disable it if not
using it. IPU/O 60 DS00002129C-page 10 Port Power Management Event
This output signal indicates that a wake-on-LAN
event has been detected as a result of a wake-up
frame detection. The KSZ8775CLX is requesting
the system to wake up from low power mode. Its
assertion polarity is programmable with the
default polarity set to active low.
Digital ground
4 RMII:
Port 4 switch SW4-RMII transmit enable. 2015 Microchip Technology Inc.
