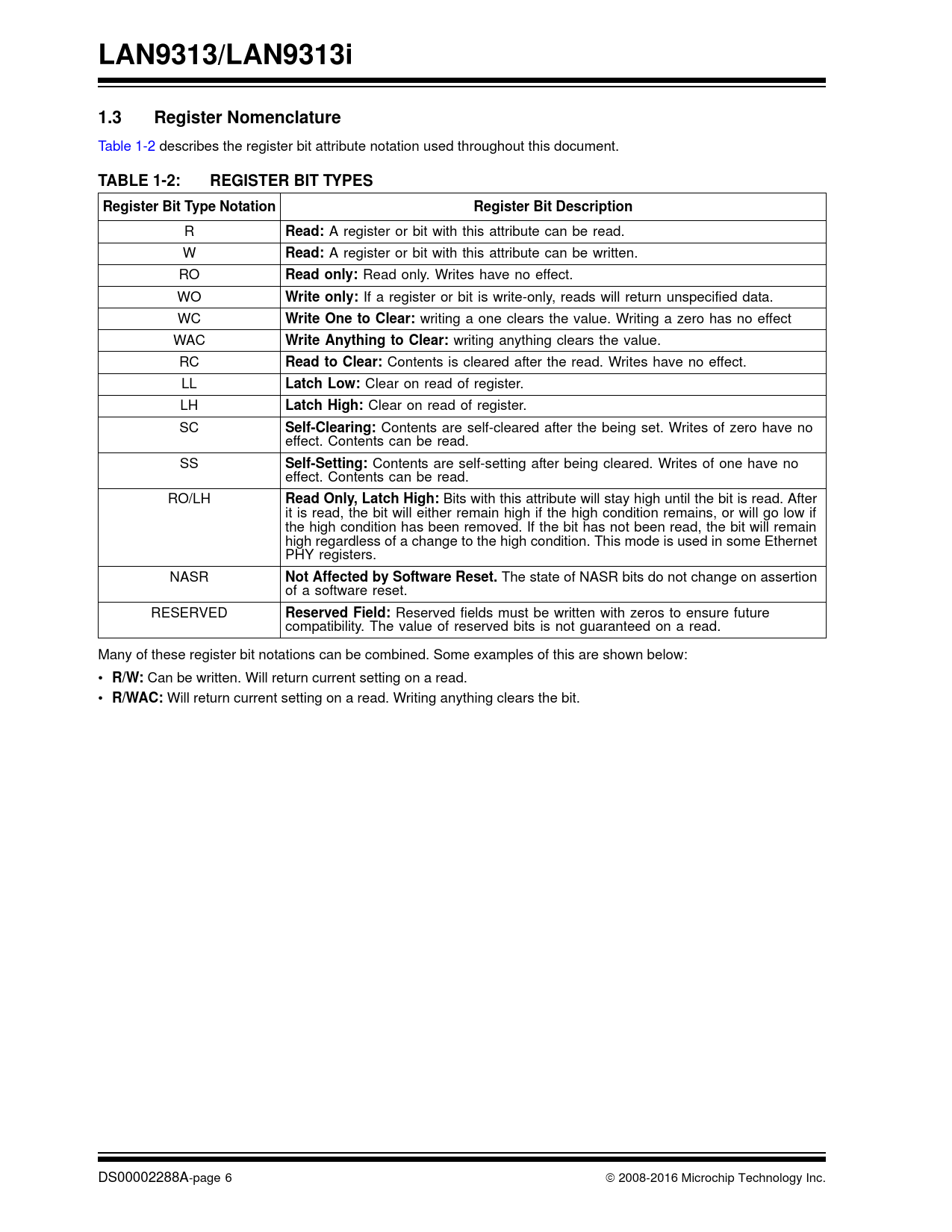

LAN9313/LAN9313i 1.3 Register Nomenclature
Table 1-2 describes the register bit attribute notation used throughout this document.
TABLE 1-2: REGISTER BIT TYPES Register Bit Type Notation Register Bit Description
R
Read:
A register or bit with this attribute can be read. W
Read:
A register or bit with this attribute can be written. RO
Read only:
Read only. Writes have no effect. WO
Write only:
If a register or bit is write-only, reads will return unspecified data. WC
Write One to Clear:
writing a one clears the value. Writing a zero has no effect WAC
Write Anything to Clear:
writing anything clears the value. RC
Read to Clear:
Contents is cleared after the read. Writes have no effect. LL
Latch Low:
Clear on read of register. LH
Latch High:
Clear on read of register. SC
Self-Clearing:
Contents are self-cleared after the being set. Writes of zero have no effect. Contents can be read. SS
Self-Setting:
Contents are self-setting after being cleared. Writes of one have no effect. Contents can be read. RO/LH
Read Only, Latch High:
Bits with this attribute will stay high until the bit is read. After it is read, the bit will either remain high if the high condition remains, or will go low if the high condition has been removed. If the bit has not been read, the bit will remain high regardless of a change to the high condition. This mode is used in some Ethernet PHY registers. NASR
Not Affected by Software Reset.
The state of NASR bits do not change on assertion of a software reset. RESERVED
Reserved Field:
Reserved fields must be written with zeros to ensure future compatibility. The value of reserved bits is not guaranteed on a read. Many of these register bit notations can be combined. Some examples of this are shown below: •
R/W:
Can be written. Will return current setting on a read. •
R/WAC:
Will return current setting on a read. Writing anything clears the bit. DS00002288A-page 6 2008-2016 Microchip Technology Inc. Document Outline 1.0 Preface 1.1 General Terms 1.2 Buffer Types TABLE 1-1: Buffer Types 1.3 Register Nomenclature TABLE 1-2: Register Bit Types 2.0 Introduction 2.1 General Description 2.2 Block Diagram FIGURE 2-1: Internal LAN9313/LAN9313i Block Diagram 2.2.1 System Clocks/Reset/PME Controller 2.2.2 System Interrupt Controller 2.2.3 Switch Fabric 2.2.4 Ethernet PHYs 2.2.5 PHY Management Interface (PMI) 2.2.6 SPI/I2C Slave Controller 2.2.7 SMI Slave Controller 2.2.8 EEPROM Controller/Loader 2.2.9 1588 Time Stamp 2.2.10 GPIO/LED Controller 2.3 Modes of Operation 2.3.1 MAC Mode 2.3.2 PHY Mode 2.3.3 Management Modes TABLE 2-1: LAN9313/LAN9313i Modes FIGURE 2-2: System Block Diagrams - MAC/PHY Modes of Operation 3.0 Pin Description and Configuration 3.1 Pin Diagrams 3.1.1 128-VTQFP Pin Diagram FIGURE 3-1: LAN9313 128-VTQFP Pin Assignments (TOP VIEW) 3.1.2 128-XVTQFP Pin Diagram FIGURE 3-2: LAN9313/LAN9313i 128-XVTQFP Pin Assignments (TOP VIEW) 3.2 Pin Descriptions TABLE 3-1: LAN Port 1 Pins TABLE 3-2: LAN Port 2 Pins TABLE 3-3: LAN Port 1 & 2 Power and Common Pins TABLE 3-4: LAN Port 0(External MII) Pins TABLE 3-5: Dedicated Configuration Strap Pins TABLE 3-6: EEPROM Pins TABLE 3-7: Serial Management Pins TABLE 3-8: Miscellaneous Pins TABLE 3-9: PLL Pins TABLE 3-10: Core and I/O Power and Ground Pins TABLE 3-11: No-Connect Pins 4.0 Clocking, Resets, and Power Management 4.1 Clocks 4.2 Resets TABLE 4-1: Reset Sources and Affected LAN9313/LAN9313i Circuitry 4.2.1 Chip-Level Resets 4.2.2 Multi-Module Resets 4.2.3 Single-Module Resets 4.2.4 Configuration Straps TABLE 4-2: Soft-Strap Configuration Strap Definitions TABLE 4-3: Hard-Strap Configuration Strap Definitions 4.3 Power Management 4.3.1 Port 1 & 2 PHY Power Management 5.0 System Interrupts 5.1 Functional Overview 5.2 Interrupt Sources FIGURE 5-1: Functional Interrupt Register Hierarchy 5.2.1 1588 Time Stamp Interrupts 5.2.2 Switch Fabric Interrupts 5.2.3 Ethernet PHY Interrupts 5.2.4 GPIO Interrupts 5.2.5 General Purpose Timer Interrupt 5.2.6 Software Interrupt 5.2.7 Device Ready Interrupt 6.0 Switch Fabric 6.1 Functional Overview 6.2 Switch Fabric CSRs 6.2.1 Switch Fabric CSR Writes FIGURE 6-1: Switch Fabric CSR Write Access Flow Diagram 6.2.2 Switch Fabric CSR Reads FIGURE 6-2: Switch Fabric CSR Read Access Flow Diagram 6.2.3 Flow Control Enable Logic TABLE 6-1: Switch Fabric Flow Control Enable Logic 6.3 10/100 Ethernet MACs 6.3.1 Receive MAC 6.3.2 Transmit MAC 6.4 Switch Engine (SWE) 6.4.1 MAC Address Lookup Table FIGURE 6-3: ALR Table Entry Structure 6.4.2 Forwarding Rules 6.4.3 Transmit Priority Queue Selection FIGURE 6-4: Switch Engine Transmit Queue Selection FIGURE 6-5: Switch Engine Transmit Queue Calculation 6.4.4 VLAN Support TABLE 6-2: VLAN Table Entry Structure 6.4.5 Spanning Tree Support TABLE 6-3: Spanning Tree States 6.4.6 Ingress Flow Metering and Coloring TABLE 6-4: Typical Ingress Rate Settings FIGURE 6-6: Switch Engine Ingress Flow Priority Selection FIGURE 6-7: Switch Engine Ingress Flow Priority Calculation 6.4.7 Broadcast Storm Control TABLE 6-5: Typical Broadcast Rate Settings 6.4.8 IPv4 IGMP Support 6.4.9 Port Mirroring 6.4.10 Host CPU Port Special Tagging 6.4.11 Counters 6.5 Buffer Manager (BM) 6.5.1 Packet Buffer Allocation 6.5.2 Random Early Discard (RED) 6.5.3 Transmit Queues 6.5.4 Transmit Priority Queue Servicing 6.5.5 Egress Rate Limiting (Leaky Bucket) TABLE 6-6: Typical Egress Rate Settings 6.5.6 Adding, Removing, and Changing VLAN Tags FIGURE 6-8: Hybrid Port Tagging and Un-tagging 6.5.7 Counters 6.6 Switch Fabric Interrupts 7.0 Ethernet PHYs 7.1 Functional Overview 7.1.1 PHY Addressing TABLE 7-1: Default PHY Serial MII Addressing 7.2 Port 1 & 2 PHYs FIGURE 7-1: Port x PHY Block Diagram 7.2.1 100BASE-TX Transmit FIGURE 7-2: 100BASE-TX Transmit Data Path TABLE 7-2: 4B/5B Code Table 7.2.2 100BASE-TX Receive FIGURE 7-3: 100BASE-TX Receive Data Path 7.2.3 10BASE-T Transmit 7.2.4 10BASE-T Receive 7.2.5 PHY Auto-negotiation 7.2.6 HP Auto-MDIX FIGURE 7-4: Direct Cable Connection vs. Cross-Over Cable Connection 7.2.7 MII MAC Interface 7.2.8 PHY Management Control TABLE 7-3: PHY Interrupt Sources 7.2.9 PHY Power-Down Modes 7.2.10 PHY Resets 7.2.11 LEDs 7.2.12 Required Ethernet Magnetics 7.3 Virtual PHY 7.3.1 Virtual PHY Auto-Negotiation 7.3.2 Virtual PHY in MAC Modes 7.3.3 Virtual PHY Resets 8.0 Serial Management 8.1 Functional Overview 8.2 I2C/Microwire Master EEPROM Controller TABLE 8-1: I2C/Microwire Master Serial Management Pins Characteristics 8.2.1 EEPROM Controller Operation FIGURE 8-1: EEPROM Access Flow Diagram 8.2.2 I2C EEPROM TABLE 8-2: I2C EEPROM Size Ranges FIGURE 8-2: I2C Cycle FIGURE 8-3: I2C EEPROM Addressing FIGURE 8-4: I2C EEPROM Byte Read FIGURE 8-5: I2C EEPROM Sequential Byte Reads FIGURE 8-6: I2C EEPROM Byte Write 8.2.3 Microwire EEPROM TABLE 8-3: Microwire EEPROM Size Ranges TABLE 8-4: Microwire Command Set for 7 Address Bits TABLE 8-5: Microwire Command Set for 9 Address Bits TABLE 8-6: Microwire Command Set for 11 Address Bits FIGURE 8-7: EEPROM ERASE Cycle FIGURE 8-8: EEPROM ERAL Cycle FIGURE 8-9: EEPROM EWDS Cycle FIGURE 8-10: EEPROM EWEN Cycle FIGURE 8-11: EEPROM READ Cycle FIGURE 8-12: EEPROM WRITE Cycle FIGURE 8-13: EEPROM WRAL Cycle 8.2.4 EEPROM Loader TABLE 8-7: EEPROM Contents Format Overview FIGURE 8-14: EEPROM Loader Flow Diagram TABLE 8-8: EEPROM Configuration Bits 8.3 SPI/I2C Slave Controller TABLE 8-9: SPI / I2C Slave Serial Management Pins Characteristics 8.4 SPI Slave Operation TABLE 8-10: Supported SPI Instructions 8.4.1 SPI Read Sequence FIGURE 8-15: SPI Reads 8.4.2 SPI Write Sequence FIGURE 8-16: SPI Writes 8.5 I2C Slave Operation 8.5.1 I2C Slave Command Format FIGURE 8-17: I2C Slave Addressing 8.5.2 I2C Slave Read Sequence FIGURE 8-18: I2C Slave Reads 8.5.3 I2C Slave Write Sequence FIGURE 8-19: I2C Slave Writes 9.0 MII Management 9.1 Functional Overview 9.2 SMI Slave Controller TABLE 9-1: SMI Frame Format 9.2.1 Read Sequence 9.2.2 Write Sequence 9.3 PHY Management Interface (PMI) TABLE 9-2: MII Management Frame Format 9.3.1 EEPROM Loader PHY Register Access 9.4 MII Mode Multiplexer 9.4.1 MAC Mode Unmanaged FIGURE 9-1: MII Mux Management Path Connections - MAC Mode Unmanaged 9.4.2 MAC Mode SMI Managed FIGURE 9-2: MII Mux Management Path Connections - MAC Mode SMI Managed 9.4.3 MAC Mode I2C/SPI Managed FIGURE 9-3: MII Mux Management Path Connections - MAC Mode I2C/SPI Managed 9.4.4 PHY Mode Unmanaged FIGURE 9-4: MII Mux Management Path Connections - PHY Mode Unmanaged 9.4.5 PHY Mode SMI Managed FIGURE 9-5: MII Mux Management Path Connections - PHY Mode SMI Managed 9.4.6 PHY Mode I2C/SPI Managed FIGURE 9-6: MII Mux Management Path Connections - PHY Mode I2C/SPI Managed 10.0 IEEE 1588 Hardware Time Stamp Unit 10.1 Functional Overview 10.1.1 IEEE 1588 10.1.2 Block Diagram FIGURE 10-1: IEEE 1588 Block Diagram 10.2 IEEE 1588 Time Stamp TABLE 10-1: IEEE 1588 Message Type Detection FIGURE 10-2: IEEE 1588 Message Time Stamp Point TABLE 10-2: Time Stamp Capture Delay 10.2.1 Capture Locking 10.2.2 PTP Message Detection TABLE 10-3: PTP Multicast Addresses 10.3 IEEE 1588 Clock TABLE 10-4: Typical IEEE 1588 Clock Addend Values 10.4 IEEE 1588 Clock/Events 10.5 IEEE 1588 GPIOs 10.6 IEEE 1588 Interrupts 11.0 General Purpose Timer & Free-Running Clock 11.1 General Purpose Timer 11.2 Free-Running Clock 12.0 GPIO/LED Controller 12.1 Functional Overview 12.2 GPIO Operation 12.2.1 GPIO IEEE 1588 Timestamping 12.2.2 GPIO Interrupts 12.3 LED Operation TABLE 12-1: LED Operation as a Function of LED_CFG[9:8] 13.0 Register Descriptions FIGURE 13-1: LAN9313/LAN9313i Base Register Memory Map 13.1 System Control and Status Registers TABLE 13-1: System Control and Status Registers 13.1.1 Interrupts 13.1.2 GPIO/LED 13.1.3 EEPROM 13.1.4 IEEE 1588 13.1.5 Switch Fabric TABLE 13-2: SWITCH_MAC_ADDRL, SWITCH_MAC_ADDRH, and EEPROM Byte Ordering FIGURE 13-2: Example SWITCH_MAC_ADDRL, SWITCH_MAC_ADDRH, and EEPROM Setup TABLE 13-3: Switch Fabric CSR to SWITCH_CSR_DIRECT_DATA Address Range Map 13.1.6 PHY Management Interface (PMI) 13.1.7 Virtual PHY TABLE 13-4: Virtual PHY MII Serially Adressable Register Index TABLE 13-5: Emulated Link Partner Pause Flow Control Ability Default Values TABLE 13-6: Emulated Link Partner Default Advertised Ability 13.1.8 Miscellaneous 13.2 Ethernet PHY Control and Status Registers 13.2.1 Virtual PHY Registers 13.2.2 Port 1 & 2 PHY Registers TABLE 13-7: Port 1 & 2 PHY MII Serially Adressable Registers TABLE 13-8: 10BASE-T Full Duplex Advertisement Default Value TABLE 13-9: 10BASE-T Half Duplex Advertisement Bit Default Value TABLE 13-10: MODE[2:0] Definitions TABLE 13-11: Auto-MDIX Enable and Auto-MDIX State Bit Functionality 13.3 Switch Fabric Control and Status Registers TABLE 13-12: Indirectly Accessible Switch Control and Status Registers 13.3.1 General Switch CSRs 13.3.2 Switch Port 0, Port 1, and Port 2 CSRs 13.3.3 Switch Engine CSRs TABLE 13-13: Metering/Color Table Register Descriptions 13.3.4 Buffer Manager CSRs 14.0 Operational Characteristics 14.1 Absolute Maximum Ratings* 14.2 Operating Conditions** 14.3 Power Consumption TABLE 14-1: Supply and Current (10BASE-T Full-Duplex) TABLE 14-2: Supply and Current (100BASE-TX Full-Duplex) 14.4 DC Specifications TABLE 14-3: I/O Buffer Characteristics TABLE 14-4: 100BASE-TX Transceiver Characteristics TABLE 14-5: 10BASE-T Transceiver Characteristics 14.5 AC Specifications 14.5.1 Equivalent Test Load FIGURE 14-1: Output Equivalent Test Load 14.5.2 Reset and Configuration Strap Timing FIGURE 14-2: nRST Reset Pin Timing TABLE 14-6: nRST Reset Pin Timing Values 14.5.3 Power-On Configuration Strap Valid Timing FIGURE 14-3: Power-On Configuration Strap Latching Timing TABLE 14-7: Power-On Configuration Strap Latching Timing Values 14.5.4 Microwire Timing FIGURE 14-4: Microwire Timing TABLE 14-8: Microwire Timing Values 14.5.5 SPI Slave Timing FIGURE 14-5: SPI Slave Timing TABLE 14-9: SPI Slave Timing Values 14.6 Clock Circuit TABLE 14-10: LAN9313/LAN9313i Crystal Specifications 15.0 Package Outlines 15.1 128-VTQFP Package Outline FIGURE 15-1: 128-vTQFP, 14x14x1.0mm body, 0.4mm Pitch FIGURE 15-2: 128-VTQFP Recommended PCB Land Pattern 15.2 128-XVTQFP Package Outline FIGURE 15-3: 128-XVTQFP 14x14x1.0mm Body, 0.4mm Pitch Appendix A: Data sheet Revision History The Microchip Web Site Customer Change Notification Service Customer Support Product Identification System Worldwide Sales and Service
