Datasheet SLA (Songle Relay) - 2
| 制造商 | Songle Relay |
| 描述 | SUBMINATURE HIGH POWER RELAY 4P 16A/20A/30A |
| 页数 / 页 | 2 / 2 — CQC |
| 文件格式/大小 | PDF / 3.8 Mb |
| 文件语言 | 英语 |
CQC
该数据表的模型线
- SLA-05VDC-FL-A SLA-05VDC-FL-B SLA-05VDC-FL-C SLA-05VDC-SL-A SLA-05VDC-SL-B SLA-05VDC-SL-C SLA-06VDC-FL-A SLA-06VDC-FL-B SLA-06VDC-FL-C SLA-06VDC-SL-A SLA-06VDC-SL-B SLA-06VDC-SL-C SLA-09VDC-FL-A SLA-09VDC-FL-B SLA-09VDC-FL-C SLA-09VDC-SL-A SLA-09VDC-SL-B SLA-09VDC-SL-C SLA-12VDC-FL-A SLA-12VDC-FL-B SLA-12VDC-FL-C SLA-12VDC-SL-A SLA-12VDC-SL-B SLA-12VDC-SL-C SLA-18VDC-FL-A SLA-18VDC-FL-B SLA-18VDC-FL-C SLA-18VDC-SL-A SLA-18VDC-SL-B SLA-18VDC-SL-C SLA-24VDC-FL-A SLA-24VDC-FL-B SLA-24VDC-FL-C SLA-24VDC-SL-A SLA-24VDC-SL-B SLA-24VDC-SL-C SLA-36VDC-FL-A SLA-36VDC-FL-B SLA-36VDC-FL-C SLA-36VDC-SL-A SLA-36VDC-SL-B SLA-36VDC-SL-C SLA-48VDC-FL-A SLA-48VDC-FL-B SLA-48VDC-FL-C SLA-48VDC-SL-A SLA-48VDC-SL-B SLA-48VDC-SL-C
文件文字版本
SLA Series SUBMINATURE HIGH POWER RELAY 4P 16A/20A/30A Safety Approval Ratings CQC08002027666
CQC

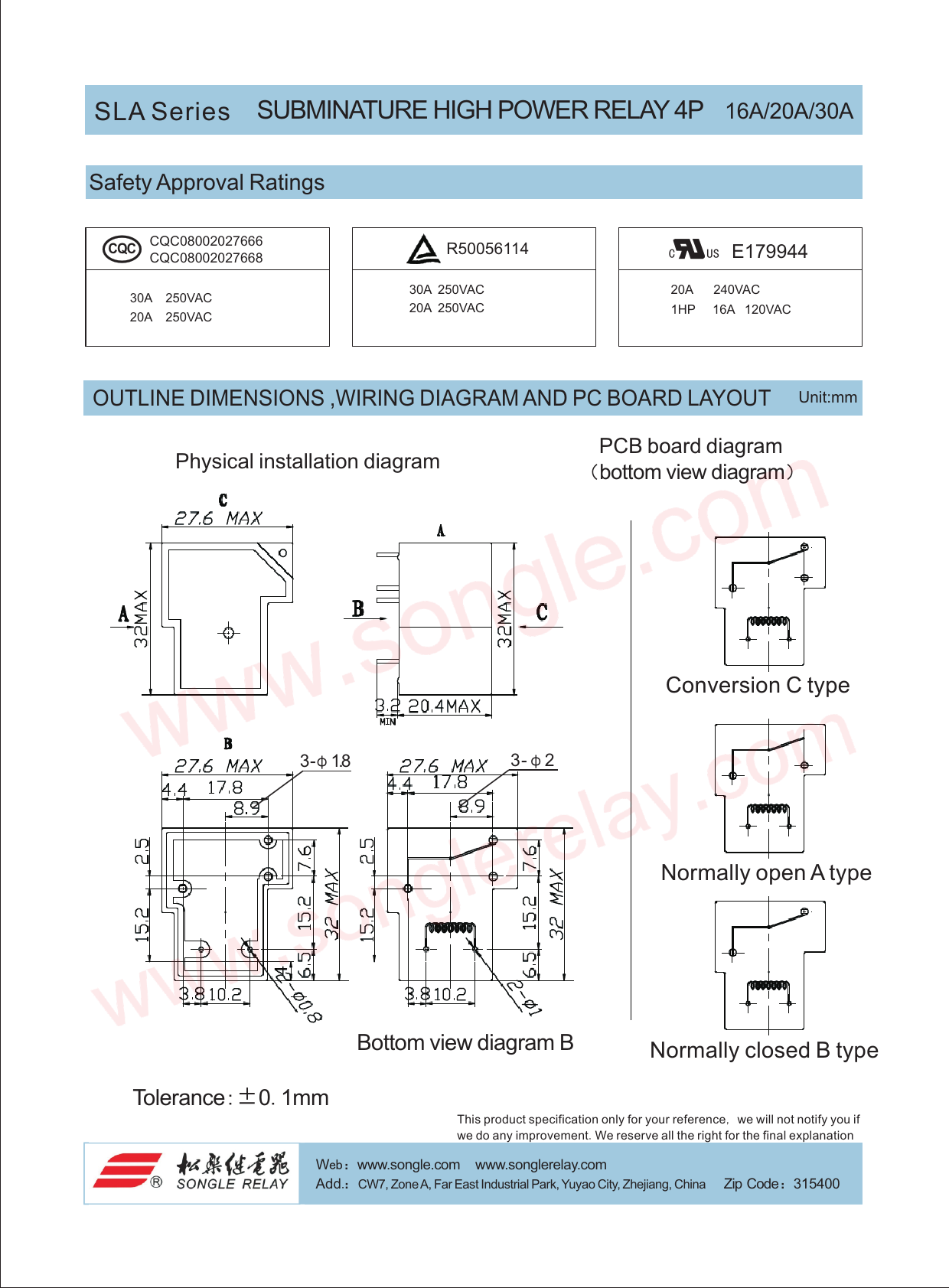

R50056114 C US E179944 CQC08002027668 30A 250VAC 20A 240VAC 30A 250VAC 20A 250VAC 1HP 16A 120VAC 20A 250VAC OUTLINE DIMENSIONS ,WIRING DIAGRAM AND PC BOARD LAYOUT Unit:mm PCB board diagram Physical installation diagram （bottom view diagram） Conversion C type 3-φ1.8 3-φ2 Normally open A type Bottom view diagram B Normally closed B type Tolerance:±0.1mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
