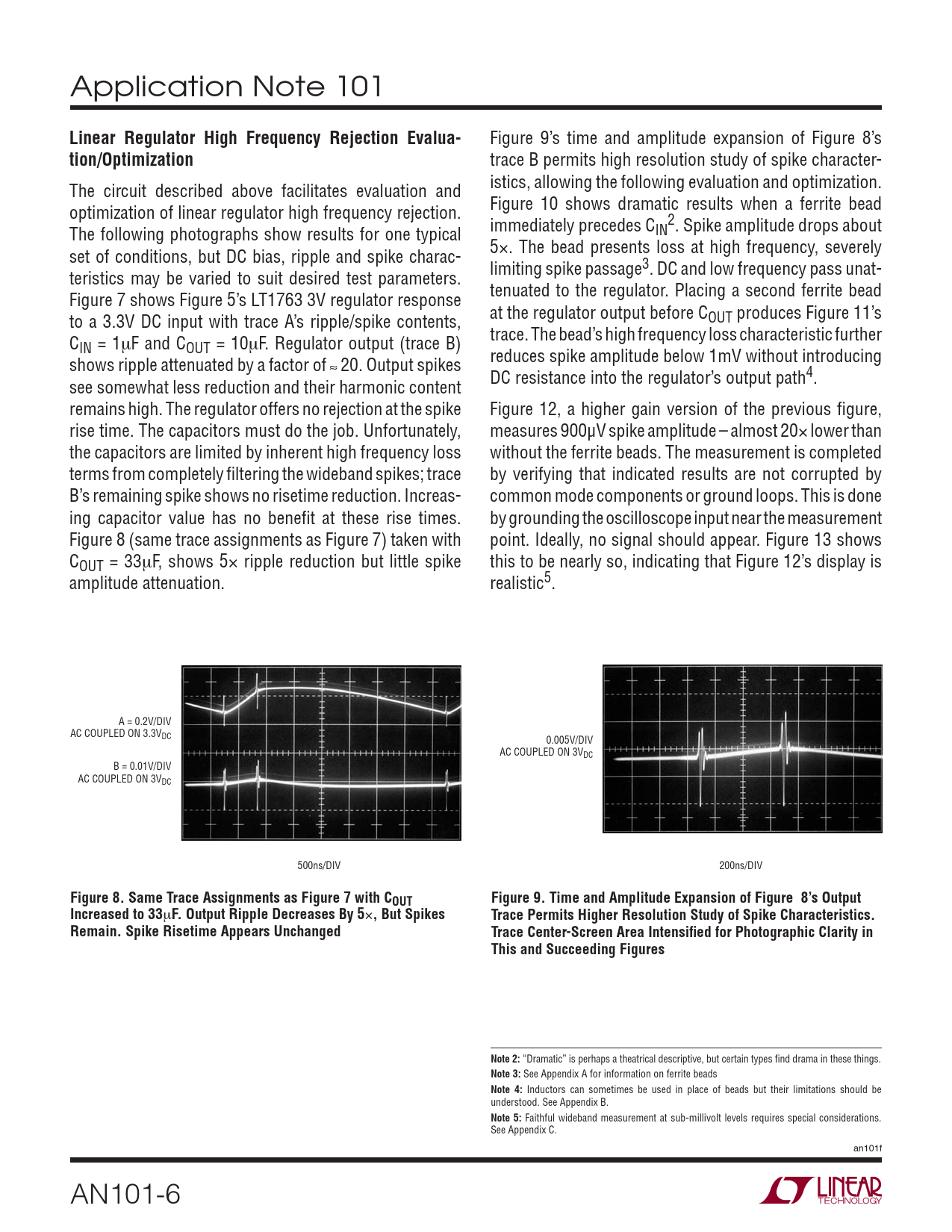

Application Note 101
Linear Regulator High Frequency Rejection Evalua-
Figure 9’s time and amplitude expansion of Figure 8’s
tion/Optimization
trace B permits high resolution study of spike character- istics, allowing the following evaluation and optimization. The circuit described above facilitates evaluation and Figure 10 shows dramatic results when a ferrite bead optimization of linear regulator high frequency rejection. immediately precedes C 2. Spike amplitude drops about The following photographs show results for one typical IN 5 set of conditions, but DC bias, ripple and spike charac- ×. The bead presents loss at high frequency, severely limiting spike passage3. DC and low frequency pass unat- teristics may be varied to suit desired test parameters. tenuated to the regulator. Placing a second ferrite bead Figure 7 shows Figure 5’s LT1763 3V regulator response at the regulator output before C to a 3.3V DC input with trace A’s ripple/spike contents, OUT produces Figure 11’s trace. The bead’s high frequency loss characteristic further CIN = 1μF and COUT = 10μF. Regulator output (trace B) reduces spike amplitude below 1mV without introducing shows ripple attenuated by a factor of ≈ 20. Output spikes DC resistance into the regulator’s output path4. see somewhat less reduction and their harmonic content remains high. The regulator offers no rejection at the spike Figure 12, a higher gain version of the previous fi gure, rise time. The capacitors must do the job. Unfortunately, measures 900µV spike amplitude – almost 20× lower than the capacitors are limited by inherent high frequency loss without the ferrite beads. The measurement is completed terms from completely fi ltering the wideband spikes; trace by verifying that indicated results are not corrupted by B’s remaining spike shows no risetime reduction. Increas- common mode components or ground loops. This is done ing capacitor value has no benefi t at these rise times. by grounding the oscilloscope input near the measurement Figure 8 (same trace assignments as Figure 7) taken with point. Ideally, no signal should appear. Figure 13 shows COUT = 33μF, shows 5× ripple reduction but little spike this to be nearly so, indicating that Figure 12’s display is amplitude attenuation. realistic5. A = 0.2V/DIV AC COUPLED ON 3.3VDC 0.005V/DIV AC COUPLED ON 3VDC B = 0.01V/DIV AC COUPLED ON 3VDC 500ns/DIV 200ns/DIV
Figure 8. Same Trace Assignments as Figure 7 with COUT Figure 9. Time and Amplitude Expansion of Figure 8’s Output Increased to 33
μ
F. Output Ripple Decreases By 5
×
, But Spikes Trace Permits Higher Resolution Study of Spike Characteristics. Remain. Spike Risetime Appears Unchanged Trace Center-Screen Area Intensifi ed for Photographic Clarity in This and Succeeding Figures Note 2:
“Dramatic” is perhaps a theatrical descriptive, but certain types fi nd drama in these things.
Note 3:
See Appendix A for information on ferrite beads
Note 4:
Inductors can sometimes be used in place of beads but their limitations should be understood. See Appendix B.
Note 5:
Faithful wideband measurement at sub-millivolt levels requires special considerations. See Appendix C. an101f AN101-6
