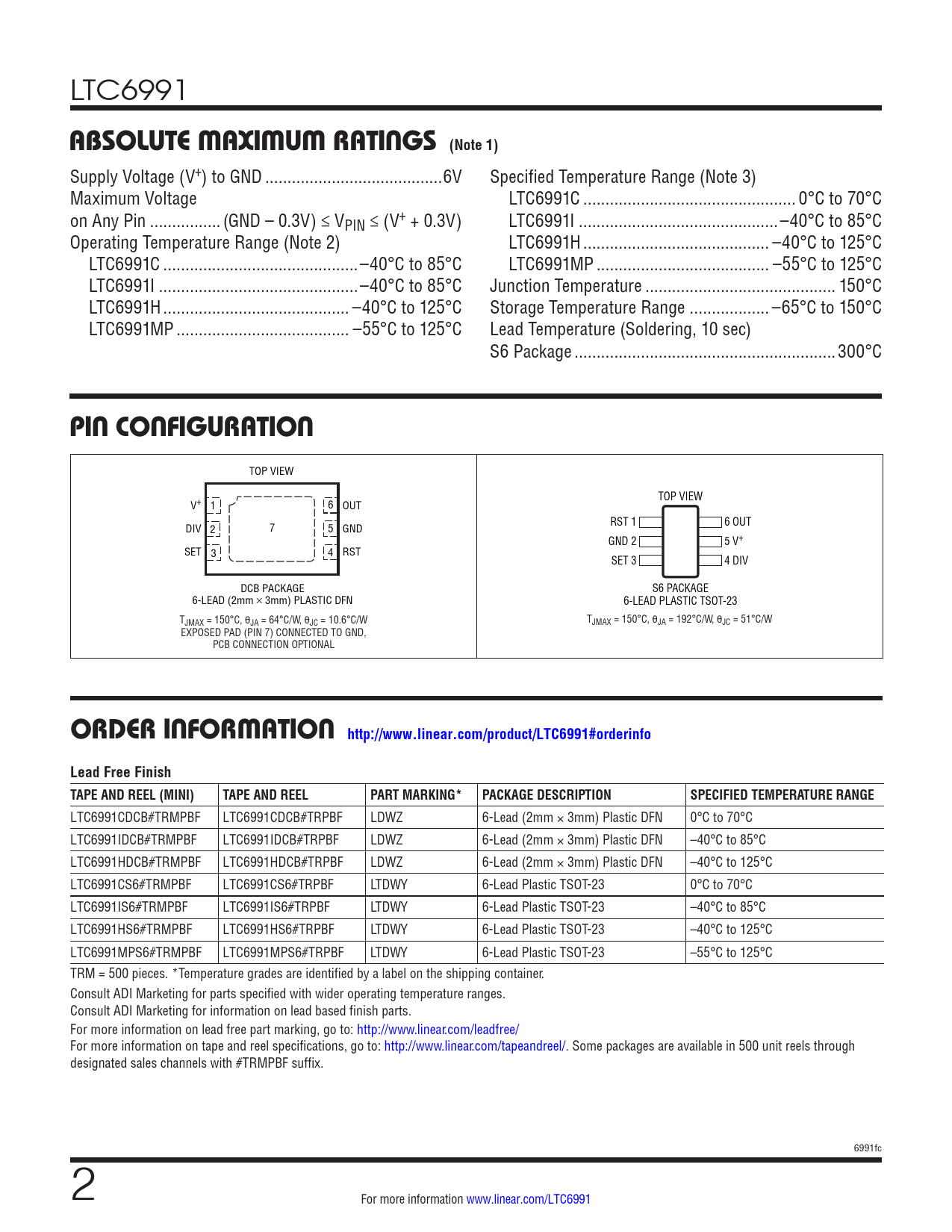

LTC6991
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+) to GND ..6V Specified Temperature Range (Note 3) Maximum Voltage LTC6991C .. 0°C to 70°C on Any Pin .. (GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6991I ...–40°C to 85°C Operating Temperature Range (Note 2) LTC6991H .. –40°C to 125°C LTC6991C ..–40°C to 85°C LTC6991MP ... –55°C to 125°C LTC6991I ...–40°C to 85°C Junction Temperature ... 150°C LTC6991H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C LTC6991MP ... –55°C to 125°C Lead Temperature (Soldering, 10 sec) S6 Package ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW V+ 1 6 OUT DIV RST 1 6 OUT 2 7 5 GND GND 2 5 V+ SET 3 4 RST SET 3 4 DIV DCB PACKAGE S6 PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 64°C/W, θJC = 10.6°C/W TJMAX = 150°C, θJA = 192°C/W, θJC = 51°C/W EXPOSED PAD (PIN 7) CONNECTED TO GND, PCB CONNECTION OPTIONAL
ORDER INFORMATION http://www.linear.com/product/LTC6991#orderinfo Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6991CDCB#TRMPBF LTC6991CDCB#TRPBF LDWZ 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6991IDCB#TRMPBF LTC6991IDCB#TRPBF LDWZ 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6991HDCB#TRMPBF LTC6991HDCB#TRPBF LDWZ 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6991CS6#TRMPBF LTC6991CS6#TRPBF LTDWY 6-Lead Plastic TSOT-23 0°C to 70°C LTC6991IS6#TRMPBF LTC6991IS6#TRPBF LTDWY 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6991HS6#TRMPBF LTC6991HS6#TRPBF LTDWY 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6991MPS6#TRMPBF LTC6991MPS6#TRPBF LTDWY 6-Lead Plastic TSOT-23 –55°C to 125°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult ADI Marketing for parts specified with wider operating temperature ranges. Consult ADI Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 6991fc 2 For more information www.linear.com/LTC6991 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
