Datasheet HMC631LP3, 631LP3E (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | GaAs HBT Vector Modulator 1.8 -2.7 GHz |
| 页数 / 页 | 8 / 7 — HMC631LP3 / 631LP3E. GaAs HBT VECTOR. MODULATOR 1.8 - 2.7 MHz. Evaluation … |
| 文件格式/大小 | PDF / 848 Kb |
| 文件语言 | 英语 |

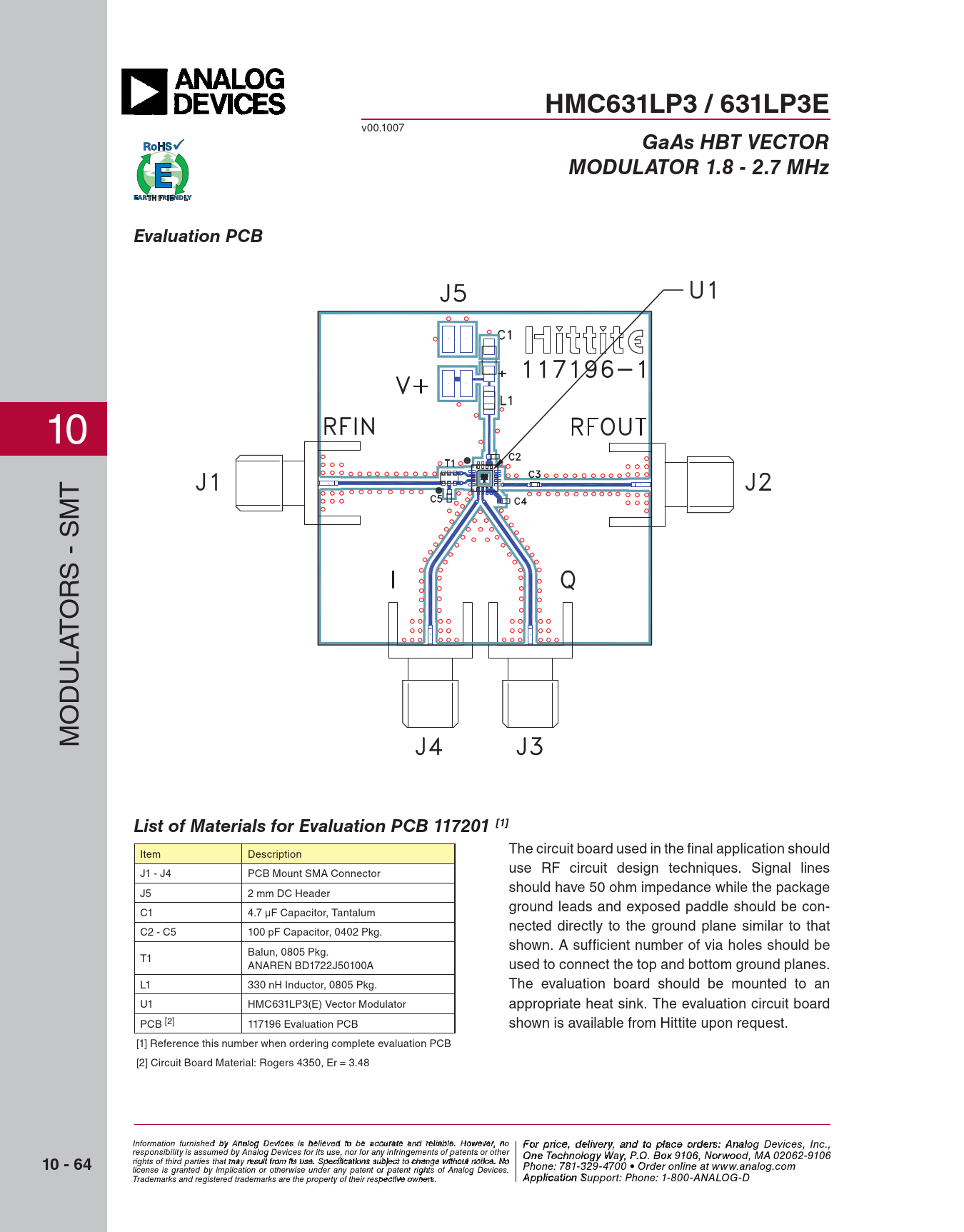

HMC631LP3 / 631LP3E. GaAs HBT VECTOR. MODULATOR 1.8 - 2.7 MHz. Evaluation PCB. List of Materials for Evaluation PCB 117201 [1]
该数据表的模型线
文件文字版本
HMC631LP3 / 631LP3E
v00.1007
GaAs HBT VECTOR MODULATOR 1.8 - 2.7 MHz Evaluation PCB
10 T - SM S R O T A L U MOD
List of Materials for Evaluation PCB 117201 [1]
The circuit board used in the fi nal application should Item Description use RF circuit design techniques. Signal lines J1 - J4 PCB Mount SMA Connector should have 50 ohm impedance while the package J5 2 mm DC Header ground leads and exposed paddle should be con- C1 4.7 μF Capacitor, Tantalum nected directly to the ground plane similar to that C2 - C5 100 pF Capacitor, 0402 Pkg. shown. A sufficient number of via holes should be Balun, 0805 Pkg. T1 ANAREN BD1722J50100A used to connect the top and bottom ground planes. L1 330 nH Inductor, 0805 Pkg. The evaluation board should be mounted to an U1 HMC631LP3(E) Vector Modulator appropriate heat sink. The evaluation circuit board PCB [2] 117196 Evaluation PCB shown is available from Hittite upon request. [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Rogers 4350, Er = 3.48 Information furnishe F d o b r pr y Analic o e g , D d evi e ce li s v i e s brey li , a eve n d t d to p o be acc luac rat e o e an r d d rele ia rs ble , p . Hole we a ves r, e n c o ont Fo ac r p t H rice i, tt dit ele M iveryic , r a owa nd to ve C plac o e r o p rdo e r r at s: i Ao n n al:og Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
