Datasheet ADL5390 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | RF/IF Vector Multiplier |
| 页数 / 页 | 23 / 5 — Data Sheet. ADL5390. ABSOLUTE MAXIMUM RATINGS Table 2. Parameters. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 653 Kb |
| 文件语言 | 英语 |

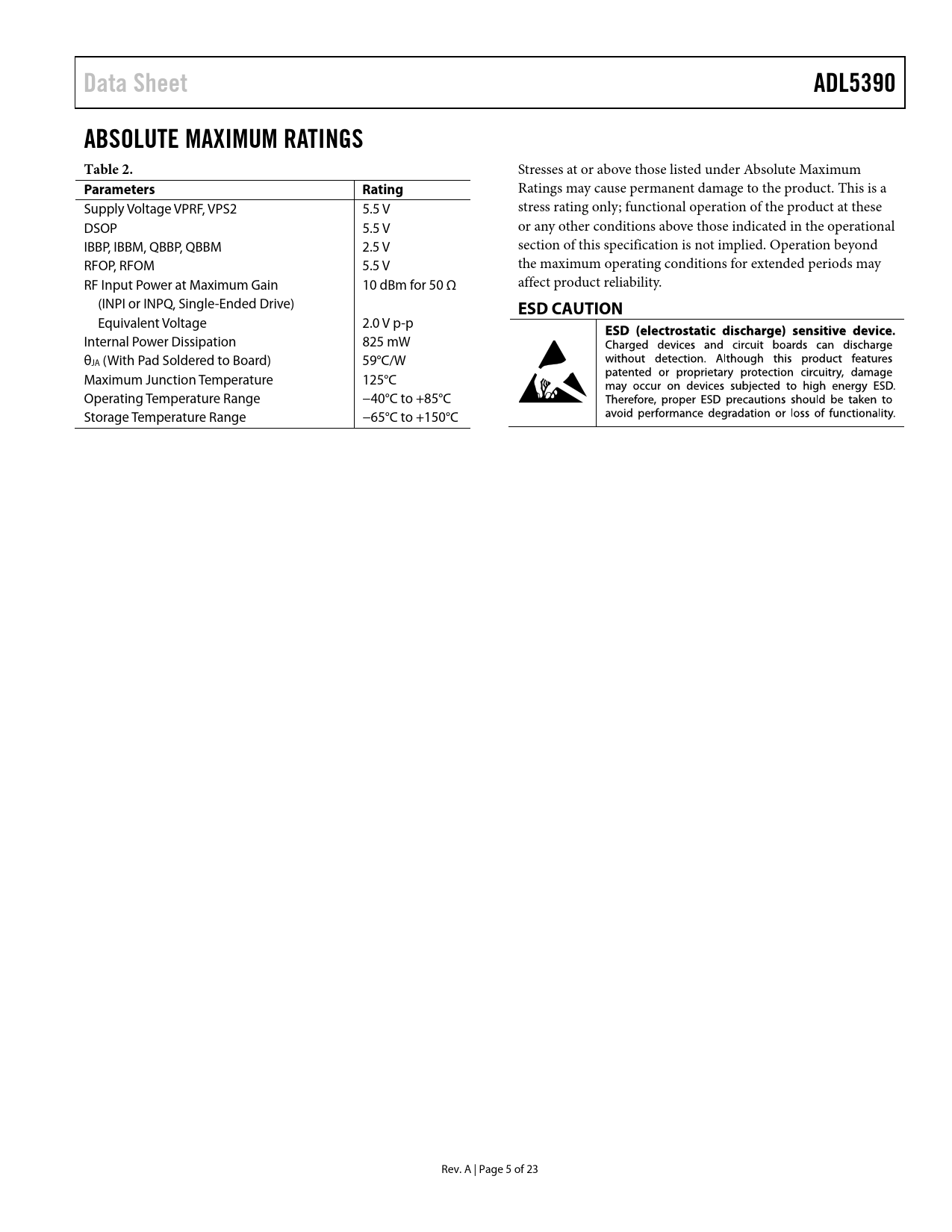

Data Sheet. ADL5390. ABSOLUTE MAXIMUM RATINGS Table 2. Parameters. Rating. ESD CAUTION
该数据表的模型线
文件文字版本
Data Sheet ADL5390 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameters Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage VPRF, VPS2 5.5 V stress rating only; functional operation of the product at these DSOP 5.5 V or any other conditions above those indicated in the operational IBBP, IBBM, QBBP, QBBM 2.5 V section of this specification is not implied. Operation beyond RFOP, RFOM 5.5 V the maximum operating conditions for extended periods may RF Input Power at Maximum Gain 10 dBm for 50 Ω affect product reliability. (INPI or INPQ, Single-Ended Drive)
ESD CAUTION
Equivalent Voltage 2.0 V p-p Internal Power Dissipation 825 mW θJA (With Pad Soldered to Board) 59°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. A | Page 5 of 23 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics General Structure Theory of Operation Noise and Distortion Applications Information Using the ADL5390 RF Input and Matching RF Output and Matching Driving the I-Q Baseband Gain Controls Interfacing to High Speed DACs Generalized Modulator Vector Modulator Vector Modulator Example—CDMA2000 Quadrature Modulator RF Multiplexer Evaluation Board Outline Dimensions Ordering Guide
