Datasheet ARL-5213RGBC/4A (Arlight)
| 制造商 | Arlight |
| 描述 | Ultra bright LED RGB, Red-Green 525nm- Blue, 2000-2700mcd |
| 页数 / 页 | 4 / 1 — ARL-5213RGBC/4A. Features. Applications. Description. Package Dimensions. … |
| 文件格式/大小 | PDF / 221 Kb |
| 文件语言 | 英语 |
ARL-5213RGBC/4A. Features. Applications. Description. Package Dimensions. Usage Notes. Notes:. Device Selection Guide. Chip. Part No
该数据表的模型线
文件文字版本

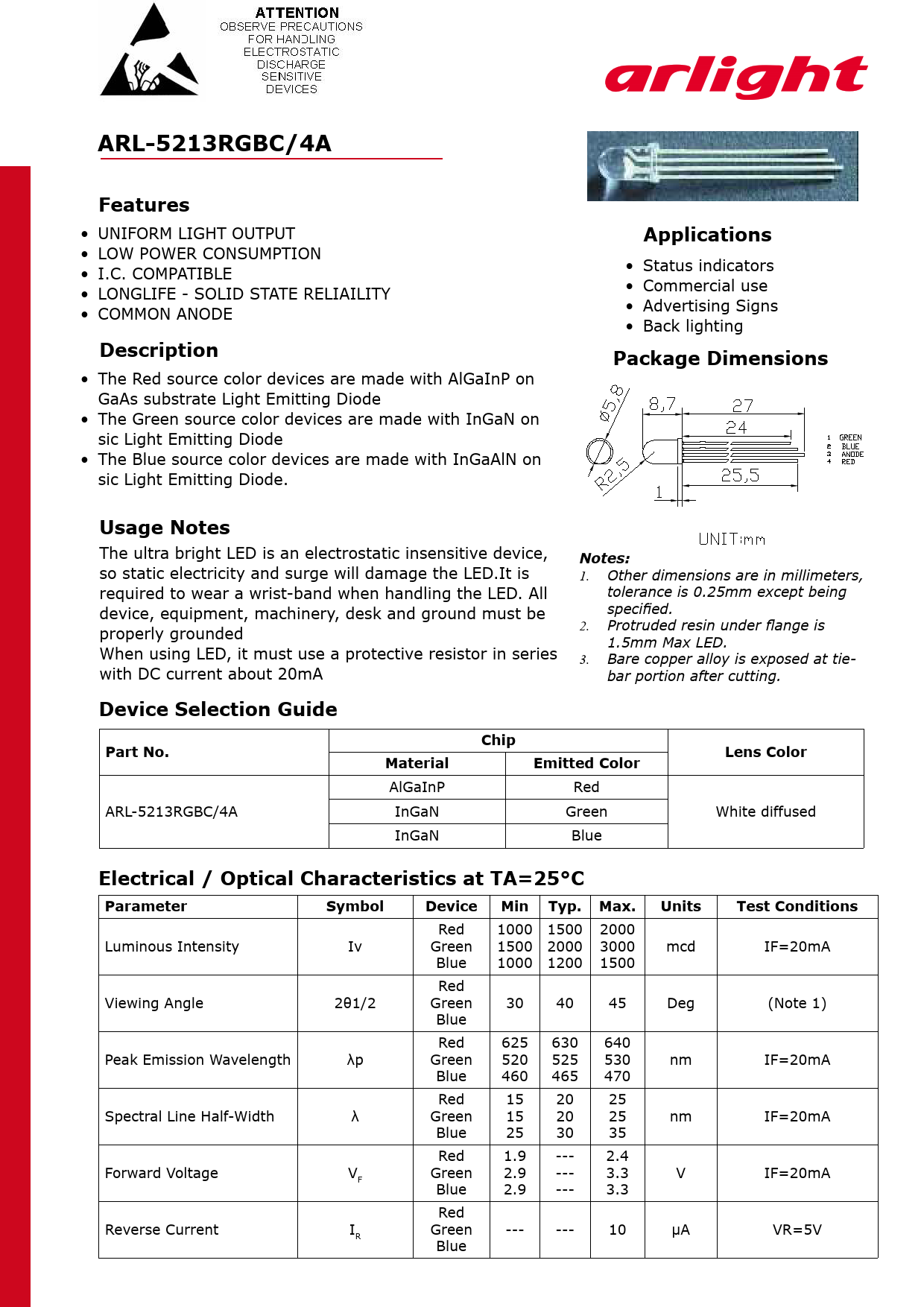

ARL-5213RGBC/4A Features
• UNIFORM LIGHT OUTPUT
Applications
• LOW POWER CONSUMPTION • I.C. COMPATIBLE • Status indicators • LONGLIFE - SOLID STATE RELIAILITY • Commercial use • COMMON ANODE • Advertising Signs • Back lighting
Description Package Dimensions
• The Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode • The Green source color devices are made with InGaN on sic Light Emitting Diode • The Blue source color devices are made with InGaAlN on sic Light Emitting Diode.
Usage Notes
The ultra bright LED is an electrostatic insensitive device,
Notes:
so static electricity and surge will damage the LED.It is 1. Other dimensions are in millimeters, required to wear a wrist-band when handling the LED. All tolerance is 0.25mm except being device, equipment, machinery, desk and ground must be specified. properly grounded 2. Protruded resin under flange is 1.5mm Max LED. When using LED, it must use a protective resistor in series 3. Bare copper alloy is exposed at tie- with DC current about 20mA bar portion after cutting.
Device Selection Guide Chip Part No. Lens Color Material Emitted Color
AlGaInP Red ARL-5213RGBC/4A InGaN Green White diffused InGaN Blue
Electrical / Optical Characteristics at TA=25°C Parameter Symbol Device Min Typ. Max. Units Test Conditions
Red 1000 1500 2000 Luminous Intensity Iv Green 1500 2000 3000 mcd IF=20mA Blue 1000 1200 1500 Red Viewing Angle 2θ1/2 Green 30 40 45 Deg (Note 1) Blue Red 625 630 640 Peak Emission Wavelength λp Green 520 525 530 nm IF=20mA Blue 460 465 470 Red 15 20 25 Spectral Line Half-Width λ Green 15 20 25 nm IF=20mA Blue 25 30 35 Red 1.9 --- 2.4 Forward Voltage V Green 2.9 --- 3.3 V IF=20mA F Blue 2.9 --- 3.3 Red Reverse Current I Green --- --- 10 µA VR=5V R Blue
• UNIFORM LIGHT OUTPUT
Applications
• LOW POWER CONSUMPTION • I.C. COMPATIBLE • Status indicators • LONGLIFE - SOLID STATE RELIAILITY • Commercial use • COMMON ANODE • Advertising Signs • Back lighting
Description Package Dimensions
• The Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode • The Green source color devices are made with InGaN on sic Light Emitting Diode • The Blue source color devices are made with InGaAlN on sic Light Emitting Diode.
Usage Notes
The ultra bright LED is an electrostatic insensitive device,
Notes:
so static electricity and surge will damage the LED.It is 1. Other dimensions are in millimeters, required to wear a wrist-band when handling the LED. All tolerance is 0.25mm except being device, equipment, machinery, desk and ground must be specified. properly grounded 2. Protruded resin under flange is 1.5mm Max LED. When using LED, it must use a protective resistor in series 3. Bare copper alloy is exposed at tie- with DC current about 20mA bar portion after cutting.
Device Selection Guide Chip Part No. Lens Color Material Emitted Color
AlGaInP Red ARL-5213RGBC/4A InGaN Green White diffused InGaN Blue
Electrical / Optical Characteristics at TA=25°C Parameter Symbol Device Min Typ. Max. Units Test Conditions
Red 1000 1500 2000 Luminous Intensity Iv Green 1500 2000 3000 mcd IF=20mA Blue 1000 1200 1500 Red Viewing Angle 2θ1/2 Green 30 40 45 Deg (Note 1) Blue Red 625 630 640 Peak Emission Wavelength λp Green 520 525 530 nm IF=20mA Blue 460 465 470 Red 15 20 25 Spectral Line Half-Width λ Green 15 20 25 nm IF=20mA Blue 25 30 35 Red 1.9 --- 2.4 Forward Voltage V Green 2.9 --- 3.3 V IF=20mA F Blue 2.9 --- 3.3 Red Reverse Current I Green --- --- 10 µA VR=5V R Blue
