Datasheet ARL-5213RGBC/4C (Arlight)
| 制造商 | Arlight |
| 描述 | Ultra bright LED RGB, Red-Green 525nm- Blue, 2000-2700mcd |
| 页数 / 页 | 5 / 1 — ARL-5213RGBC/4C. Features. Descriptions. Usage Notes:. Applications. … |
| 文件格式/大小 | PDF / 168 Kb |
| 文件语言 | 英语 |
ARL-5213RGBC/4C. Features. Descriptions. Usage Notes:. Applications. Device Selection Guide. Chip. Lens Color. Package Dimensions
该数据表的模型线
文件文字版本

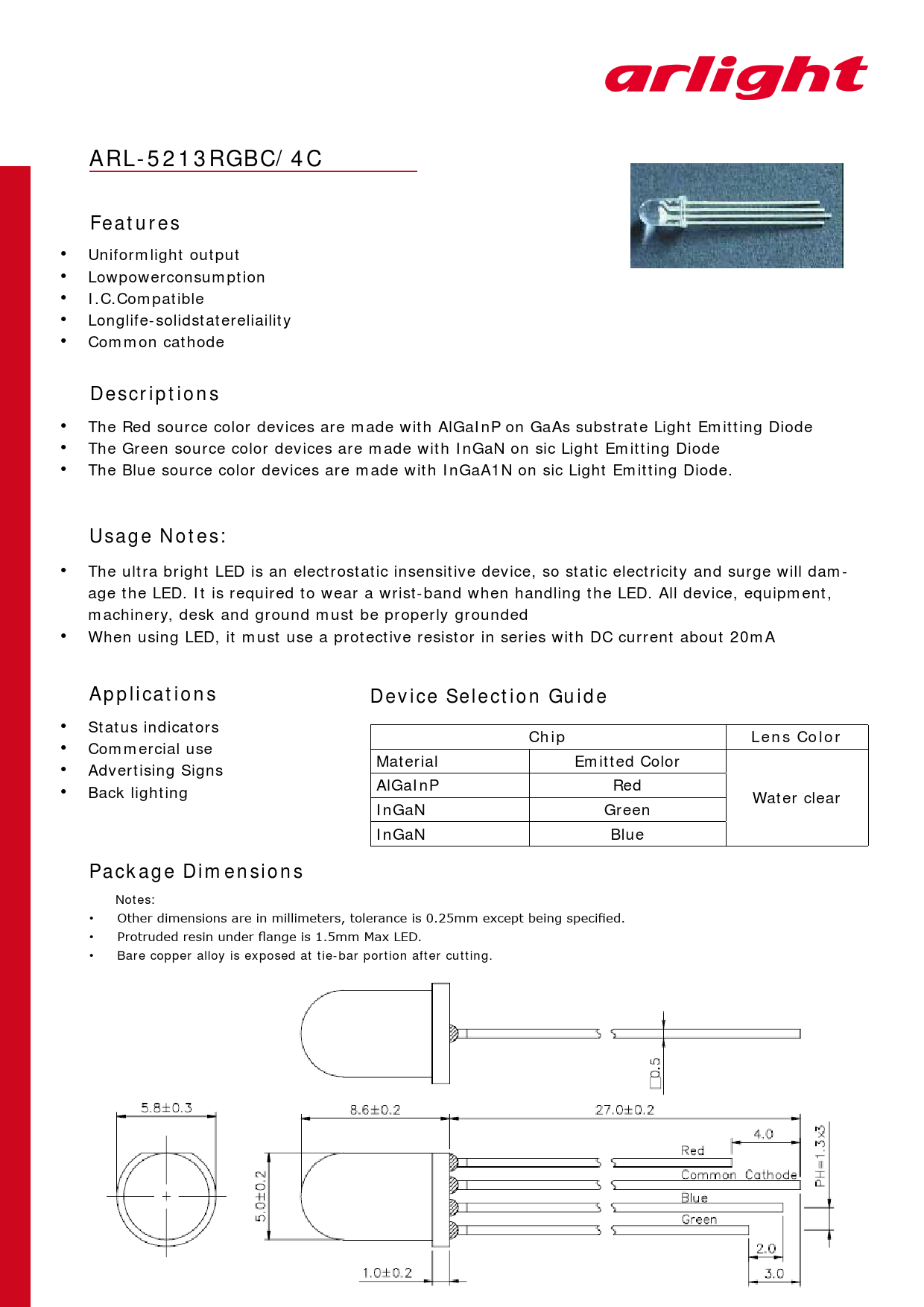

ARL-5213RGBC/4C Features
• Uniformlight output • Lowpowerconsumption • I.C.Compatible • Longlife-solidstatereliaility • Common cathode
Descriptions
• The Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode • The Green source color devices are made with InGaN on sic Light Emitting Diode • The Blue source color devices are made with InGaA1N on sic Light Emitting Diode.
Usage Notes:
• The ultra bright LED is an electrostatic insensitive device, so static electricity and surge will dam- age the LED. It is required to wear a wrist-band when handling the LED. All device, equipment, machinery, desk and ground must be properly grounded • When using LED, it must use a protective resistor in series with DC current about 20mA
Applications Device Selection Guide
• Status indicators
Chip Lens Color
• Commercial use Material Emitted Color • Advertising Signs AlGaInP Red • Back lighting Water clear InGaN Green InGaN Blue
Package Dimensions
Notes: • Other dimensions are in millimeters, tolerance is 0.25mm except being specified. • Protruded resin under flange is 1.5mm Max LED. • Bare copper alloy is exposed at tie-bar portion after cutting.
