Datasheet LT3573 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Isolated Flyback Converter without an Opto-Coupler |
| 页数 / 页 | 26 / 1 — FEATURES. DESCRIPTION. 3V to 40V Input Voltage Range. 1.25A, 60V … |
| 文件格式/大小 | PDF / 282 Kb |
| 文件语言 | 英语 |
FEATURES. DESCRIPTION. 3V to 40V Input Voltage Range. 1.25A, 60V Integrated NPN Power Switch. Boundary Mode Operation
该数据表的模型线
文件文字版本

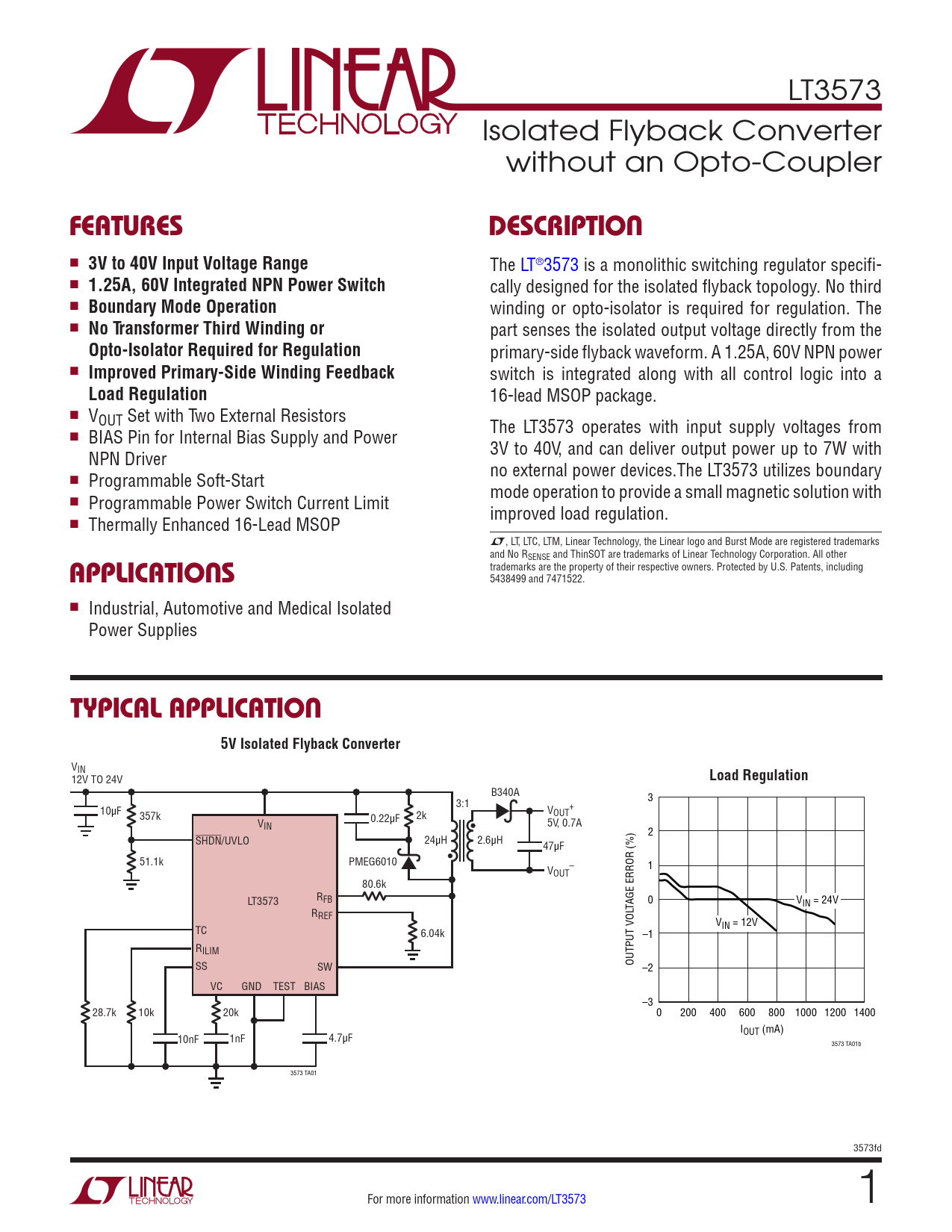

LT3573 Isolated Flyback Converter without an Opto-Coupler
FEATURES DESCRIPTION
n
3V to 40V Input Voltage Range
The LT®3573 is a monolithic switching regulator specifi- n
1.25A, 60V Integrated NPN Power Switch
cally designed for the isolated flyback topology. No third n
Boundary Mode Operation
winding or opto-isolator is required for regulation. The n
No Transformer Third Winding or
part senses the isolated output voltage directly from the
Opto-Isolator Required for Regulation
primary-side flyback waveform. A 1.25A, 60V NPN power n
Improved Primary-Side Winding Feedback
switch is integrated along with all control logic into a
Load Regulation
16-lead MSOP package. n VOUT Set with Two External Resistors The LT3573 operates with input supply voltages from n BIAS Pin for Internal Bias Supply and Power 3V to 40V, and can deliver output power up to 7W with NPN Driver no external power devices.The LT3573 utilizes boundary n Programmable Soft-Start mode operation to provide a small magnetic solution with n Programmable Power Switch Current Limit improved load regulation. n Thermally Enhanced 16-Lead MSOP L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks and No R
APPLICATIONS
SENSE and ThinSOT are trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 5438499 and 7471522. n Industrial, Automotive and Medical Isolated Power Supplies
TYPICAL APPLICATION 5V Isolated Flyback Converter
VIN 12V TO 24V
Load Regulation
B340A 3:1 3 10µF V + OUT 357k 2k V 0.22µF 5V, 0.7A IN 2 SHDN/UVLO 24µH 2.6µH 47µF 51.1k PMEG6010 V – 1 OUT 80.6k RFB LT3573 TAGE ERROR (%) 0 VIN = 24V RREF V TC IN = 12V 6.04k –1 RILIM SS SW OUTPUT VOL –2 VC GND TEST BIAS –3 28.7k 10k 20k 0 200 400 600 800 1000 1200 1400 IOUT (mA) 10nF 1nF 4.7µF 3573 TA01b 3573 TA01 3573fd For more information www.linear.com/LT3573 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
