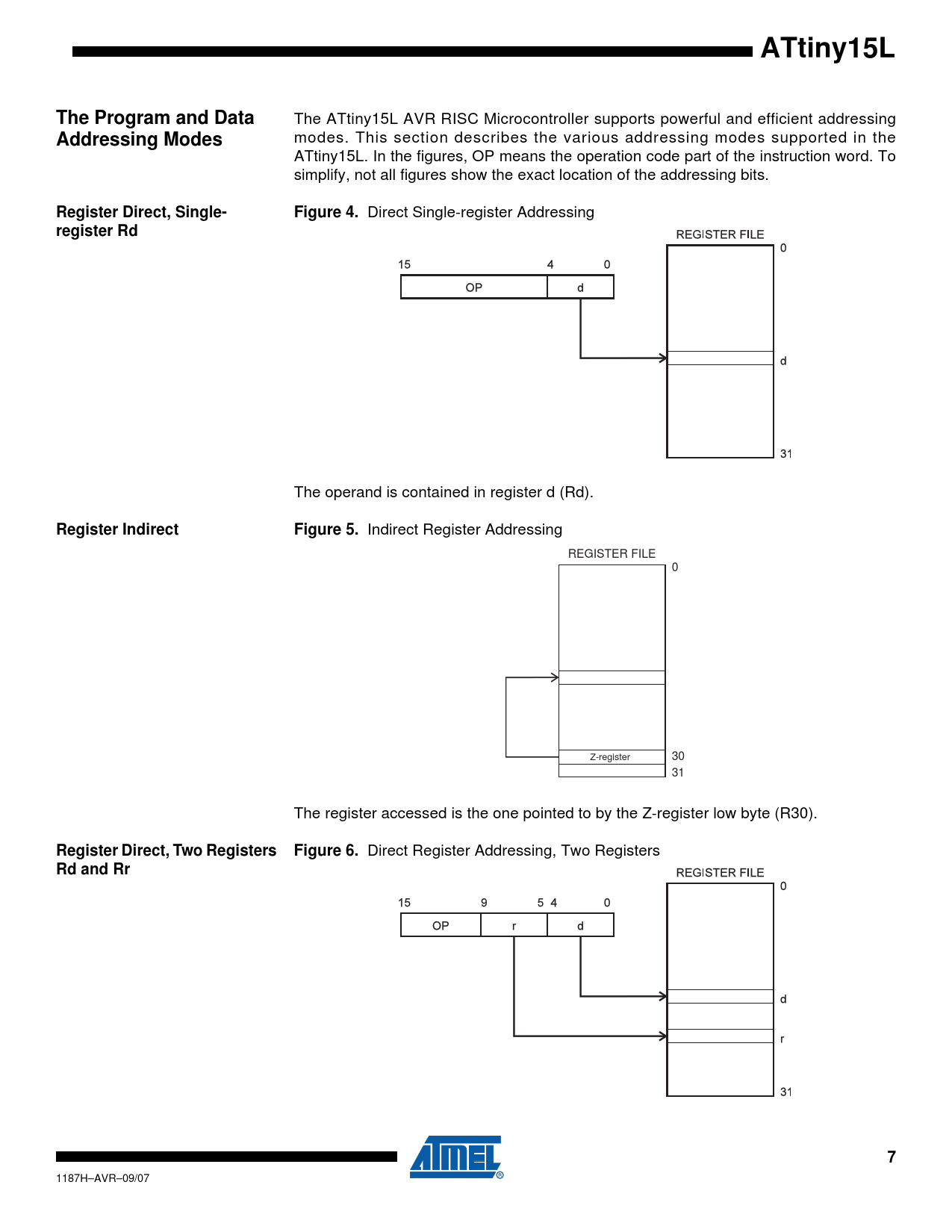

ATtiny15L The Program and Data
The ATtiny15L AVR RISC Microcontroller supports powerful and efficient addressing
Addressing Modes
modes. This section describes the various addressing modes supported in the ATtiny15L. In the figures, OP means the operation code part of the instruction word. To simplify, not all figures show the exact location of the addressing bits.
Register Direct, Single- Figure 4.
Direct Single-register Addressing
register Rd
The operand is contained in register d (Rd).
Register Indirect Figure 5.
Indirect Register Addressing REGISTER FILE 0 Z-register 30 31 The register accessed is the one pointed to by the Z-register low byte (R30).
Register Direct, Two Registers Figure 6.
Direct Register Addressing, Two Registers
Rd and Rr 7
