| 制造商 | Analog Devices |
| 描述 | Complete Isolated RS485/RS422 μModule Transceiver + Power |
| 页数 / 页 | 24 / 3 — orDer inForMaTion http://www.linear.com/product/LTM2881#orderinfo. INPUT. … |
| 文件格式/大小 | PDF / 594 Kb |
| 文件语言 | 英语 |

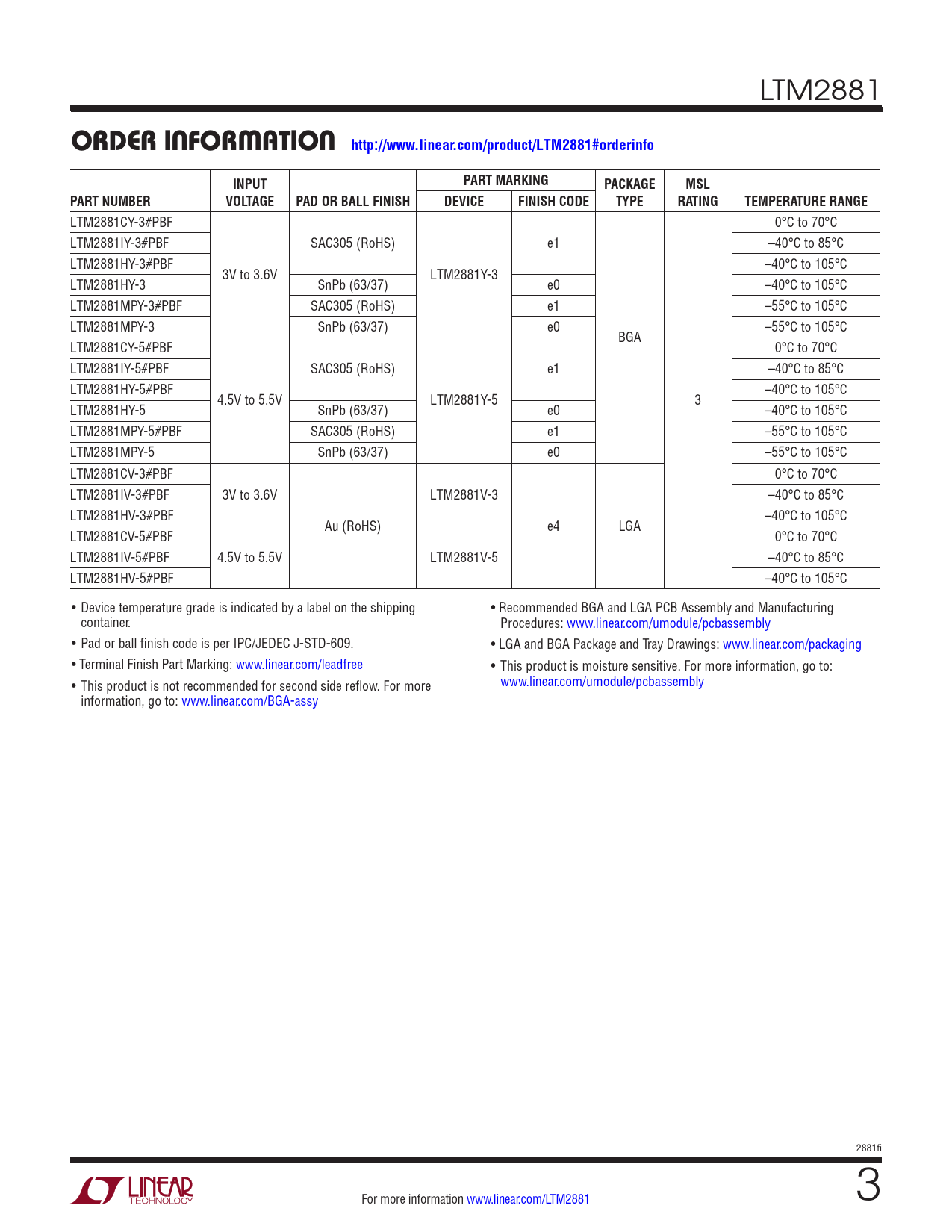

orDer inForMaTion http://www.linear.com/product/LTM2881#orderinfo. INPUT. PART MARKING. PACKAGE. MSL. PART NUMBER. VOLTAGE
该数据表的模型线
文件文字版本
LTM2881
orDer inForMaTion http://www.linear.com/product/LTM2881#orderinfo INPUT PART MARKING PACKAGE MSL PART NUMBER VOLTAGE PAD OR BALL FINISH DEVICE FINISH CODE TYPE RATING TEMPERATURE RANGE
LTM2881CY-3#PBF 0°C to 70°C LTM2881IY-3#PBF SAC305 (RoHS) e1 –40°C to 85°C LTM2881HY-3#PBF –40°C to 105°C 3V to 3.6V LTM2881Y-3 LTM2881HY-3 SnPb (63/37) e0 –40°C to 105°C LTM2881MPY-3#PBF SAC305 (RoHS) e1 –55°C to 105°C LTM2881MPY-3 SnPb (63/37) e0 –55°C to 105°C BGA LTM2881CY-5#PBF 0°C to 70°C LTM2881IY-5#PBF SAC305 (RoHS) e1 –40°C to 85°C LTM2881HY-5#PBF –40°C to 105°C 4.5V to 5.5V LTM2881Y-5 3 LTM2881HY-5 SnPb (63/37) e0 –40°C to 105°C LTM2881MPY-5#PBF SAC305 (RoHS) e1 –55°C to 105°C LTM2881MPY-5 SnPb (63/37) e0 –55°C to 105°C LTM2881CV-3#PBF 0°C to 70°C LTM2881IV-3#PBF 3V to 3.6V LTM2881V-3 –40°C to 85°C LTM2881HV-3#PBF –40°C to 105°C Au (RoHS) e4 LGA LTM2881CV-5#PBF 0°C to 70°C LTM2881IV-5#PBF 4.5V to 5.5V LTM2881V-5 –40°C to 85°C LTM2881HV-5#PBF –40°C to 105°C • Device temperature grade is indicated by a label on the shipping • Recommended BGA and LGA PCB Assembly and Manufacturing container. Procedures: www.linear.com/umodule/pcbassembly • Pad or ball finish code is per IPC/JEDEC J-STD-609. • LGA and BGA Package and Tray Drawings: www.linear.com/packaging • Terminal Finish Part Marking: www.linear.com/leadfree • This product is moisture sensitive. For more information, go to: • This product is not recommended for second side reflow. For more www.linear.com/umodule/pcbassembly information, go to: www.linear.com/BGA-assy 2881fi For more information www.linear.com/LTM2881 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Switching Characteristics Isolation Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Functional Table Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
