LT6656

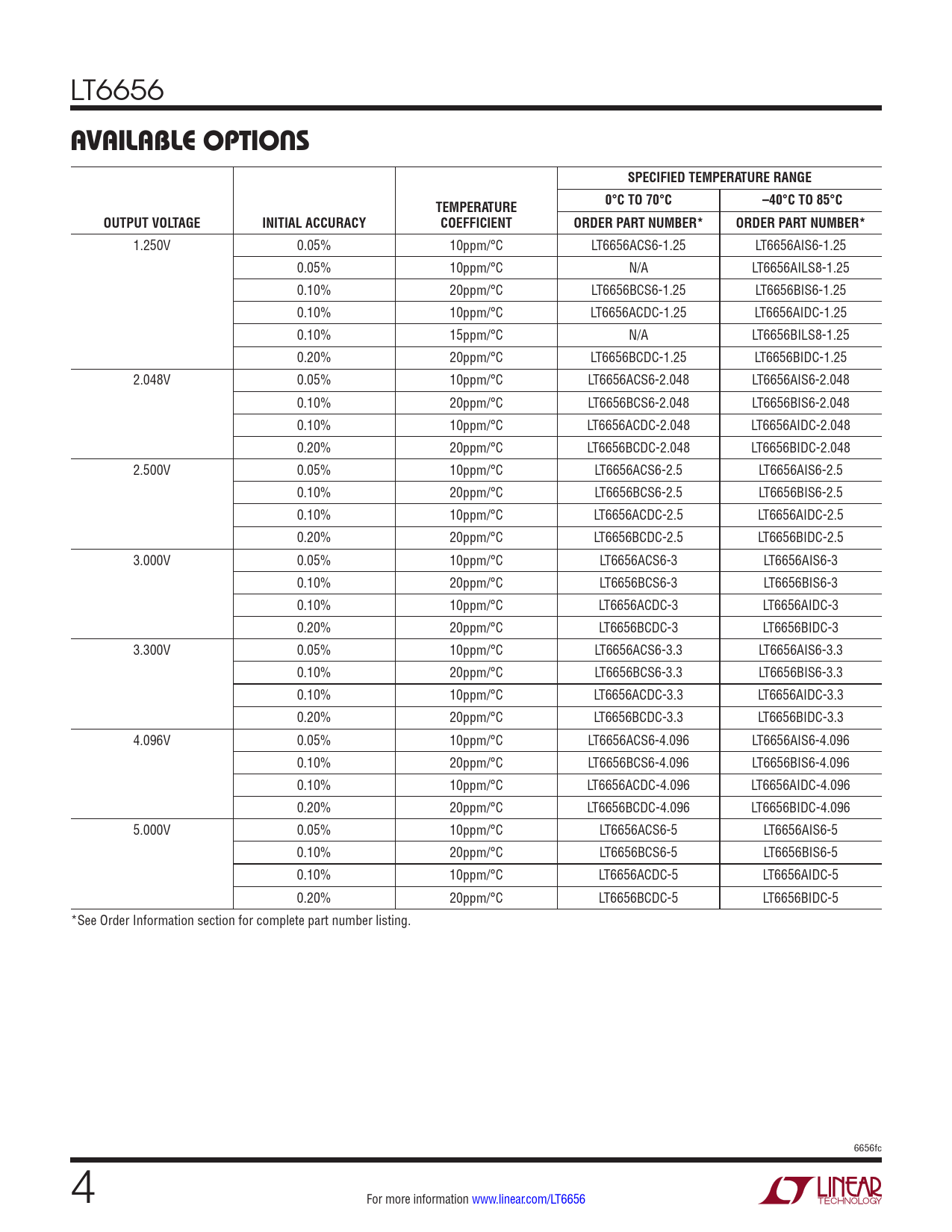

AVAILABLE OPTIONS SPECIFIED TEMPERATURE RANGE TEMPERATURE 0°C TO 70°C –40°C TO 85°C OUTPUT VOLTAGE INITIAL ACCURACY COEFFICIENT ORDER PART NUMBER* ORDER PART NUMBER*
1.250V 0.05% 10ppm/°C LT6656ACS6-1.25 LT6656AIS6-1.25 0.05% 10ppm/°C N/A LT6656AILS8-1.25 0.10% 20ppm/°C LT6656BCS6-1.25 LT6656BIS6-1.25 0.10% 10ppm/°C LT6656ACDC-1.25 LT6656AIDC-1.25 0.10% 15ppm/°C N/A LT6656BILS8-1.25 0.20% 20ppm/°C LT6656BCDC-1.25 LT6656BIDC-1.25 2.048V 0.05% 10ppm/°C LT6656ACS6-2.048 LT6656AIS6-2.048 0.10% 20ppm/°C LT6656BCS6-2.048 LT6656BIS6-2.048 0.10% 10ppm/°C LT6656ACDC-2.048 LT6656AIDC-2.048 0.20% 20ppm/°C LT6656BCDC-2.048 LT6656BIDC-2.048 2.500V 0.05% 10ppm/°C LT6656ACS6-2.5 LT6656AIS6-2.5 0.10% 20ppm/°C LT6656BCS6-2.5 LT6656BIS6-2.5 0.10% 10ppm/°C LT6656ACDC-2.5 LT6656AIDC-2.5 0.20% 20ppm/°C LT6656BCDC-2.5 LT6656BIDC-2.5 3.000V 0.05% 10ppm/°C LT6656ACS6-3 LT6656AIS6-3 0.10% 20ppm/°C LT6656BCS6-3 LT6656BIS6-3 0.10% 10ppm/°C LT6656ACDC-3 LT6656AIDC-3 0.20% 20ppm/°C LT6656BCDC-3 LT6656BIDC-3 3.300V 0.05% 10ppm/°C LT6656ACS6-3.3 LT6656AIS6-3.3 0.10% 20ppm/°C LT6656BCS6-3.3 LT6656BIS6-3.3 0.10% 10ppm/°C LT6656ACDC-3.3 LT6656AIDC-3.3 0.20% 20ppm/°C LT6656BCDC-3.3 LT6656BIDC-3.3 4.096V 0.05% 10ppm/°C LT6656ACS6-4.096 LT6656AIS6-4.096 0.10% 20ppm/°C LT6656BCS6-4.096 LT6656BIS6-4.096 0.10% 10ppm/°C LT6656ACDC-4.096 LT6656AIDC-4.096 0.20% 20ppm/°C LT6656BCDC-4.096 LT6656BIDC-4.096 5.000V 0.05% 10ppm/°C LT6656ACS6-5 LT6656AIS6-5 0.10% 20ppm/°C LT6656BCS6-5 LT6656BIS6-5 0.10% 10ppm/°C LT6656ACDC-5 LT6656AIDC-5 0.20% 20ppm/°C LT6656BCDC-5 LT6656BIDC-5 *See Order Information section for complete part number listing. 6656fc 4 For more information www.linear.com/LT6656 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
