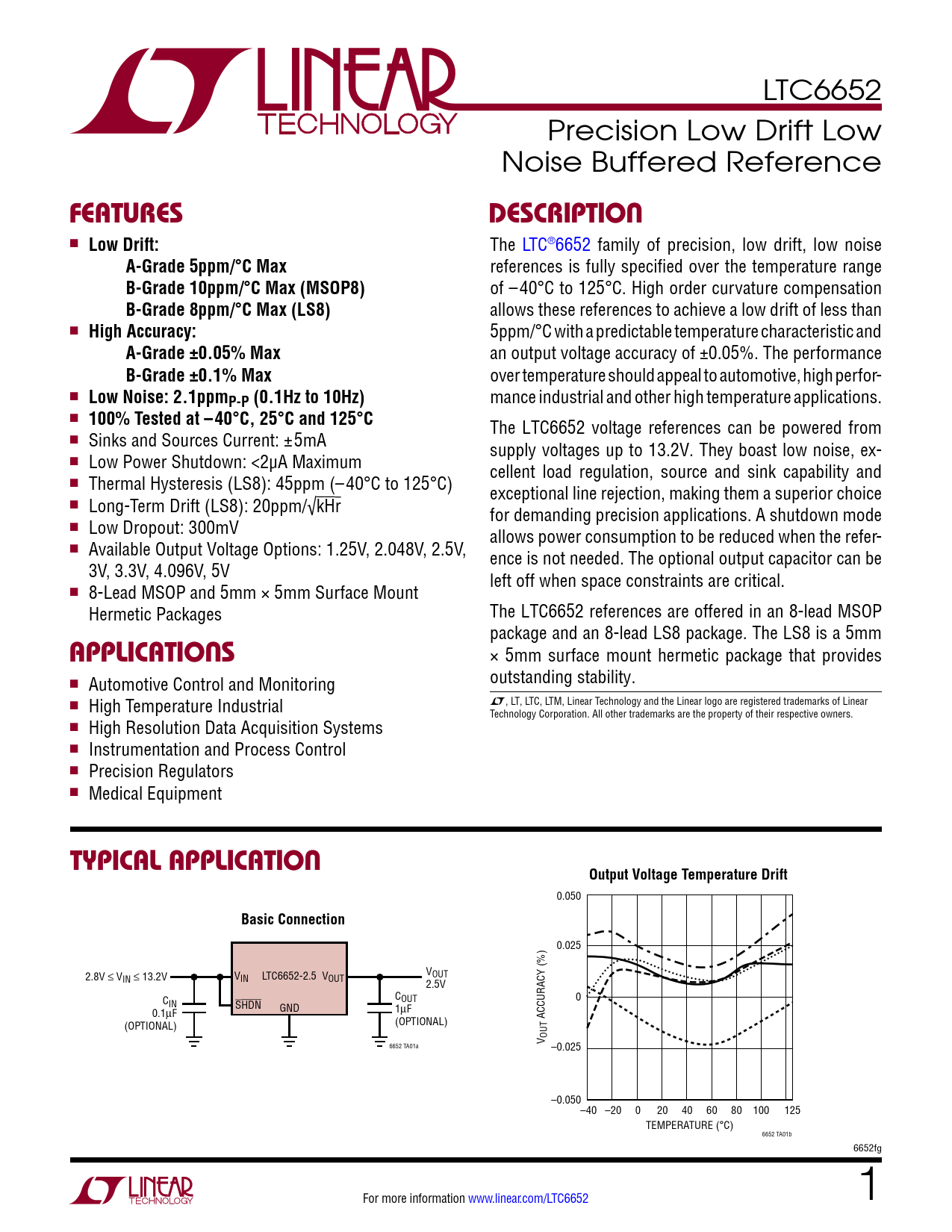

LTC6652 Precision Low Drift Low Noise Buffered Reference
Features Description
n
Low Drift:
The LTC®6652 family of precision, low drift, low noise
A-Grade 5ppm/°C Max
references is fully specified over the temperature range
B-Grade 10ppm/°C Max (MSOP8)
of –40°C to 125°C. High order curvature compensation
B-Grade 8ppm/°C Max (LS8)
allows these references to achieve a low drift of less than n
High Accuracy:
5ppm/°C with a predictable temperature characteristic and
A-Grade ±0.05% Max
an output voltage accuracy of ±0.05%. The performance
B-Grade ±0.1% Max
over temperature should appeal to automotive, high perfor- n
Low Noise: 2.1ppmP-P (0.1Hz to 10Hz)
mance industrial and other high temperature applications. n
100% Tested at –40°C, 25°C and 125°C
The LTC6652 voltage references can be powered from n Sinks and Sources Current: ±5mA supply voltages up to 13.2V. They boast low noise, ex- n Low Power Shutdown: <2µA Maximum cellent load regulation, source and sink capability and n Thermal Hysteresis (LS8): 45ppm (–40°C to 125°C) exceptional line rejection, making them a superior choice n Long-Term Drift (LS8): 20ppm/√kHr for demanding precision applications. A shutdown mode n Low Dropout: 300mV allows power consumption to be reduced when the refer- n Available Output Voltage Options: 1.25V, 2.048V, 2.5V, ence is not needed. The optional output capacitor can be 3V, 3.3V, 4.096V, 5V left off when space constraints are critical. n 8-Lead MSOP and 5mm × 5mm Surface Mount Hermetic Packages The LTC6652 references are offered in an 8-lead MSOP package and an 8-lead LS8 package. The LS8 is a 5mm
applications
× 5mm surface mount hermetic package that provides n outstanding stability. Automotive Control and Monitoring L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear n High Temperature Industrial Technology Corporation. All other trademarks are the property of their respective owners. n High Resolution Data Acquisition Systems n Instrumentation and Process Control n Precision Regulators n Medical Equipment
typical application Output Voltage Temperature Drift
0.050
Basic Connection
0.025 2.8V ≤ V V IN ≤ 13.2V VIN LTC6652-2.5 V OUT OUT 2.5V COUT 0 CIN SHDN 0.1µF GND 1µF ACCURACY (%) (OPTIONAL) (OPTIONAL) V OUT 6652 TA01a –0.025 –0.050–40 –20 0 20 40 60 80 100 125 TEMPERATURE (°C) 6652 TA01b 6652fg For more information www.linear.com/LTC6652 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
