Datasheet ADR821, ADR827 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | 1.25V Low Power, Precision Reference and Op Amp |
| 页数 / 页 | 20 / 9 — ADR821/ADR827. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 8. … |
| 文件格式/大小 | PDF / 620 Kb |
| 文件语言 | 英语 |
ADR821/ADR827. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 8. Parameter Rating. Table 9. Thermal Resistance. Package Type
该数据表的模型线
文件文字版本

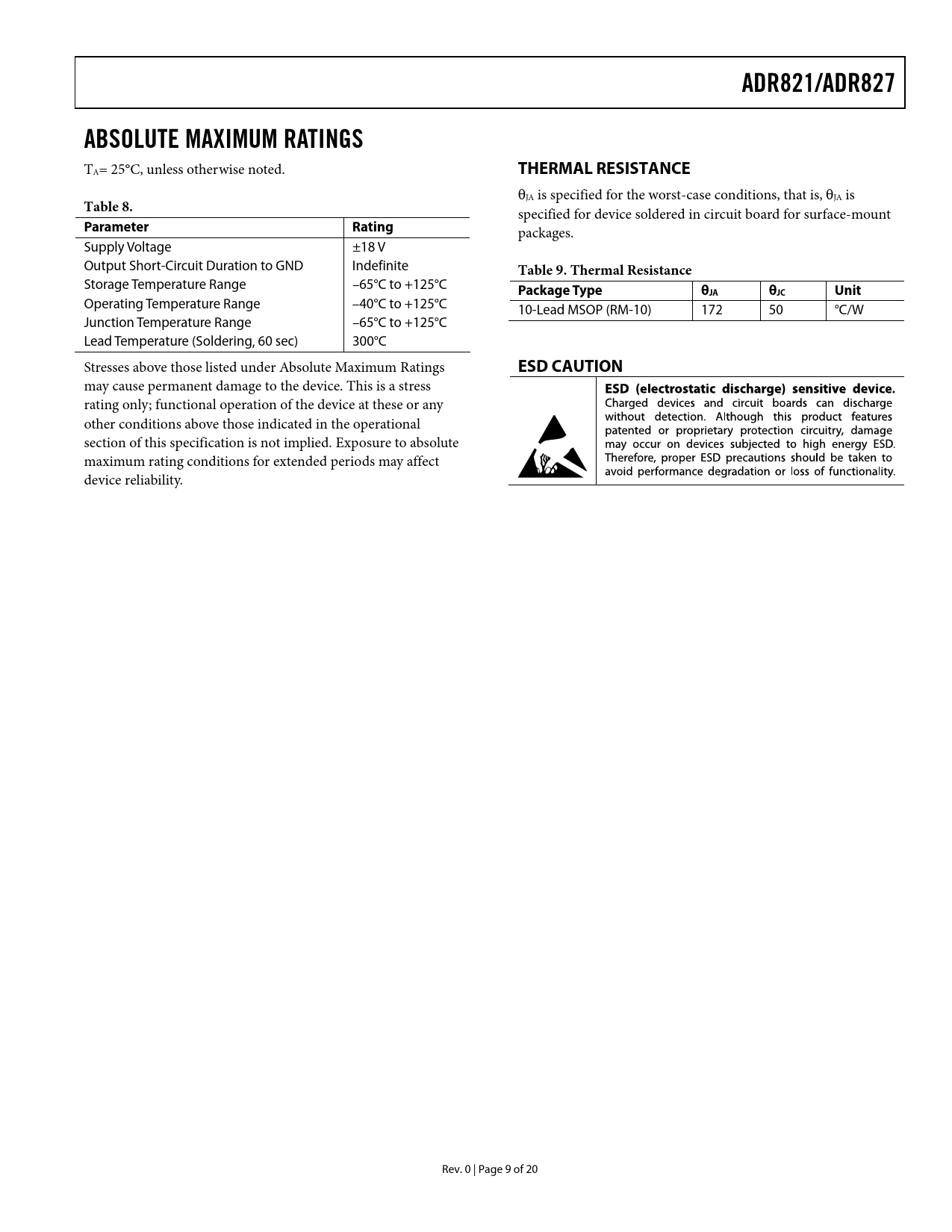

ADR821/ADR827 ABSOLUTE MAXIMUM RATINGS
TA= 25°C, unless otherwise noted.
THERMAL RESISTANCE
θJA is specified for the worst-case conditions, that is, θJA is
Table 8.
specified for device soldered in circuit board for surface-mount
Parameter Rating
packages. Supply Voltage ±18 V Output Short-Circuit Duration to GND Indefinite
Table 9. Thermal Resistance
Storage Temperature Range –65°C to +125°C
Package Type θJA θJC Unit
Operating Temperature Range –40°C to +125°C 10-Lead MSOP (RM-10) 172 50 °C/W Junction Temperature Range –65°C to +125°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings
ESD CAUTION
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 9 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ADR821 ELECTRICAL CHARACTERISTICS—REFERENCE ADR821 ELECTRICAL CHARACTERISTICS—AMPLIFIER (VS = ±2.8 V) ADR821 ELECTRICAL CHARACTERISTICS—AMPLIFIER (VS = ±15 V) ADR827 ELECTRICAL CHARACTERISTICS—REFERENCE ADR827 ELECTRICAL CHARACTERISTICS—AMPLIFIER (VS = ±2.7 V) ADR827 ELECTRICAL CHARACTERISTICS—AMPLIFIER (VS = ±15 V) ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS REFERENCE AMPLIFIER APPLICATIONS INFORMATION +2.5 V AND −2.5 V OUTPUTS (ADR821) 2.5 V AND 5.0 V OUTPUTS (ADR821) MULTIPLE 2.5 V OUTPUTS (ADR821) OUTLINE DIMENSIONS ORDERING GUIDE
