Datasheet ADR360, ADR361, ADR363, ADR364, ADR365, ADR366 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Power, Low Noise Voltage Reference with Sink/Source Capability, 3.3 VOUT |
| 页数 / 页 | 20 / 5 — ADR360/ADR361/ADR363/ADR364/ADR365/ADR366. ADR363 ELECTRICAL … |
| 修订版 | E |
| 文件格式/大小 | PDF / 545 Kb |
| 文件语言 | 英语 |
ADR360/ADR361/ADR363/ADR364/ADR365/ADR366. ADR363 ELECTRICAL CHARACTERISTICS. Table 4. Parameter Symbol. Conditions. Min. Typ. Max
该数据表的模型线
文件文字版本
link to page 5

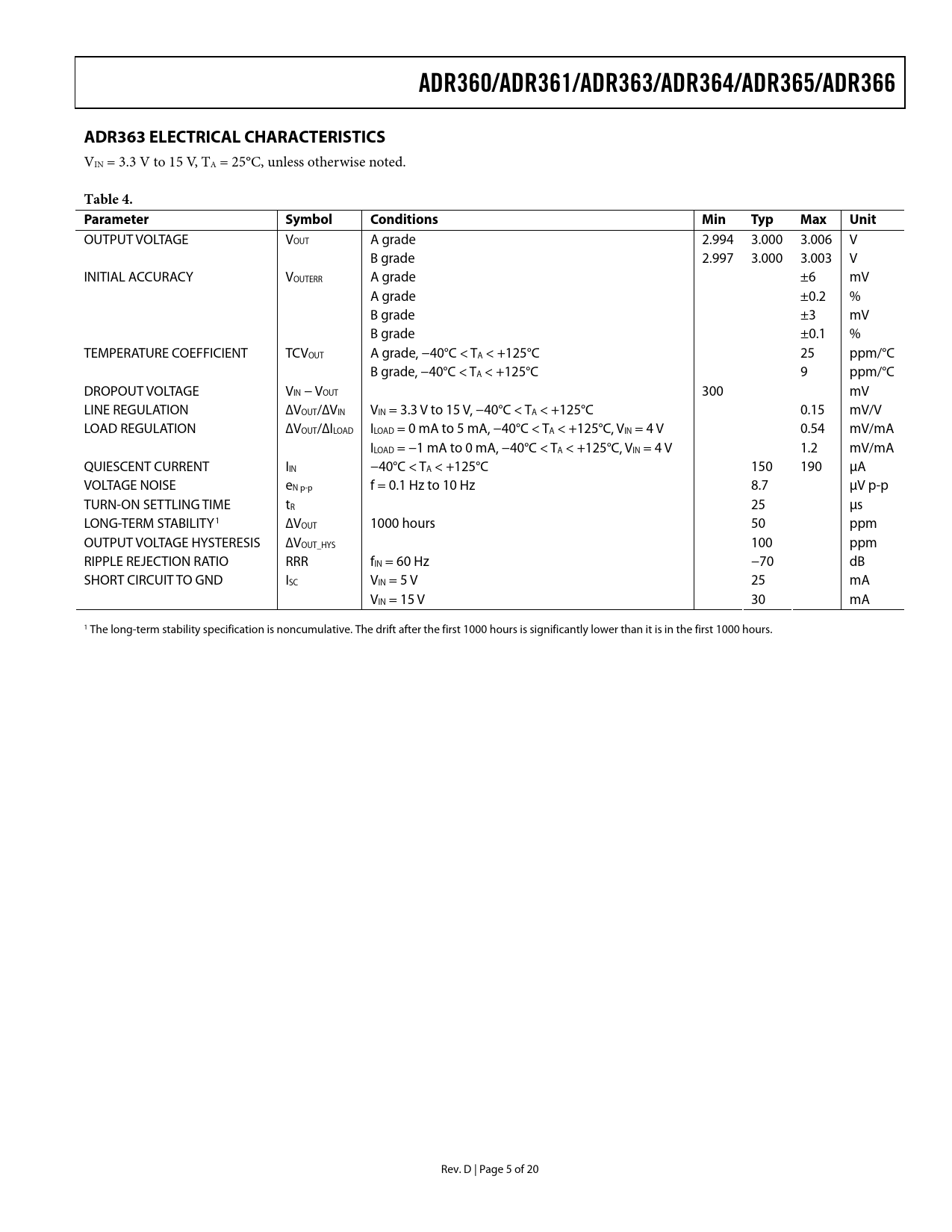

ADR360/ADR361/ADR363/ADR364/ADR365/ADR366 ADR363 ELECTRICAL CHARACTERISTICS
VIN = 3.3 V to 15 V, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VOUT A grade 2.994 3.000 3.006 V B grade 2.997 3.000 3.003 V INITIAL ACCURACY VOUTERR A grade ±6 mV A grade ±0.2 % B grade ±3 mV B grade ±0.1 % TEMPERATURE COEFFICIENT TCVOUT A grade, −40°C < TA < +125°C 25 ppm/°C B grade, −40°C < TA < +125°C 9 ppm/°C DROPOUT VOLTAGE VIN − VOUT 300 mV LINE REGULATION ∆VOUT/∆VIN VIN = 3.3 V to 15 V, −40°C < TA < +125°C 0.15 mV/V LOAD REGULATION ∆VOUT/∆ILOAD ILOAD = 0 mA to 5 mA, −40°C < TA < +125°C, VIN = 4 V 0.54 mV/mA ILOAD = −1 mA to 0 mA, −40°C < TA < +125°C, VIN = 4 V 1.2 mV/mA QUIESCENT CURRENT IIN −40°C < TA < +125°C 150 190 μA VOLTAGE NOISE eN p-p f = 0.1 Hz to 10 Hz 8.7 μV p-p TURN-ON SETTLING TIME tR 25 μs LONG-TERM STABILITY1 ∆VOUT 1000 hours 50 ppm OUTPUT VOLTAGE HYSTERESIS ∆VOUT_HYS 100 ppm RIPPLE REJECTION RATIO RRR fIN = 60 Hz −70 dB SHORT CIRCUIT TO GND ISC VIN = 5 V 25 mA VIN = 15 V 30 mA 1 The long-term stability specification is noncumulative. The drift after the first 1000 hours is significantly lower than it is in the first 1000 hours. Rev. D | Page 5 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ADR360 ELECTRICAL CHARACTERISTICS ADR361 ELECTRICAL CHARACTERISTICS ADR363 ELECTRICAL CHARACTERISTICS ADR364 ELECTRICAL CHARACTERISTICS ADR365 ELECTRICAL CHARACTERISTICS ADR366 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION DEVICE POWER DISSIPATION CONSIDERATIONS INPUT CAPACITOR OUTPUT CAPACITOR APPLICATIONS INFORMATION BASIC VOLTAGE REFERENCE CONNECTION Stacking Reference ICs for Arbitrary Outputs Negative Precision Reference Without Precision Resistors General-Purpose Current Source Trim Terminal OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
ADR360/ADR361/ADR363/ADR364/ADR365/ADR366 ADR363 ELECTRICAL CHARACTERISTICS
VIN = 3.3 V to 15 V, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions Min Typ Max Unit
