ADR360/ADR361/ADR363/ADR364/ADR365/ADR366. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 8. Parameter Rating
该数据表的模型线
文件文字版本

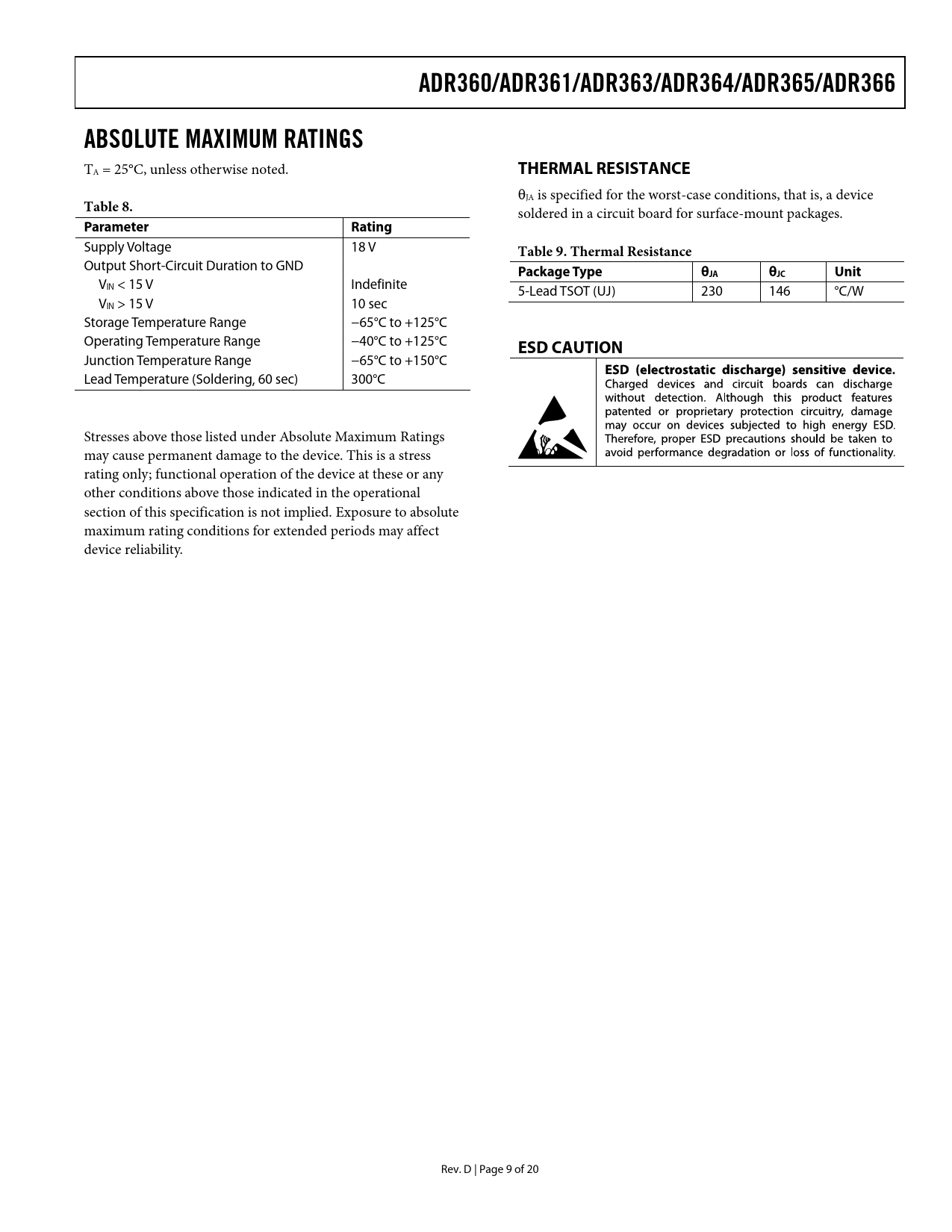

ADR360/ADR361/ADR363/ADR364/ADR365/ADR366 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE
θJA is specified for the worst-case conditions, that is, a device
Table 8.
soldered in a circuit board for surface-mount packages.
Parameter Rating
Supply Voltage 18 V
Table 9. Thermal Resistance
Output Short-Circuit Duration to GND
Package Type θJA θJC Unit
VIN < 15 V Indefinite 5-Lead TSOT (UJ) 230 146 °C/W VIN > 15 V 10 sec Storage Temperature Range −65°C to +125°C Operating Temperature Range −40°C to +125°C
ESD CAUTION
Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. D | Page 9 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ADR360 ELECTRICAL CHARACTERISTICS ADR361 ELECTRICAL CHARACTERISTICS ADR363 ELECTRICAL CHARACTERISTICS ADR364 ELECTRICAL CHARACTERISTICS ADR365 ELECTRICAL CHARACTERISTICS ADR366 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION DEVICE POWER DISSIPATION CONSIDERATIONS INPUT CAPACITOR OUTPUT CAPACITOR APPLICATIONS INFORMATION BASIC VOLTAGE REFERENCE CONNECTION Stacking Reference ICs for Arbitrary Outputs Negative Precision Reference Without Precision Resistors General-Purpose Current Source Trim Terminal OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
