Datasheet ADR01, ADR02, ADR03, ADR06 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Ultracompact, Precision 3.0 V Voltage Reference |
| 页数 / 页 | 20 / 6 — ADR01/ADR02/ADR03/ADR06. Data Sheet. ADR03 ELECTRICAL CHARACTERISTICS. … |
| 修订版 | R |
| 文件格式/大小 | PDF / 516 Kb |
| 文件语言 | 英语 |
ADR01/ADR02/ADR03/ADR06. Data Sheet. ADR03 ELECTRICAL CHARACTERISTICS. Table 4. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
该数据表的模型线
- ADR01AKSZ-REEL7 ADR01ARZ ADR01ARZ-REEL7 ADR01AUJZ-REEL7 ADR01BKSZ-REEL7 ADR01BRZ ADR01BRZ-REEL7 ADR01BUJZ-REEL7 ADR01TUJZ-EP-R7 ADR01WARZ-R7 ADR01WARZ-RL
- ADR02ACHIPS ADR02AKSZ-REEL7 ADR02ARZ ADR02ARZ-REEL ADR02ARZ-REEL7 ADR02AUJZ-REEL7 ADR02BKSZ-REEL7 ADR02BRZ ADR02BRZ-REEL7 ADR02BUJZ-REEL7 ADR02WARZ-REEL ADR02WARZ-REEL7
文件文字版本
link to page 6

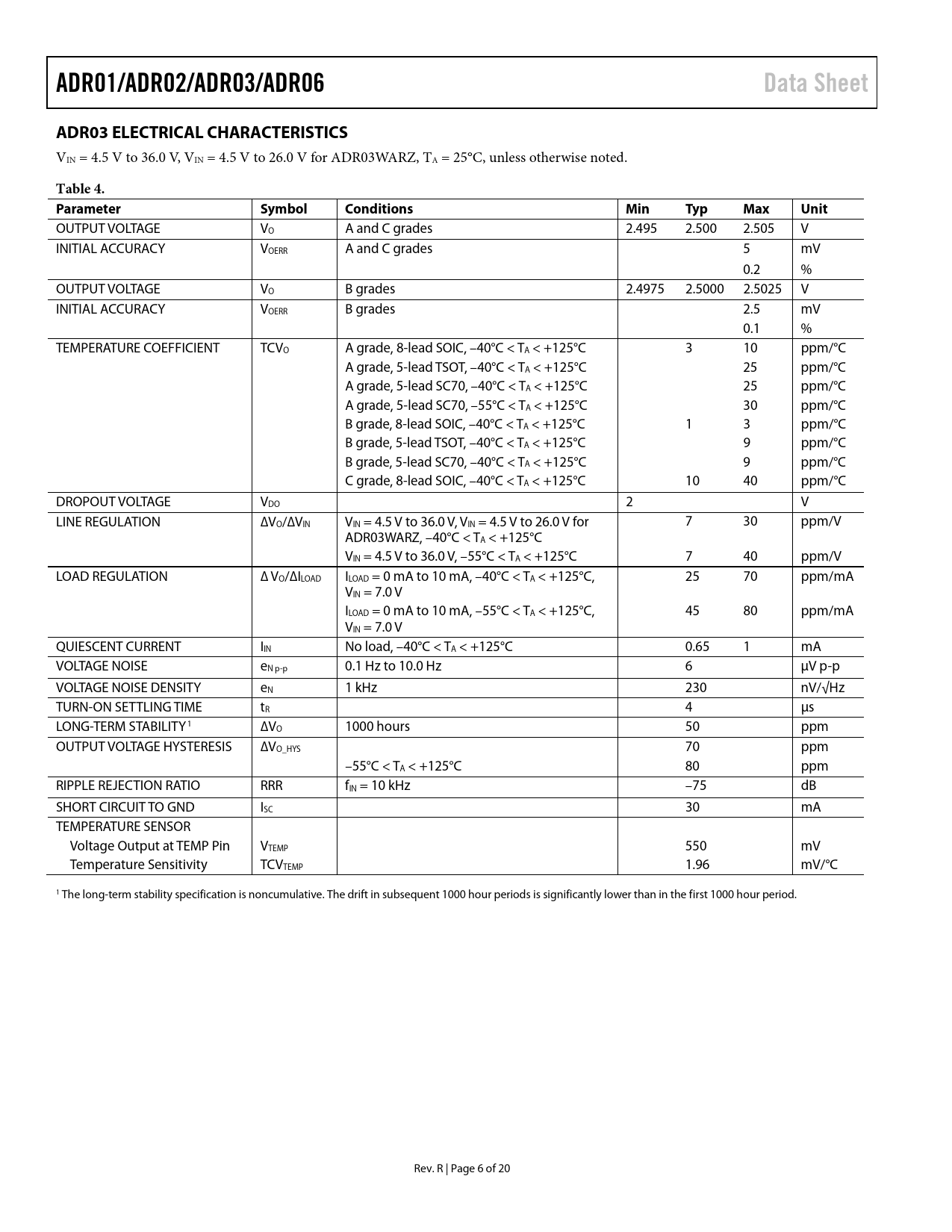

ADR01/ADR02/ADR03/ADR06 Data Sheet ADR03 ELECTRICAL CHARACTERISTICS
VIN = 4.5 V to 36.0 V, VIN = 4.5 V to 26.0 V for ADR03WARZ, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VO A and C grades 2.495 2.500 2.505 V INITIAL ACCURACY VOERR A and C grades 5 mV 0.2 % OUTPUT VOLTAGE VO B grades 2.4975 2.5000 2.5025 V INITIAL ACCURACY VOERR B grades 2.5 mV 0.1 % TEMPERATURE COEFFICIENT TCVO A grade, 8-lead SOIC, –40°C < TA < +125°C 3 10 ppm/°C A grade, 5-lead TSOT, –40°C < TA < +125°C 25 ppm/°C A grade, 5-lead SC70, –40°C < TA < +125°C 25 ppm/°C A grade, 5-lead SC70, –55°C < TA < +125°C 30 ppm/°C B grade, 8-lead SOIC, –40°C < TA < +125°C 1 3 ppm/°C B grade, 5-lead TSOT, –40°C < TA < +125°C 9 ppm/°C B grade, 5-lead SC70, –40°C < TA < +125°C 9 ppm/°C C grade, 8-lead SOIC, –40°C < TA < +125°C 10 40 ppm/°C DROPOUT VOLTAGE VDO 2 V LINE REGULATION ∆VO/∆VIN VIN = 4.5 V to 36.0 V, VIN = 4.5 V to 26.0 V for 7 30 ppm/V ADR03WARZ, –40°C < TA < +125°C VIN = 4.5 V to 36.0 V, –55°C < TA < +125°C 7 40 ppm/V LOAD REGULATION ∆ VO/∆ILOAD ILOAD = 0 mA to 10 mA, –40°C < TA < +125°C, 25 70 ppm/mA VIN = 7.0 V ILOAD = 0 mA to 10 mA, –55°C < TA < +125°C, 45 80 ppm/mA VIN = 7.0 V QUIESCENT CURRENT IIN No load, –40°C < TA < +125°C 0.65 1 mA VOLTAGE NOISE eN p-p 0.1 Hz to 10.0 Hz 6 µV p-p VOLTAGE NOISE DENSITY eN 1 kHz 230 nV/√Hz TURN-ON SETTLING TIME tR 4 µs LONG-TERM STABILITY1 ∆VO 1000 hours 50 ppm OUTPUT VOLTAGE HYSTERESIS ∆VO_HYS 70 ppm –55°C < TA < +125°C 80 ppm RIPPLE REJECTION RATIO RRR fIN = 10 kHz –75 dB SHORT CIRCUIT TO GND ISC 30 mA TEMPERATURE SENSOR Voltage Output at TEMP Pin VTEMP 550 mV Temperature Sensitivity TCVTEMP 1.96 mV/°C 1 The long-term stability specification is noncumulative. The drift in subsequent 1000 hour periods is significantly lower than in the first 1000 hour period. Rev. R | Page 6 of 20 Document Outline Features Applications Pin Configurations General Description Revision History Specifications ADR01 Electrical Characteristics ADR02 Electrical Characteristics ADR03 Electrical Characteristics ADR06 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Terminology Typical Performance Characteristics Applications Information Overview Applying the ADR01/ADR02/ADR03/ADR06 Input and Output Capacitors Output Adjustment Temperature Monitoring Low Cost Current Source Precision Current Source with Adjustable Output Programmable 4 mA to 20 mA Current Transmitter Precision Boosted Output Regulator Outline Dimensions Ordering Guides ADR01 Ordering Guide ADR02 Ordering Guide ADR03 Ordering Guide ADR06 Ordering Guide Automotive Products
ADR01/ADR02/ADR03/ADR06 Data Sheet ADR03 ELECTRICAL CHARACTERISTICS
VIN = 4.5 V to 36.0 V, VIN = 4.5 V to 26.0 V for ADR03WARZ, TA = 25°C, unless otherwise noted.
Table 4. Parameter Symbol Conditions Min Typ Max Unit
