Datasheet ADR02ACHIPS (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Ultracompact, Precision 5.0 V Voltage Reference |
| 页数 / 页 | 8 / 1 — 5.0 V Precision Voltage Reference. Data Sheet. ADR02ACHIPS. FEATURES. … |
| 文件格式/大小 | PDF / 176 Kb |
| 文件语言 | 英语 |
5.0 V Precision Voltage Reference. Data Sheet. ADR02ACHIPS. FEATURES. ADR02. CHIP DIMENSIONS
该数据表的模型线
文件文字版本

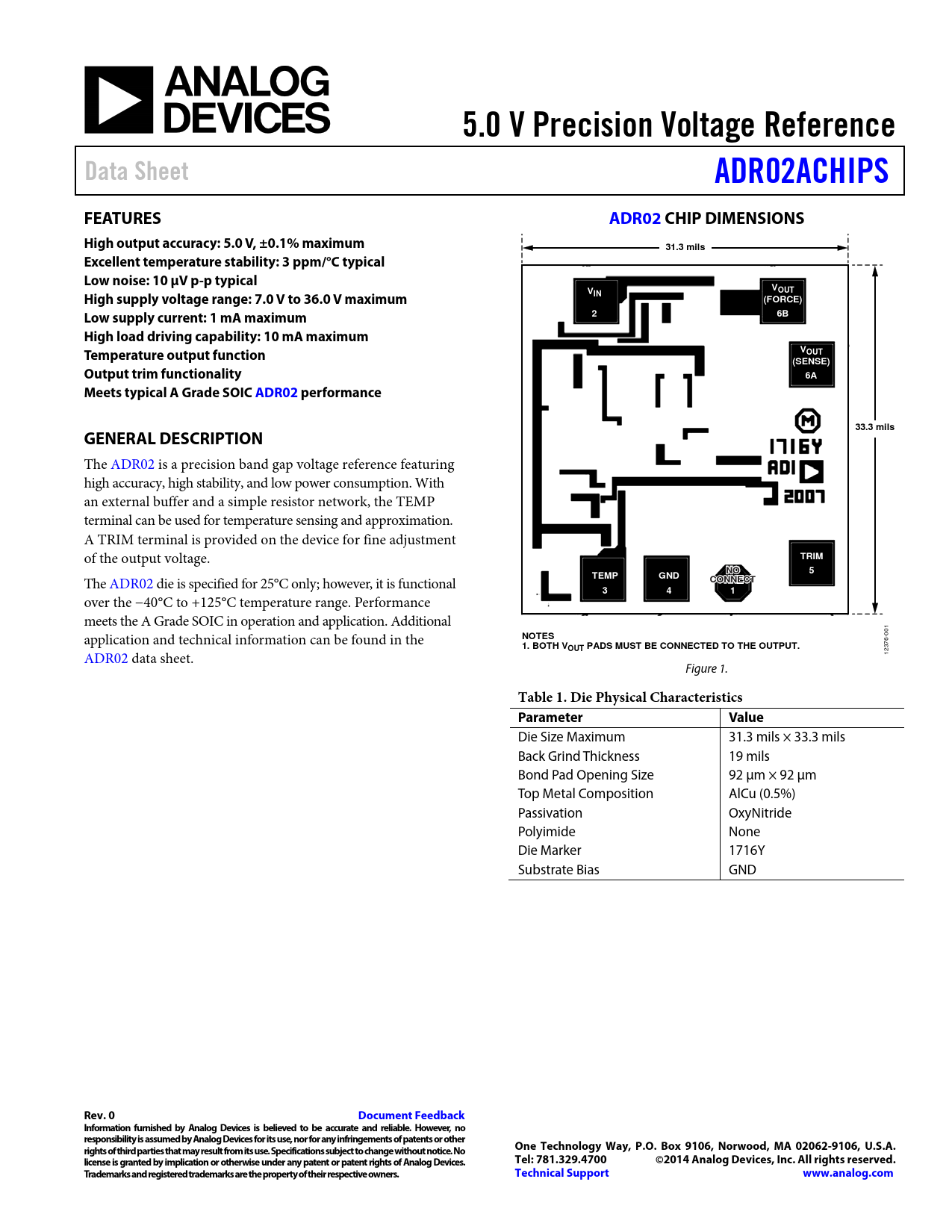

5.0 V Precision Voltage Reference Data Sheet ADR02ACHIPS FEATURES ADR02 CHIP DIMENSIONS High output accuracy: 5.0 V, ±0.1% maximum 31.3 mils Excellent temperature stability: 3 ppm/°C typical Low noise: 10 µV p-p typical VOUT High supply voltage range: 7.0 V to 36.0 V maximum VIN (FORCE) Low supply current: 1 mA maximum 2 6B High load driving capability: 10 mA maximum Temperature output function VOUT (SENSE) Output trim functionality 6A Meets typical A Grade SOIC ADR02 p erformance 33.3 mils GENERAL DESCRIPTION
The ADR02 is a precision band gap voltage reference featuring high accuracy, high stability, and low power consumption. With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is provided on the device for fine adjustment of the output voltage.
TRIM NO 5
The ADR02 die is specified for 25°C only; however, it is functional
TEMP GND CONNECT 3 4 1
over the −40°C to +125°C temperature range. Performance meets the A Grade SOIC in operation and application. Additional application and technical information can be found in the 001
NOTES 1. BOTH VOUT PADS MUST BE CONNECTED TO THE OUTPUT.
ADR02 data sheet. 12376- Figure 1.
Table 1. Die Physical Characteristics Parameter Value
Die Size Maximum 31.3 mils × 33.3 mils Back Grind Thickness 19 mils Bond Pad Opening Size 92 µm × 92 µm Top Metal Composition AlCu (0.5%) Passivation OxyNitride Polyimide None Die Marker 1716Y Substrate Bias GND
