Datasheet ADR01-EP (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | Ultracompact, Precision 10.0 V Voltage Reference |
| 页数 / 页 | 8 / 1 — Ultracompact, Precision. 10.0 V Voltage Reference. Data Sheet. ADR01-EP. … |
| 文件格式/大小 | PDF / 131 Kb |
| 文件语言 | 英语 |

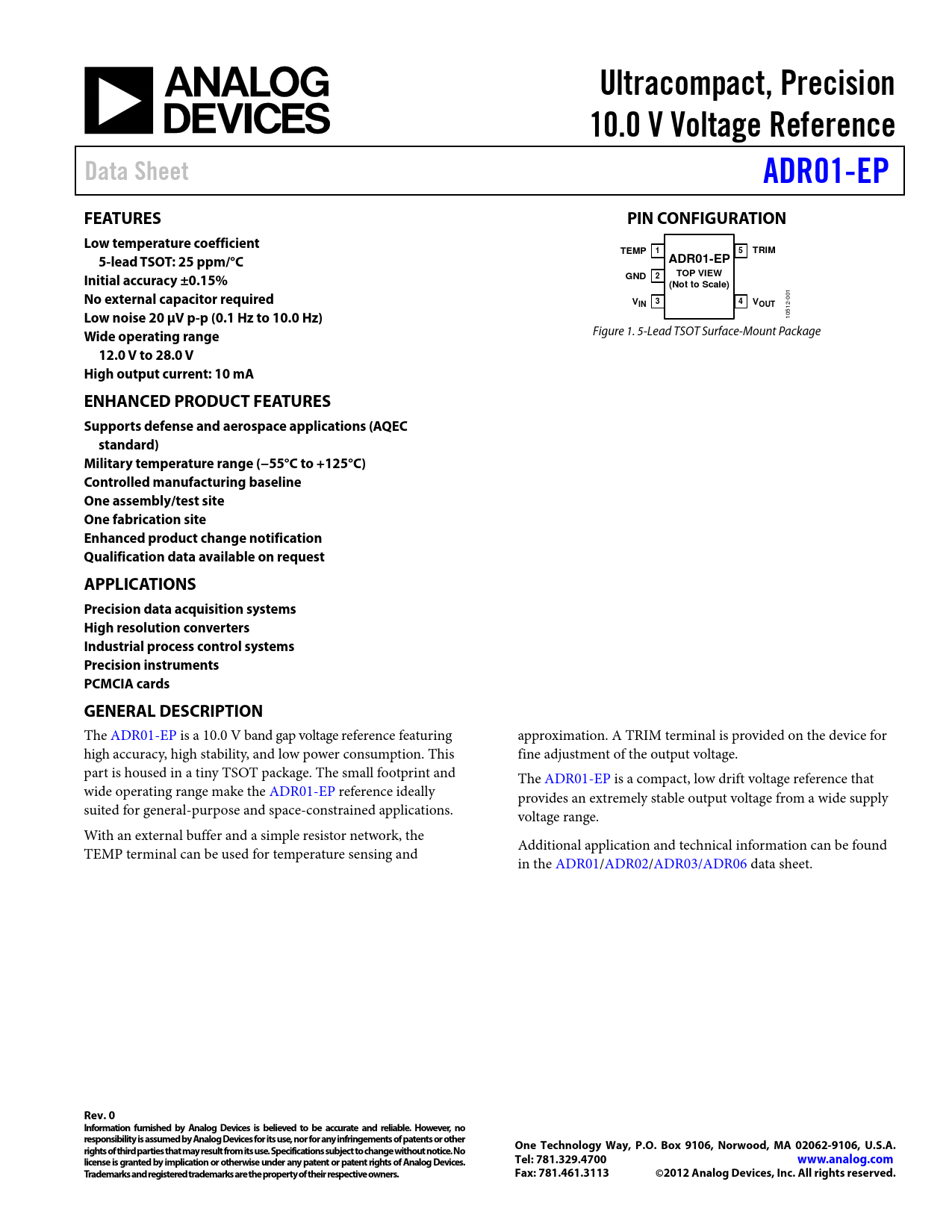

Ultracompact, Precision. 10.0 V Voltage Reference. Data Sheet. ADR01-EP. FEATURES. PIN CONFIGURATION. Low temperature coefficient
该数据表的模型线
文件文字版本
Ultracompact, Precision 10.0 V Voltage Reference Data Sheet ADR01-EP FEATURES PIN CONFIGURATION Low temperature coefficient TEMP 1 5 TRIM 5-lead TSOT: 25 ppm/°C ADR01-EP Initial accuracy ±0.15% TOP VIEW GND 2 (Not to Scale) No external capacitor required V
001
3 IN 4 VOUT Low noise 20 µV p-p (0.1 Hz to 10.0 Hz)
10512-
Wide operating range
Figure 1. 5-Lead TSOT Surface-Mount Package
12.0 V to 28.0 V High output current: 10 mA ENHANCED PRODUCT FEATURES Supports defense and aerospace applications (AQEC standard) Military temperature range (−55°C to +125°C) Controlled manufacturing baseline One assembly/test site One fabrication site Enhanced product change notification Qualification data available on request APPLICATIONS Precision data acquisition systems High resolution converters Industrial process control systems Precision instruments PCMCIA cards GENERAL DESCRIPTION
The ADR01-EP is a 10.0 V band gap voltage reference featuring approximation. A TRIM terminal is provided on the device for high accuracy, high stability, and low power consumption. This fine adjustment of the output voltage. part is housed in a tiny TSOT package. The small footprint and The ADR01-EP is a compact, low drift voltage reference that wide operating range make the ADR01-EP reference ideally provides an extremely stable output voltage from a wide supply suited for general-purpose and space-constrained applications. voltage range. With an external buffer and a simple resistor network, the Additional application and technical information can be found TEMP terminal can be used for temperature sensing and in the ADR01/ADR02/ADR03/ADR06 data sheet.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2012 Analog Devices, Inc. All rights reserved.
Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
