Typical. perForMance characTerisTics Characteristic curves are similar for most LT1461s
该数据表的模型线
- LT1461ACS8-2.5#PBF LT1461ACS8-2.5#TRPBF LT1461ACS8-3#PBF LT1461ACS8-3#TRPBF LT1461ACS8-3.3#PBF LT1461ACS8-3.3#TRPBF LT1461ACS8-4#PBF LT1461ACS8-4#TRPBF LT1461ACS8-5#PBF LT1461ACS8-5#TRPBF LT1461AIS8-2.5#PBF LT1461AIS8-2.5#TRPBF LT1461AIS8-3#PBF LT1461AIS8-3#TRPBF LT1461AIS8-3.3#PBF LT1461AIS8-3.3#TRPBF LT1461AIS8-4#PBF LT1461AIS8-4#TRPBF LT1461AIS8-5#PBF LT1461AIS8-5#TRPBF LT1461BCS8-2.5#PBF LT1461BCS8-2.5#TRPBF LT1461BCS8-3#PBF LT1461BCS8-3#TRPBF LT1461BCS8-3.3#PBF LT1461BCS8-3.3#TRPBF LT1461BCS8-4#PBF LT1461BCS8-4#TRPBF LT1461BCS8-5#PBF LT1461BCS8-5#TRPBF LT1461BIS8-2.5#PBF LT1461BIS8-2.5#TRPBF LT1461BIS8-3#PBF LT1461BIS8-3#TRPBF LT1461BIS8-3.3#PBF LT1461BIS8-3.3#TRPBF LT1461BIS8-4#PBF LT1461BIS8-4#TRPBF LT1461BIS8-5#PBF LT1461BIS8-5#TRPBF LT1461CCS8-2.5#PBF LT1461CCS8-2.5#TRPBF LT1461CCS8-3#PBF LT1461CCS8-3#TRPBF LT1461CCS8-3.3#PBF LT1461CCS8-3.3#TRPBF LT1461CCS8-4#PBF LT1461CCS8-4#TRPBF LT1461CCS8-5#PBF LT1461CCS8-5#TRPBF LT1461CIS8-2.5#PBF LT1461CIS8-2.5#TRPBF LT1461CIS8-3#PBF LT1461CIS8-3#TRPBF LT1461CIS8-3.3#PBF LT1461CIS8-3.3#TRPBF LT1461CIS8-4#PBF LT1461CIS8-4#TRPBF LT1461CIS8-5#PBF LT1461CIS8-5#TRPBF LT1461DHS8-2.5#PBF LT1461DHS8-2.5#TRPBF LT1461DHS8-3#PBF LT1461DHS8-3#TRPBF LT1461DHS8-3.3#PBF LT1461DHS8-3.3#TRPBF LT1461DHS8-4#PBF LT1461DHS8-4#TRPBF LT1461DHS8-5#PBF LT1461DHS8-5#TRPBF LT1461DHS8-5#WTRPBF
文件文字版本
LT1461

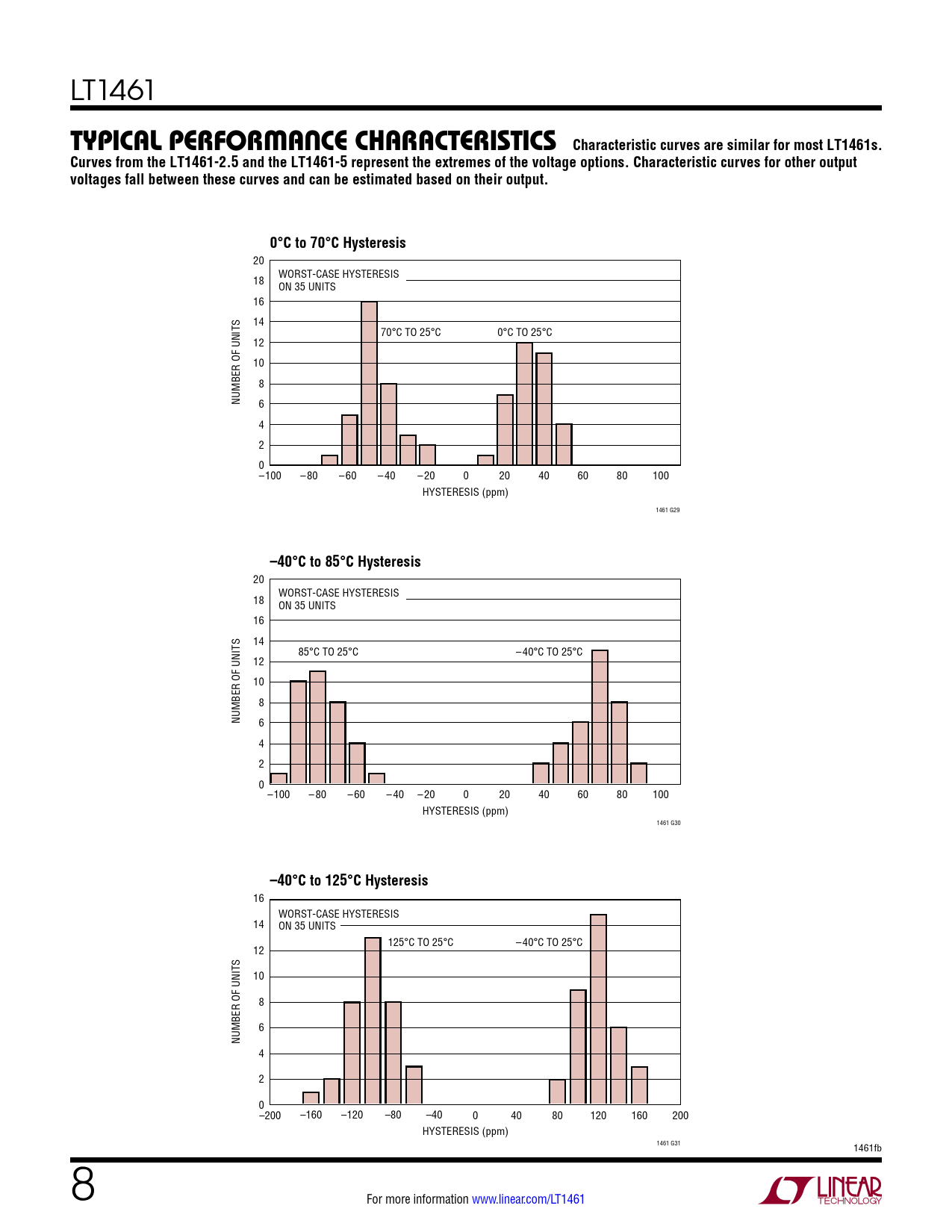

Typical perForMance characTerisTics Characteristic curves are similar for most LT1461s. Curves from the LT1461-2.5 and the LT1461-5 represent the extremes of the voltage options. Characteristic curves for other output voltages fall between these curves and can be estimated based on their output. 0°C to 70°C Hysteresis
20 WORST-CASE HYSTERESIS 18 ON 35 UNITS 16 14 70°C TO 25°C 0°C TO 25°C 12 10 8 NUMBER OF UNITS 6 4 2 0 –100 –80 –60 –40 –20 0 20 40 60 80 100 HYSTERESIS (ppm) 1461 G29
–40°C to 85°C Hysteresis
20 WORST-CASE HYSTERESIS 18 ON 35 UNITS 16 14 85°C TO 25°C –40°C TO 25°C 12 10 8 NUMBER OF UNITS 6 4 2 0 –100 –80 –60 –40 –20 0 20 40 60 80 100 HYSTERESIS (ppm) 1461 G30
–40°C to 125°C Hysteresis
16 WORST-CASE HYSTERESIS 14 ON 35 UNITS 125°C TO 25°C –40°C TO 25°C 12 10 8 6 NUMBER OF UNITS 4 2 0–200 –160 –120 –80 –40 0 40 80 120 160 200 HYSTERESIS (ppm) 1461 G31 1461fb 8 For more information www.linear.com/LT1461 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Available Options Electrical Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
