Datasheet ADR293-EP (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Low Noise, Micropower 5.0 V Precision Voltage Reference |
| 页数 / 页 | 12 / 9 — Enhanced Product. ADR293-EP. OUTLINE DIMENSIONS. 3.10 3.00 2.90. 4.50 … |
| 修订版 | A |
| 文件格式/大小 | PDF / 207 Kb |
| 文件语言 | 英语 |

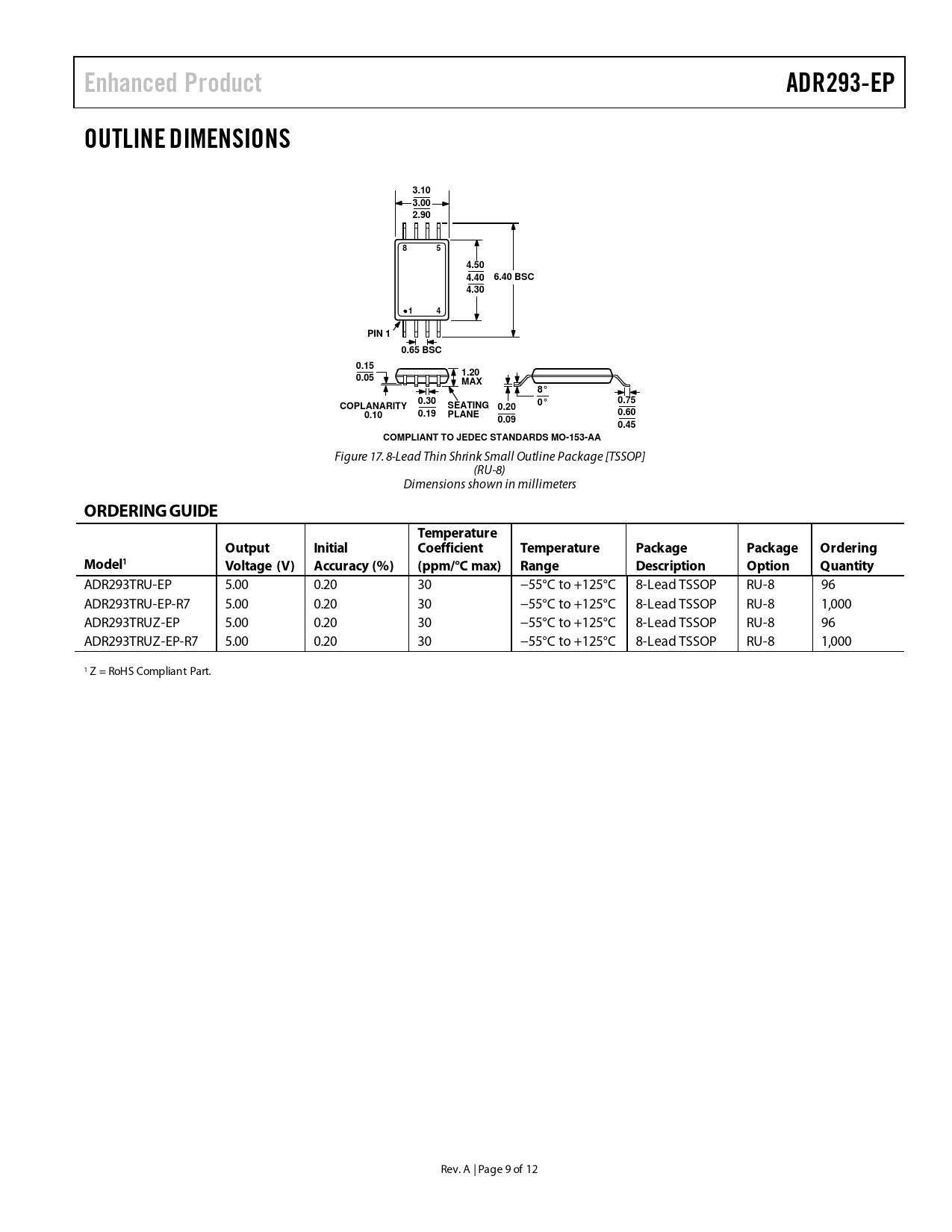

Enhanced Product. ADR293-EP. OUTLINE DIMENSIONS. 3.10 3.00 2.90. 4.50 4.40. 6.40 BSC. 4.30. PIN 1. 0.65 BSC. 0.15. 1.20. 0.05. MAX. 0.30. 0.75
该数据表的模型线
文件文字版本
Enhanced Product ADR293-EP OUTLINE DIMENSIONS 3.10 3.00 2.90 8 5 4.50 4.40 6.40 BSC 4.30 1 4 PIN 1 0.65 BSC 0.15 1.20 0.05 MAX 8° 0.30 0.75 COPLANARITY SEATING 0° 0.20 0.10 0.19 PLANE 0.60 0.09 0.45 COMPLIANT TO JEDEC STANDARDS MO-153-AA
Figure 17. 8-Lead Thin Shrink Small Outline Package [TSSOP] (RU-8) Dimensions shown in millimeters
ORDERING GUIDE Temperature Output Initial Coefficient Temperature Package Package Ordering Model1 Voltage (V) Accuracy (%) (ppm/°C max) Range Description Option Quantity
ADR293TRU-EP 5.00 0.20 30 −55°C to +125°C 8-Lead TSSOP RU-8 96 ADR293TRU-EP-R7 5.00 0.20 30 −55°C to +125°C 8-Lead TSSOP RU-8 1,000 ADR293TRUZ-EP 5.00 0.20 30 −55°C to +125°C 8-Lead TSSOP RU-8 96 ADR293TRUZ-EP-R7 5.00 0.20 30 −55°C to +125°C 8-Lead TSSOP RU-8 1,000 1 Z = RoHS Compliant Part. Rev. A | Page 9 of 12 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
