REF19x Series. Data Sheet. ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +85°C. Table 12. Parameter Symbol. Condition. Min. Typ

REF19x Series Data Sheet ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +85°C Table 12 Parameter Symbol Condition Min Typ

该数据表的模型线

文件文字版本

link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10

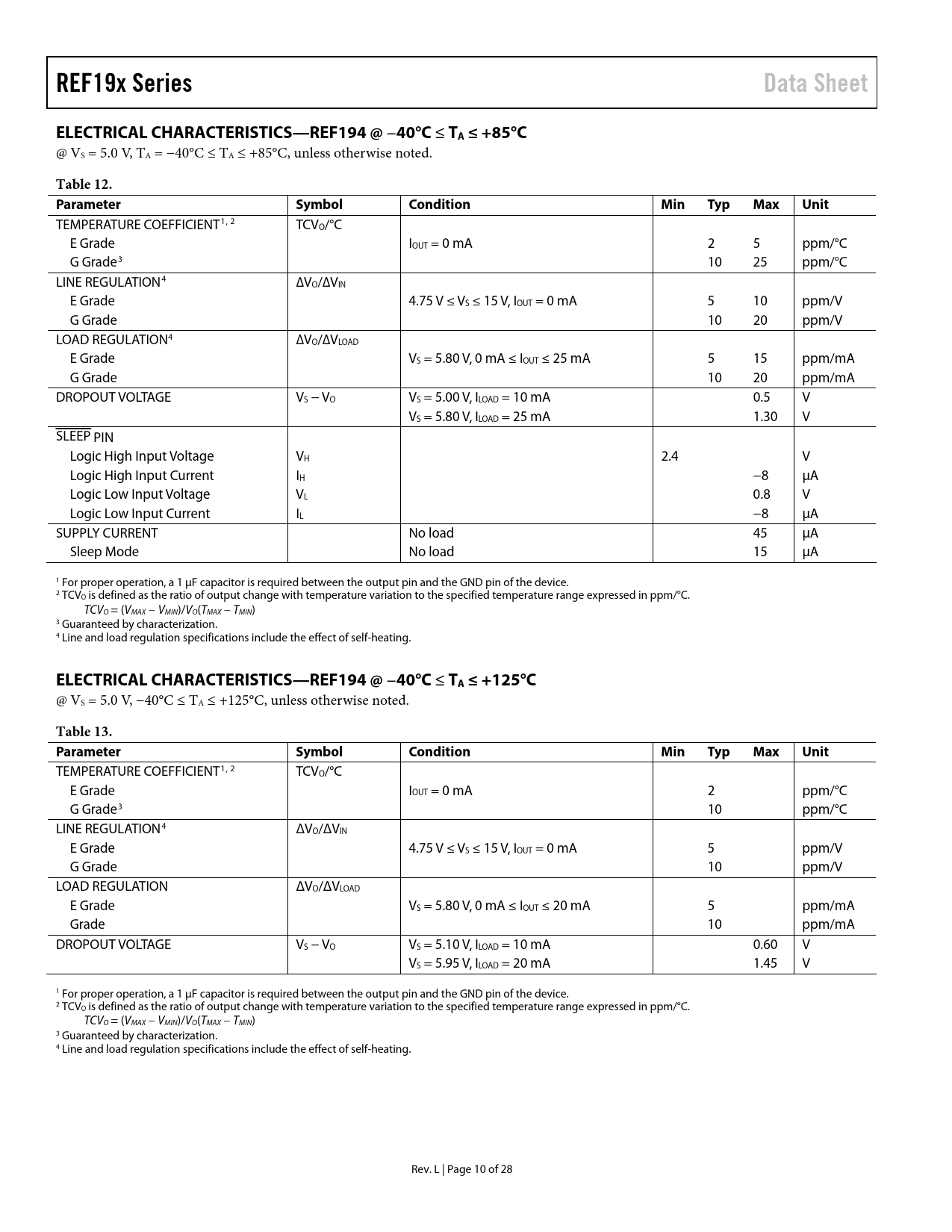

REF19x Series Data Sheet ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +85°C
@ VS = 5.0 V, TA = −40°C ≤ TA ≤ +85°C, unless otherwise noted.
Table 12. Parameter Symbol Condition Min Typ Max Unit
TEMPERATURE COEFFICIENT1, 2 TCVO/°C E Grade IOUT = 0 mA 2 5 ppm/°C G Grade3 10 25 ppm/°C LINE REGULATION4 ∆VO/∆VIN E Grade 4.75 V ≤ VS ≤ 15 V, IOUT = 0 mA 5 10 ppm/V G Grade 10 20 ppm/V LOAD REGULATION4 ∆VO/∆VLOAD E Grade VS = 5.80 V, 0 mA ≤ IOUT ≤ 25 mA 5 15 ppm/mA G Grade 10 20 ppm/mA DROPOUT VOLTAGE VS − VO VS = 5.00 V, ILOAD = 10 mA 0.5 V VS = 5.80 V, ILOAD = 25 mA 1.30 V SLEEP PIN Logic High Input Voltage VH 2.4 V Logic High Input Current IH −8 μA Logic Low Input Voltage VL 0.8 V Logic Low Input Current IL −8 μA SUPPLY CURRENT No load 45 μA Sleep Mode No load 15 μA 1 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. 2 TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating.
ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +125°C
@ VS = 5.0 V, −40°C ≤ TA ≤ +125°C, unless otherwise noted.
Table 13. Parameter Symbol Condition Min Typ Max Unit
TEMPERATURE COEFFICIENT1, 2 TCVO/°C E Grade IOUT = 0 mA 2 ppm/°C G Grade3 10 ppm/°C LINE REGULATION4 ΔVO/ΔVIN E Grade 4.75 V ≤ VS ≤ 15 V, IOUT = 0 mA 5 ppm/V G Grade 10 ppm/V LOAD REGULATION ΔVO/ΔVLOAD E Grade VS = 5.80 V, 0 mA ≤ IOUT ≤ 20 mA 5 ppm/mA Grade 10 ppm/mA DROPOUT VOLTAGE VS − VO VS = 5.10 V, ILOAD = 10 mA 0.60 V VS = 5.95 V, ILOAD = 20 mA 1.45 V 1 For proper operation, a 1 μF capacitor is required between the output pin and the GND pin of the device. 2 TCVO is defined as the ratio of output change with temperature variation to the specified temperature range expressed in ppm/°C. TCVO = (VMAX − VMIN)/VO(TMAX − TMIN) 3 Guaranteed by characterization. 4 Line and load regulation specifications include the effect of self-heating. Rev. L | Page 10 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TEST PINS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—REF191 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF191 @ −40°C ≤ +85°C ELECTRICAL CHARACTERISTICS—REF191 @ −40°C ≤ TA ≤ +125°C ELECTRICAL CHARACTERISTICS—REF192 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF192 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF192 @ −40°C ≤ TA ≤ +125°C ELECTRICAL CHARACTERISTICS—REF193 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF193 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF193 @ TA ≤ −40°C ≤ +125°C ELECTRICAL CHARACTERISTICS—REF194 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF194 @ −40°C ≤ TA ≤ +125°C ELECTRICAL CHARACTERISTICS—REF195 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF195 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF195 @ −40°C ≤ TA ≤ +125°C ELECTRICAL CHARACTERISTICS—REF196 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF196 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF196 @ −40°C ≤ TA ≤ +125°C ELECTRICAL CHARACTERISTICS—REF198 @ TA = 25°C ELECTRICAL CHARACTERISTICS—REF198 @ −40°C ≤ TA ≤ +85°C ELECTRICAL CHARACTERISTICS—REF198 @ −40°C ≤ TA ≤ 125°C ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION OUTPUT SHORT-CIRCUIT BEHAVIOR DEVICE POWER DISSIPATION CONSIDERATIONS OUTPUT VOLTAGE BYPASSING SLEEP MODE OPERATION BASIC VOLTAGE REFERENCE CONNECTIONS MEMBRANE SWITCH-CONTROLLED POWER SUPPLY SOLDER HEAT EFFECT CURRENT-BOOSTED REFERENCES WITH CURRENT LIMITING NEGATIVE PRECISION REFERENCE WITHOUT PRECISION RESISTORS STACKING REFERENCE ICs FOR ARBITRARY OUTPUTS PRECISION CURRENT SOURCE SWITCHED OUTPUT 5 V/3.3 V REFERENCE KELVIN CONNECTIONS FAIL-SAFE 5 V REFERENCE LOW POWER, STRAIN GAGE CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
