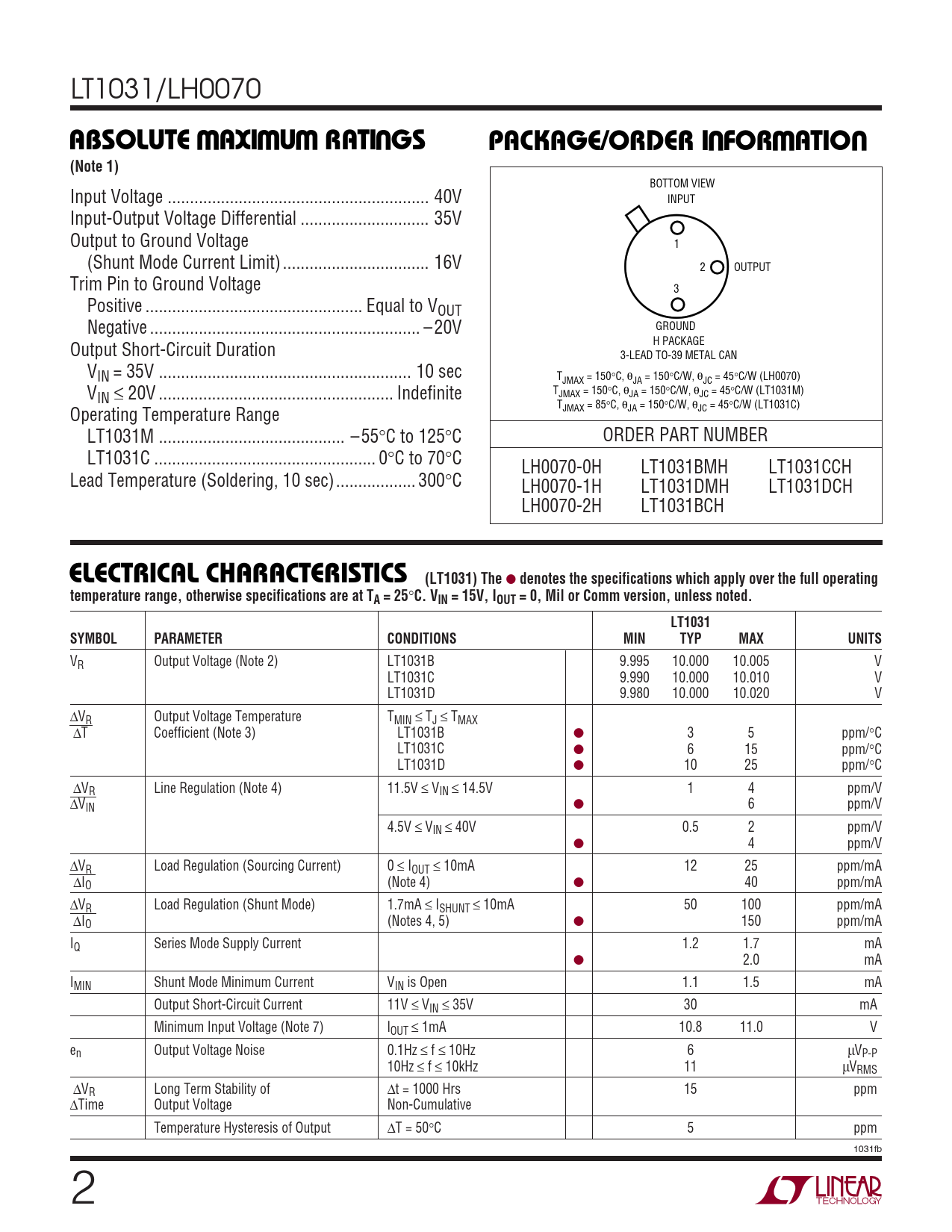

LT1031/LH0070
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
BOTTOM VIEW Input Voltage ... 40V INPUT Input-Output Voltage Differential ... 35V Output to Ground Voltage 1 (Shunt Mode Current Limit) ... 16V 2 OUTPUT Trim Pin to Ground Voltage 3 Positive ... Equal to VOUT Negative ... – 20V GROUND Output Short-Circuit Duration H PACKAGE 3-LEAD TO-39 METAL CAN VIN = 35V ... 10 sec TJMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W (LH0070) V T IN ≤ 20V ... Indefinite JMAX = 150°C, θJA = 150°C/W, θJC = 45°C/W (LT1031M) T Operating Temperature Range JMAX = 85°C, θJA = 150°C/W, θJC = 45°C/W (LT1031C) LT1031M .. – 55°C to 125°C ORDER PART NUMBER LT1031C .. 0°C to 70°C LH0070-0H LT1031BMH LT1031CCH Lead Temperature (Soldering, 10 sec).. 300°C LH0070-1H LT1031DMH LT1031DCH LH0070-2H LT1031BCH
ELECTRICAL CHARACTERISTICS (LT1031) The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = 15V, IOUT = 0, Mil or Comm version, unless noted. LT1031 SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VR Output Voltage (Note 2) LT1031B 9.995 10.000 10.005 V LT1031C 9.990 10.000 10.010 V LT1031D 9.980 10.000 10.020 V ∆VR Output Voltage Temperature TMIN ≤ TJ ≤ TMAX ∆T Coefficient (Note 3) LT1031B ● 3 5 ppm/°C LT1031C ● 6 15 ppm/°C LT1031D ● 10 25 ppm/°C ∆VR Line Regulation (Note 4) 11.5V ≤ VIN ≤ 14.5V 1 4 ppm/V ∆VIN ● 6 ppm/V 4.5V ≤ VIN ≤ 40V 0.5 2 ppm/V ● 4 ppm/V ∆VR Load Regulation (Sourcing Current) 0 ≤ IOUT ≤ 10mA 12 25 ppm/mA ∆IO (Note 4) ● 40 ppm/mA ∆VR Load Regulation (Shunt Mode) 1.7mA ≤ ISHUNT ≤ 10mA 50 100 ppm/mA ∆IO (Notes 4, 5) ● 150 ppm/mA IQ Series Mode Supply Current 1.2 1.7 mA ● 2.0 mA IMIN Shunt Mode Minimum Current VIN is Open 1.1 1.5 mA Output Short-Circuit Current 11V ≤ VIN ≤ 35V 30 mA Minimum Input Voltage (Note 7) lOUT ≤ 1mA 10.8 11.0 V en Output Voltage Noise 0.1Hz ≤ f ≤ 10Hz 6 µVP-P 10Hz ≤ f ≤ 10kHz 11 µVRMS ∆VR Long Term Stability of ∆t = 1000 Hrs 15 ppm ∆Time Output Voltage Non-Cumulative Temperature Hysteresis of Output ∆T = 50°C 5 ppm 1031fb 2
