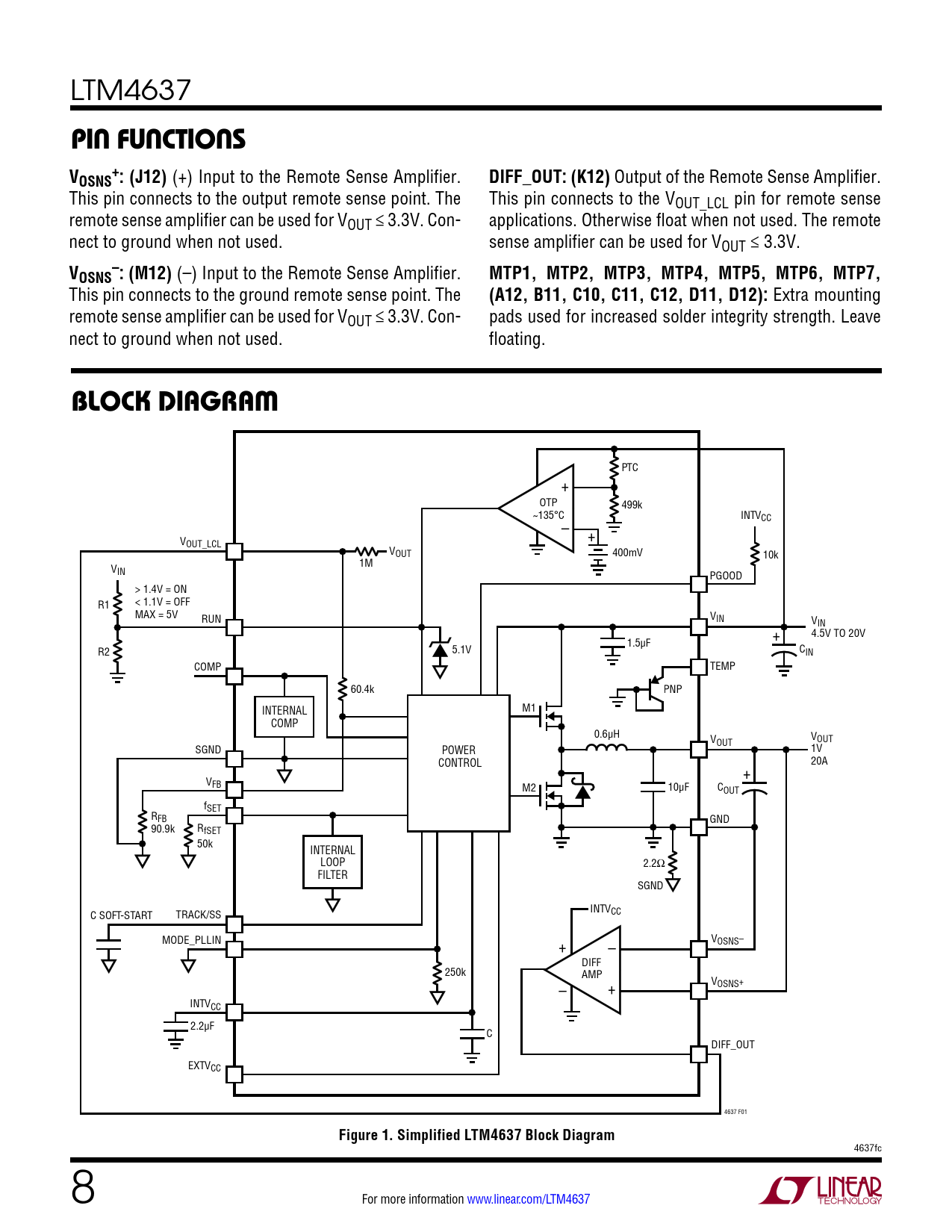

LTM4637
pin FuncTions V + OSNS : (J12)
(+) Input to the Remote Sense Amplifier.
DIFF_OUT: (K12)
Output of the Remote Sense Amplifier. This pin connects to the output remote sense point. The This pin connects to the VOUT_LCL pin for remote sense remote sense amplifier can be used for VOUT ≤ 3.3V. Con- applications. Otherwise float when not used. The remote nect to ground when not used. sense amplifier can be used for VOUT ≤ 3.3V.
V – OSNS : (M12)
(–) Input to the Remote Sense Amplifier.
MTP1, MTP2, MTP3, MTP4, MTP5, MTP6, MTP7,
This pin connects to the ground remote sense point. The
(A12, B11, C10, C11, C12, D11, D12):
Extra mounting remote sense amplifier can be used for VOUT ≤ 3.3V. Con- pads used for increased solder integrity strength. Leave nect to ground when not used. floating.
blocK DiagraM
PTC + OTP 499k ~135°C INTVCC – V + OUT_LCL VOUT 400mV 10k V 1M IN PGOOD > 1.4V = ON R1 < 1.1V = OFF MAX = 5V RUN VIN VIN 4.5V TO 20V + 1.5µF R2 5.1V CIN COMP TEMP 60.4k PNP M1 INTERNAL COMP 0.6µH V V OUT OUT SGND POWER 1V CONTROL 20A + VFB M2 10µF COUT fSET RFB GND 90.9k RfSET 50k INTERNAL LOOP 2.2Ω FILTER SGND C SOFT-START TRACK/SS INTVCC MODE_PLLIN + – VOSNS– DIFF 250k – AMP + VOSNS+ INTVCC 2.2µF C DIFF_OUT EXTVCC 4637 F01
Figure 1. Simplified LTM4637 Block Diagram
